Mitutoyo Vernier Caliper A 530-115

Description

The Mitutoyo 530-115 Vernier Caliper has the following specifications:

Range: 0-300mm/0-12″
Accuracy: +/- 0.08mm
Graduation Lower Scale: 0.05mm
Graduation Upper Scale: 1/128″
Remarks: —
Features:

The small vernier face angle (14?) provides easy reading.
Dual reading scales on vernier. (metric/inch and inch models only)
Lock screw for holding the sliding jaw position.
Carbide-tipped jaw type calipers are also available.

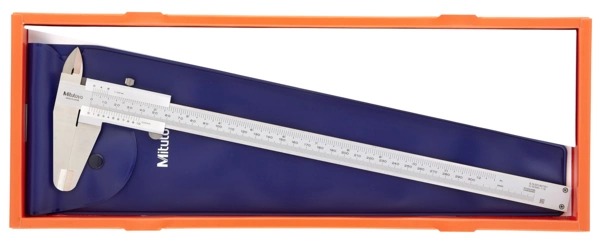

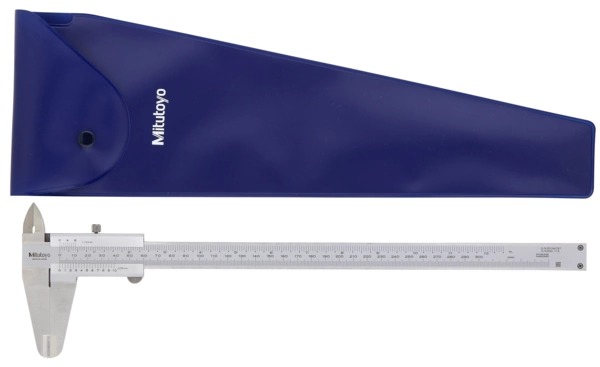

Supplied with vinyl holster in fitted carton. Except 600mm / 24″ models are carton only. 1000mm / 40″ supplied in wooden case.
Technical Data

Graduation: 0.05mm, 0.05mm (1/128″) or .001″ (1/128″)
High accuracy type: 0.02mm or 0.02mm (.001″)
