$1,434.17$1,303.79 Ex. GST

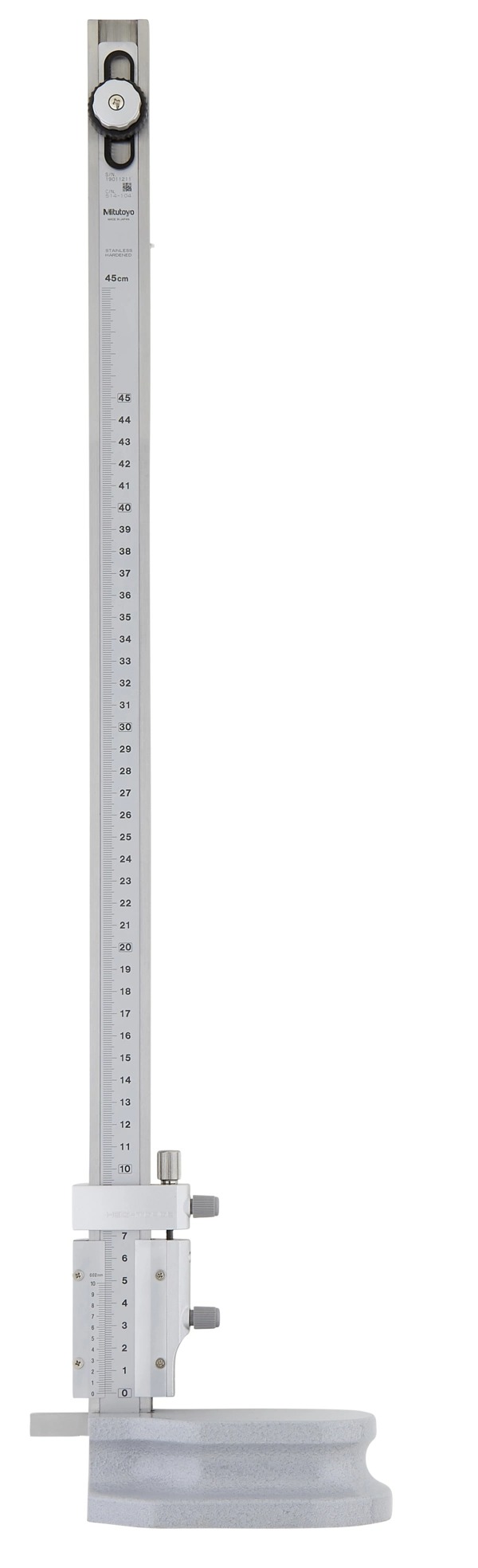

The Mitutoyo 514-104 vernier height gauge has a measurement range of 0 – 450 mm, and is graduated to 0.02 mm, with + or – 0.05 mm of accuracy.
The scriber, used to mark a position on a workpiece, is 32 mm x 80 mm (H x W), carbide-tipped for hardness and to help prolong life, and is held to the gauge by a screw clamp for secure fastening. The grip-base helps hold the unit in position by hand. An adjustable beam with a ring-type lock nut supports repositioning of the zero reference point for manual change of the base position. The slider and beam are made of hardened stainless steel, with a glare-free satin chrome finish that helps resist rust. The height gauge weighs 7.5 lbs/3.4 kg.
A vernier scale provides precise measurement through a second sliding scale that indicates where measurement lies between marks on the main scale. A calibrated screw mechanism supports fine, uniform slider adjustments.
Measurement range of 0 – 450 mm, and graduated to 0.02 mm
Vernier scale for precise measurement
Adjustable zero reference point for manual change of the base position
Hand-operated slider with fine-adjustment carriage for precise feed
Carbide-tipped scriber for hardness and to help prolong life
| Weight | 3.4000 kg |
|---|---|
| Dimensions | Length 79.2cm x Width 30cm x Depth 17.81cm |
| barcode | |
| Additional Information | Digital/Analog: Analog |
