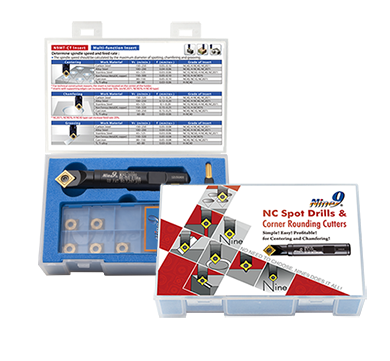

Nine9 – Starter package with 6 pcs TiAlN inserts & Key N9MT11T3CT-NC40 NC40 Grade carbide : Wiper design, universal grade for all unhardened steel. Each insert has 4 cutting edges.

Description

NC40 :
Wiper design, universal grade for all unhardened steel.

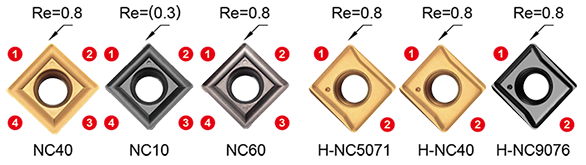

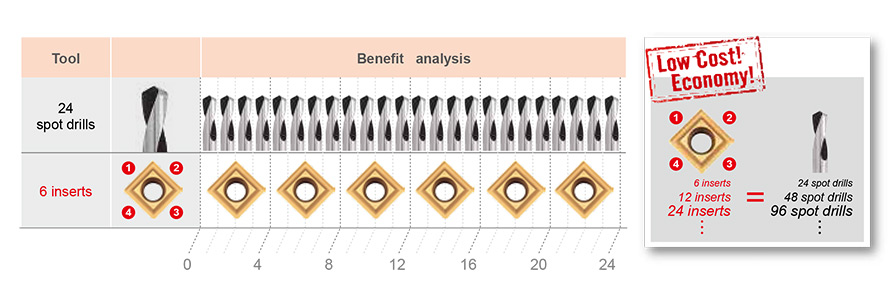

Each insert has 4 cutting edges.

Max. Hole: Ø14mm (0.551”).

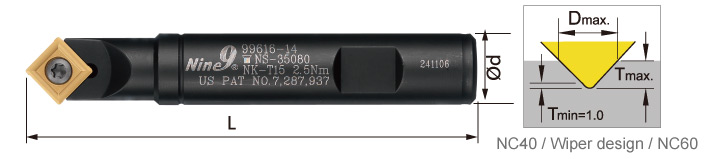

Tool holder: 99616-14 series with 90 degree indexable carbide insert: N9MT11T3

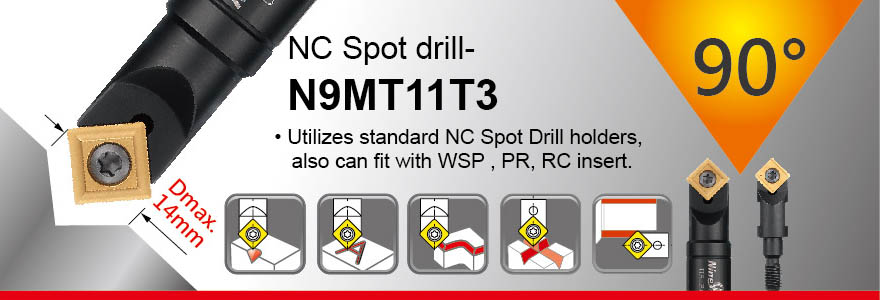

• Utilizes standard NC Spot Drill holders, also can fit with WSP ( combined spotting and chamfering 145°+90° ) , PR insert ( 60° center hole similar to DIN 332 Form R ), Corner Rounging insert.
• Applications : • Spotting, engraving, grooving and chamfering on milling machines, machining centers.
• Spotting, facing on CNC Lathes.
