NOGA GRANITE BASE STAND & DG ARTICULATED HOLDER

Description

GRANITE BASE STAND & DG ARTICULATED HOLDER NOGA
Grantite Base Stand
NOGA Granite Base Stand
Granite Base Stand & DG Articulated Holder Noga
Articulated holders with fine adjustment on top.

Solid 3D articulated holder with central locking system with NOGA designed spring loaded bearing mechanism.
Fine adjustment on top with universal swivel clamp.
Holds 6mm, 8mm, 3/8” and dovetail.
Fast and easy to set up gauges into required position.
Black finished arms.
Over the years the pursuit for higher standards has lead modern industry to perform more rigorous inspections of their products. NOGA Granite Base Stands provide an easy, accurate and reliable way for you to inspect your products.

NOGA Granite Base Stands are made with high quality hardened granite which provide you with:

High precision and stability, resistant to distortion, and guarantees accuracy
No rust or anti-corrosion – no need of special maintenance
Wear resistant – provides you with a long service life
Non magnetic material
Flatness ≤2 μm – Standard DIN 876 Grade 00

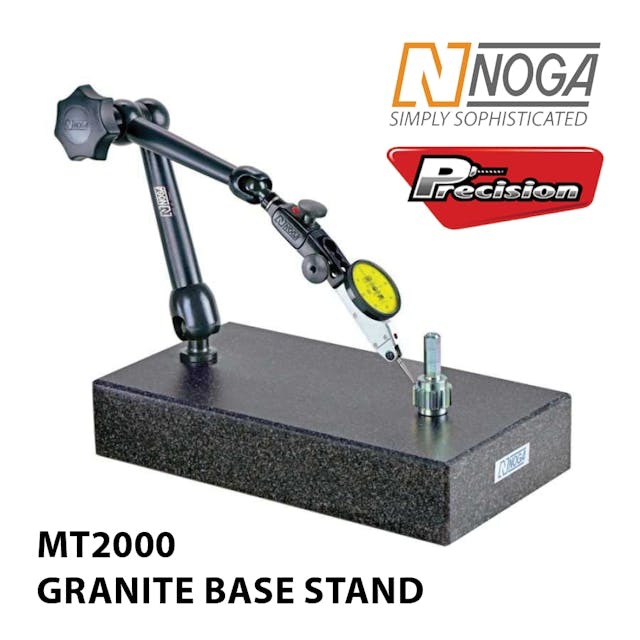

MT2000 Features DG60103 Articulated Arm (282mm total length, Ext M8 Thread) and MT1000 Base (L150 X W100 X H50mm)

MT2100 Features MG60103 Articulated Arm (317mm total length, Ext M8 Thread) and MT1100 Base (L200 X W150 X H50mm)

NOGA Granite Base stands come with high quality aluminium carrying case.

Noga NF1000 Test Indicator and DG1000 Dial Gauge Sold Separately
