$86.15$78.32 Ex. GST

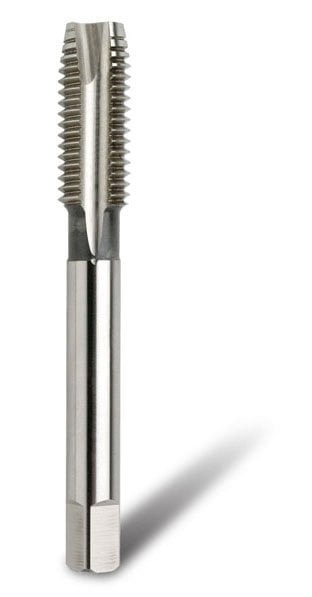

10 x 1mm STI HSS Cobalt MF Spiral Point Tap
Metric Fine.
HSS-Co Spiral Point (Gun Nose) 4H5H Tolerance Screw Thread Insert (STI) Tap.
PowerCoil wire thread inserts are installed into oversize tapped holes.
Only PowerCoil STI (Screw Thread Insert) Taps are suitable for use with PowerCoil Wire Thread Inserts.
STI Taps have a larger diameter, than standard taps, but the same pitch to accommodate the wire thread insert. Once the insert is installed in the tapped hole it creates the desired internal thread tolerance for the installed bolt or stud.
Category: Threaded Inserts, PowerCoil , STI Taps, Machine Taps, Metric Fine
Pitch (mm): 1
Lead: Spiral Point
| Weight | 0.0440 kg |
|---|---|
| Dimensions | Length 11cm x Width 1.5cm x Depth 1.5cm |
| barcode | 9326518072539 |
| Additional Information |
