$58.00$52.73 Ex. GST

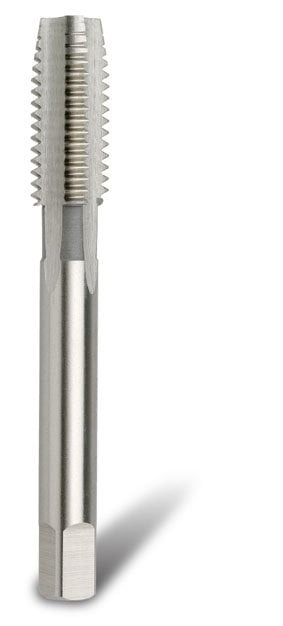

12G x 28 STI UNF Intermediate HSS Tap
Unified National Fine (UNF)
HSS Intermediate Lead 3B Tolerance Screw Thread Insert (STI) Tap.
PowerCoil wire thread inserts are installed into oversize tapped holes.
Only PowerCoil STI (Screw Thread Insert) Taps are suitable for use with PowerCoil Wire Thread Inserts.
STI Taps have a larger diameter, than standard taps, but the same pitch to accommodate the wire thread insert. Once the insert is installed in the tapped hole it creates the desired internal thread tolerance for the installed bolt or stud.
Category: Threaded Inserts, PowerCoil , STI Taps, Straight Flute Taps, UNF
Pitch (tpi): 28
Lead: Intermediate
| Weight | 0.0227 kg |
|---|---|
| Dimensions | Length 10cm x Width 1cm x Depth 1cm |
| barcode | 9326518107569 |
| Additional Information |
