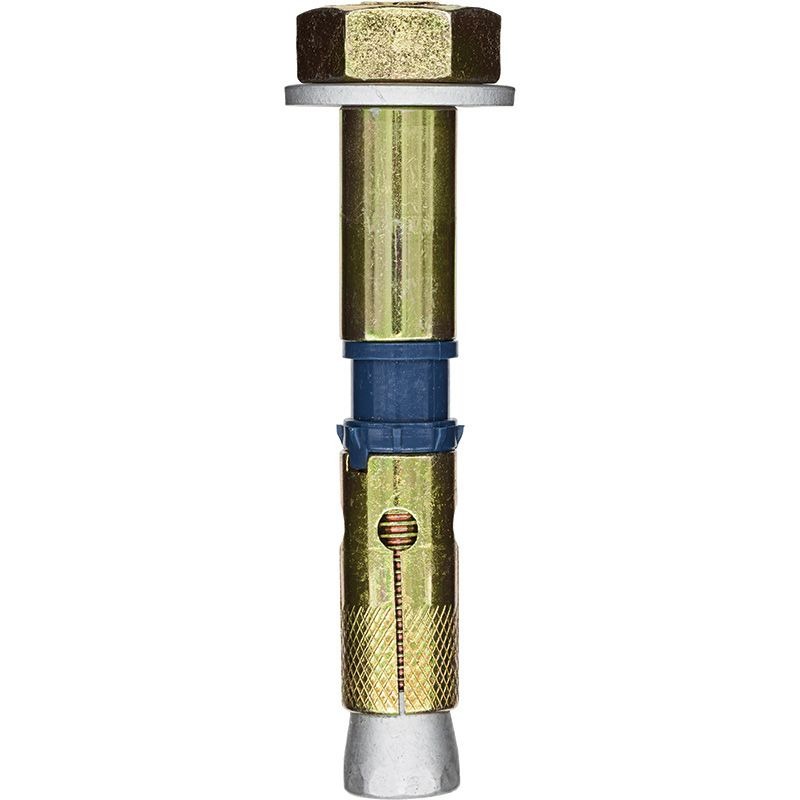

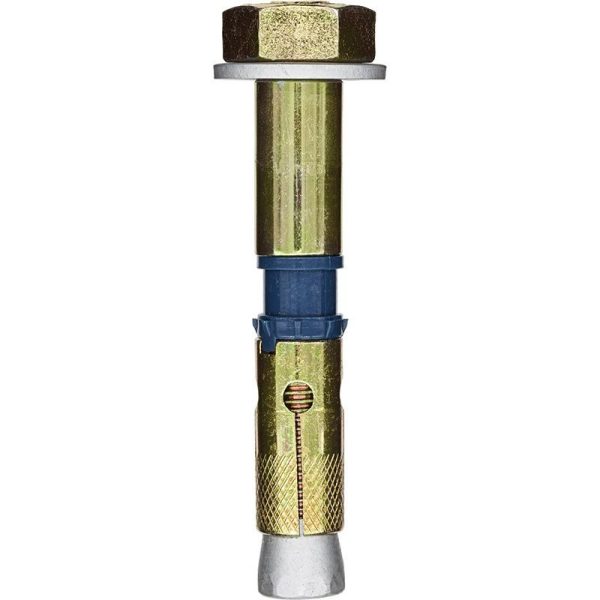

POWERS – ANCHOR, PBI BRACING LARGE HEAD M14 x 115mm [10]

Description

Heavy Duty Bracing Expansion Anchors

The PBI anchor is a high performance load controlled, thick sleeve expansion anchor. It is designed for use in bracing shoes (foot plates) for temporary bracing of prefabricated tilt-up concrete panels during construction.

FEATURES & BENEFITS
30mm hex head for added convenience – can be set with same socket as M20 pre-cast ferrule bolts
Heavy-duty large diameter washer providing increased bearing against fixture
Nylon compression ring ensures positive grip of anchor in drilled hole, and fixture clamp-down against base material for dynamic loading conditions
Thick expansion sleeve generates high slip-resistance and maximum lateral wedging effect in drilled hole
Serrated, hardened cone with optimum geometric design for maximum anchor expansion
M14 Class 8.8 bolt ensures high performance

SPECIFICATIONS
Size: M14
Length: 115
Min Embedment Depth: 95
Max Fixture Thickness: 20
Drilled Hole Ø: 20
Socket Size: 30

USAGE & APPLICATIONS
Bracing of precast and tilt-up concrete panels
