POWERS – ANCHOR STUD, KEMFIX GAL 10 x 130mm [10]

Description

Threaded Anchor Fixings

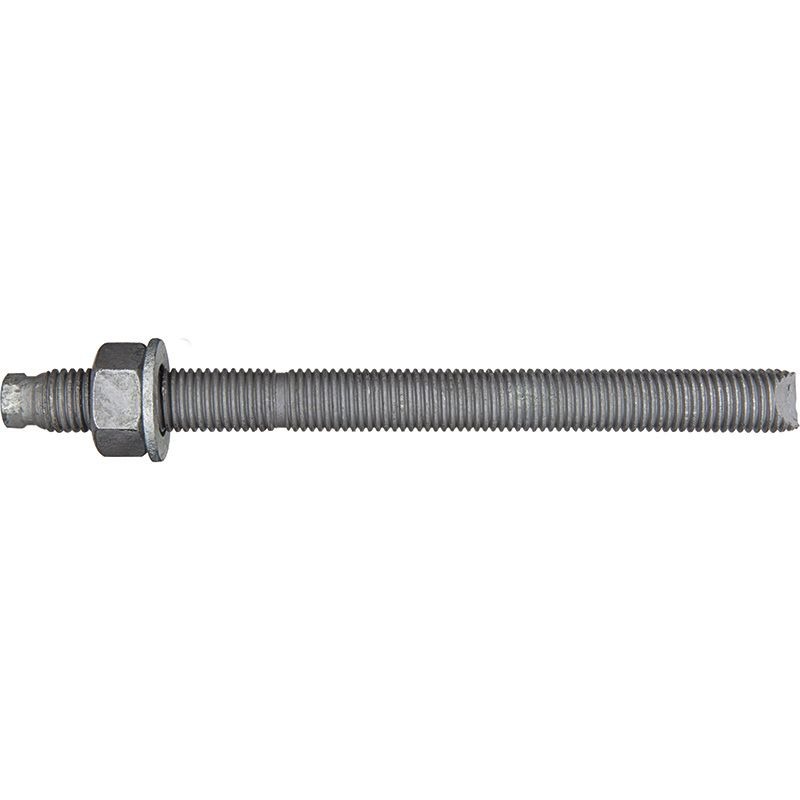

STM™ chisel point studs are a high performance grade 5.8 carbon steel adhesive anchor stud suitable for standard embedment depth applications. Studs are supplied complete with nut and washer and are used with glass capsule adhesive systems.

FEATURES & BENEFITS
Suitable for use with Powers SC-PRO capsules or any adhesive injection system
Depth set mark for accurate embedment depth
External hex head for stability when driving the stud in glass capsule
Made from quality 5.8 Grade carbon steel

SPECIFICATIONS
Size: M10
Length: 130
Min Embedment Depth: 90
Max Fixture Thickness: 21
Socket Size: 7

USAGE & APPLICATIONS
Hot Dipped Galvanise for external applications
