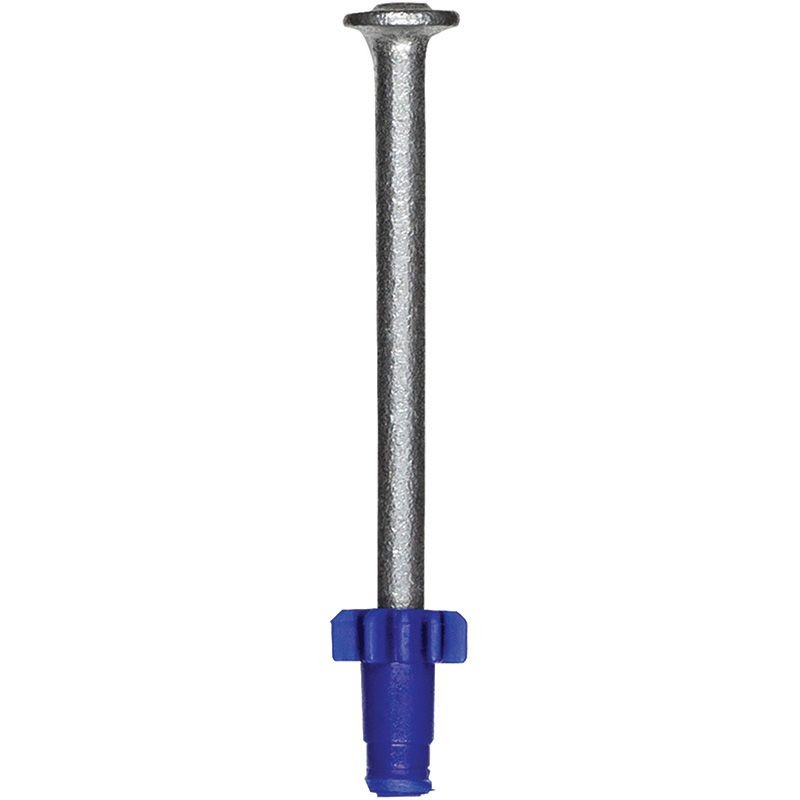

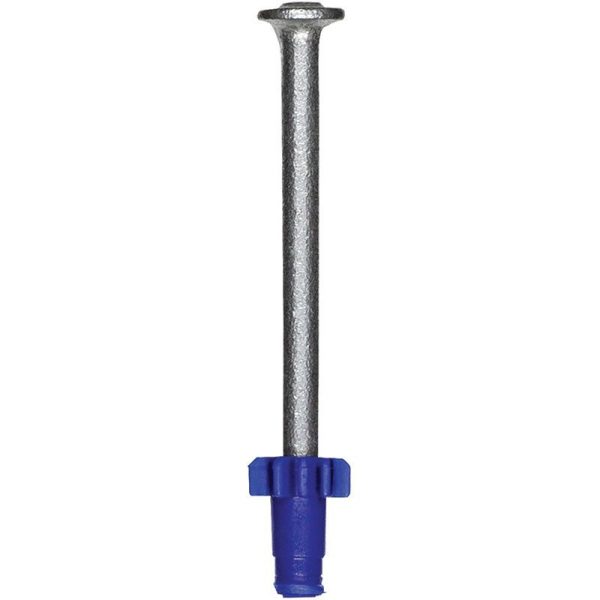

POWERS – PIN 8mm DRIVE 3.7 x 65mm [100]

Description

Powder Actuated Drive Pins – Suits P3X & PA3500EX

Drive pins with an 8mm diameter head are designed for permanently fastening a fixture to concrete, some types of masonry and A36 structural steel. Knurled shank designs are available to increase performance in steel base materials. A plastic flute is mounted over the point to retain the drive pin in the fastener guide of the tool providing guidance during the driving operation. Compatible with most low-velocity powder actuated tools

FEATURES & BENEFITS
Compatible with most low-velocity powder actuated tools

SPECIFICATIONS
Length: 65
Pin Ø: 3.7
Head Ø: 8
Max Fixture Thickness (3mm Steel): 56*
Max Fixture Thickness (Concrete): 49

USAGE & APPLICATIONS
Drive pins with an 8mm diameter head are designed for permanently fastening a fixture to concrete, some types of masonry and A36 structural steel
