POWERS – SCREW BOLT, BLUE-TIP 2, GALV DOME HD, 6 x 50mm SEISMIC[100]

Description

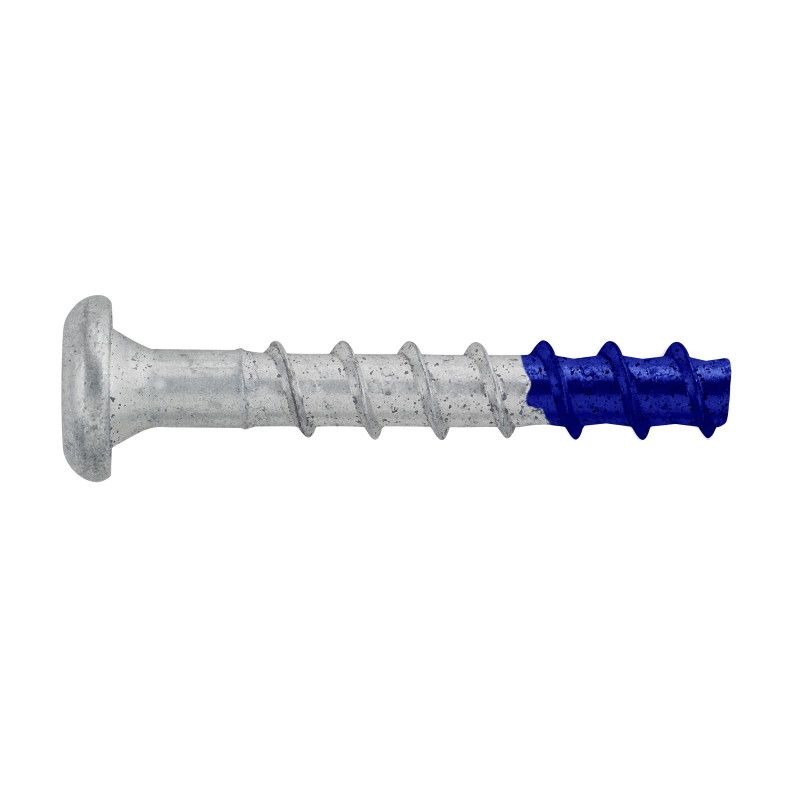

100 x Blue-Tip 2 DOME Galvanised Screw Bolts 6x50mm

Dome Head Blue -Tip 2 SCREW-BOLT™ anchor is a one piece, heavy duty screw anchor.͍It is simple to install, easy to identify and fully removable. The thread design is designed for use with standard size drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances.

FEATURES & BENEFITS
Dome Head Torx Drive Galvanised corrosion resistant
ETA approved for cracked and uncracked concrete
ETA approved for seismic loading
ETA approved for redundant non-structural applications
F120 fire rated
​Removable and vibration resistant
Low installation torque
Fast installation with immediate high strength loading

Specifications
Size: 6mm
Length: 50mm
Nomincal Embedment Depth: 40mm
Maximum Fixture Thickness: 10mm
Drilled Hole: 6mm
Drive Type: T30

Application
Attaching steel / timber to concrete, ventilation systems, racking and shelving, temporary supports, fencing, railings, stadium seating, base plates, substructures, windows and door frames, scaffolding, facade.
