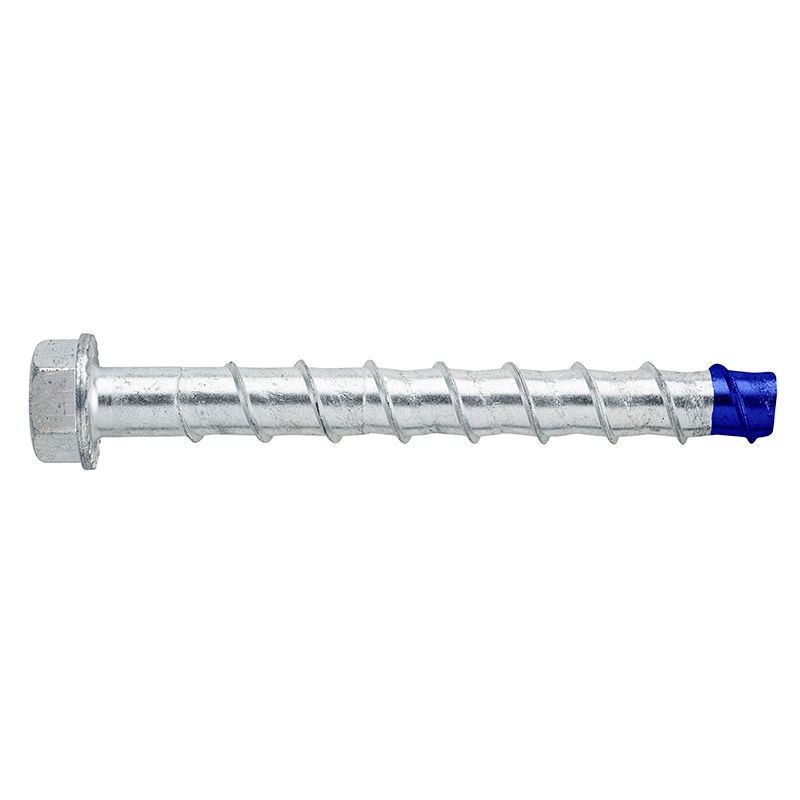

POWERS – SCREW BOLT, BLUE-TIP 2, GALV HEX HD, 10 x 120mm SEISMIC[25]

Description

Medium Duty Thread Forming (Screw) Anchors – Hex Head

The BLUE-TIP 2 SCREW-BOLT™ and HANGERMATE™ is a state-of-the-art product line of heavy duty screw anchors which is available with a wide variety of head types. The NCC-approved range boasts products designed for use in extreme environmental conditions such as seismic, fire and high wind loading. The anchors one piece design makes it is easy to install and the preferred choice for fast but reliable anchoring which is also fully removable. This anchor is designed to resist structural and nonstructural loading in cracked and uncracked concrete. The patented thread design has been designed for use with standard drill bits, reduces installation torque and enhances productivity.
FEATURES & BENEFITS
FAST INSTALLATION: Compatible with impact wrenches. Anchor design allows fast installation with powered impact wrenches
SMALL EDGE DISTANCE INSTALLATION: Install closer to concrete edge that traditional anchors. 1 piece nonexpansion construction allows anchors to be installed closer to concrete edge and other anchors
HEAD RATCHET TEETH: Increased protection against back-out Provides strong and secure lock-down against fixture
IMPROVED HEAD MARKING: Clear, intuitive markings Easy identification of size and approval both pre and post installation
ONE PIECE DESIGN: Easy installation Simple, quick installation. No anchor assembly or pre-setting required
ENGINEERED STEEL: Effective installation into tough substrates. Designed to cut through hard concrete and maintain ductility
LOW INSTALLATION TORQUE: Dust relief thread profile Improves speed & reduces effort for faster installation

SPECIFICATIONS
Size: 10
Length: 120
Nominal Embedment Depth: 60 / 85
Socket Size: 17
