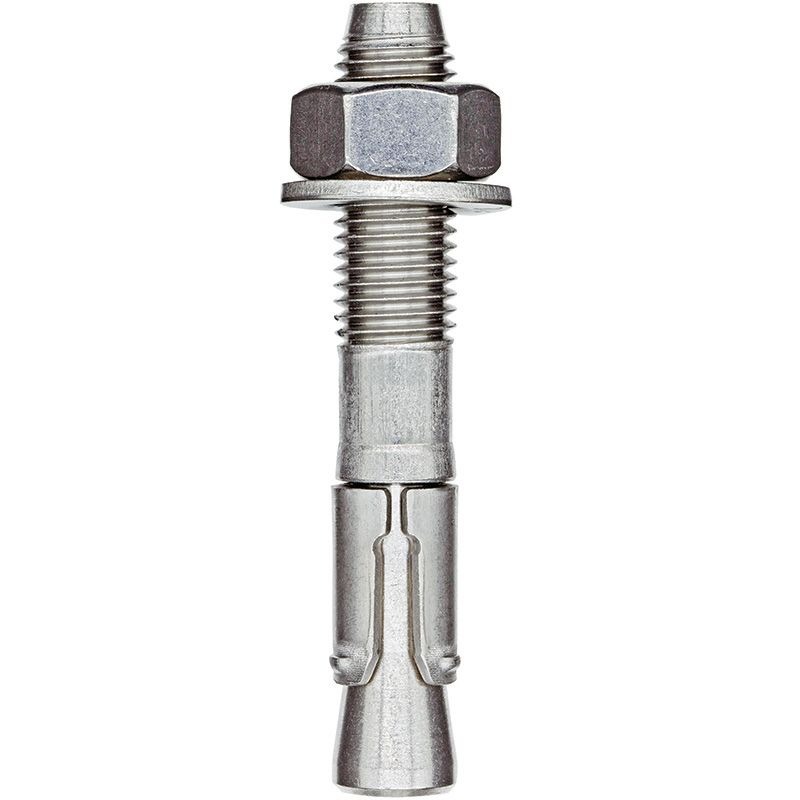

POWERS – THROUGH BOLT EXPANSION ANCHOR PTB-ETA1-PRO, 10 x 100mm [50]

Description

Heavy Duty Expansion Anchors

The PTB-ETA1-PRO throughbolt is a fully threaded, torque controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete. The anchor is easy to install and suitable for a variety of base materials with a nominal drill bit size the same as the anchor diameter. The wide range of available PTB-ETA1-PRO anchor sizes also covers all common capacity demands with a superior load-displacement response that qualifies the PTB-ETA1-PRO throughbolt for both standard and adverse loading conditions.

FEATURES & BENEFITS
Special cone angle and hardened clip design for quick installation and high loads
Chamfered top for thread protection
Nominal drill bit size is same as the anchor diameter
Can be installed through standard fixture holes
Fully threaded bolt for highest flexibility
Two approved embedment depths allows multiple fixture thicknesses (M12 and M16)

SPECIFICATIONS
Size: 10
Length: 120
Min Embedment Depth: 71
Max Fixture Thickness: 40
Drilled Hole Ø: 10
Socket Size: 17

USAGE & APPLICATIONS
Steel construction, piping and heating supports, heating pumps, ventilation systems, air conditioning, safety barriers, fire escapes, machines, substructures
ETA approved – refer to relevent ETA documentation
F120 Fire Resistance report
Seismic Loading approval (C1: M8-M16, C2: M12)
