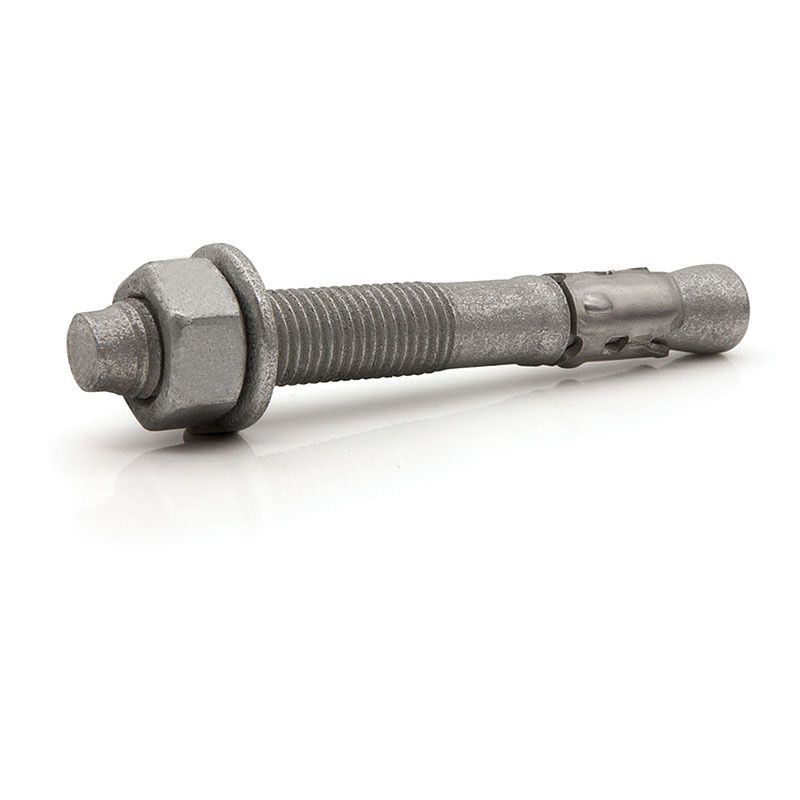

POWERS – THROUGH BOLT, PTB-G-ETA1-PRO GAL, M20 x 120mm [10]

Description

Heavy Duty Expansion Anchors

The PTB-ETA1-PRO throughbolt is a fully threaded, torque controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete. The anchor is easy to install and suitable for a variety of base materials with a nominal drill bit size the same as the anchor diameter. The wide range of available PTB-ETA1-PRO anchor sizes also covers all common capacity demands with a superior load-displacement response that qualifies the PTB-ETA1-PRO throughbolt for both standard and adverse loading conditions.

FEATURES & BENEFITS
High performance Through Bolt (PTB) features a stronger 3 piece expander sleeve
Suitable for pre installation or through fixing, the PTB requires minimal effort to set
Strong 3 piece expander sleeve provides easy torque setting at optimal number of turns
Chamfered top for thread protection

SPECIFICATIONS
Size: M20
Length: 120
Max Fixture: 5
Socket Size: 30
Min Embed: 70
Torque (Nm): 115

USAGE & APPLICATIONS
Steel construction, profiles, machinery, substructures, high-racks, piping and heating supports, ventilation systems, air conditioning, safety barriers, railings
F120 Fire Report
