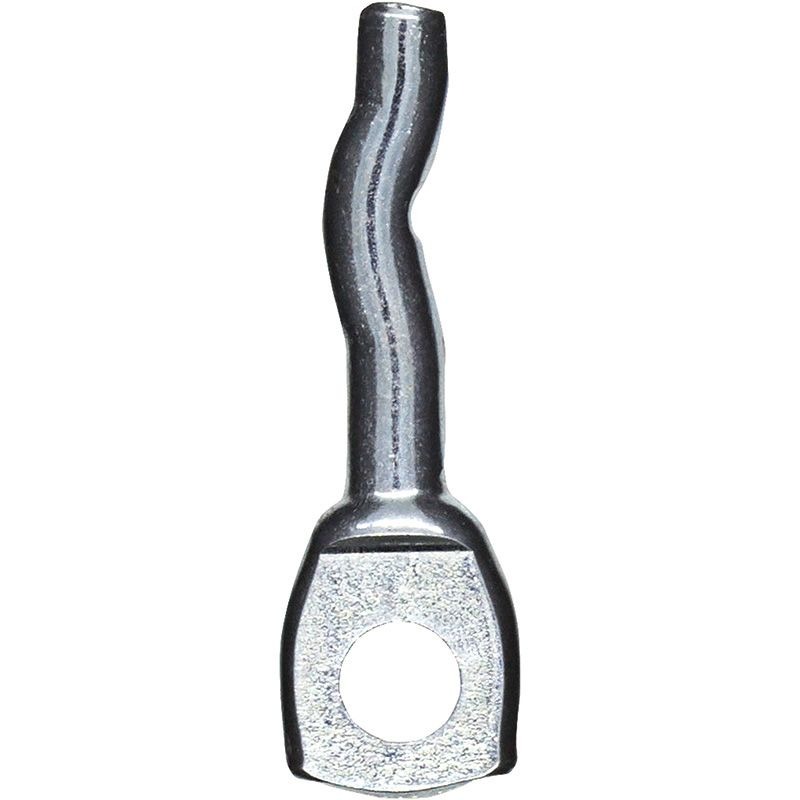

POWERS – TIE WIRE SPIKE 6.5mm [100]

Product Code: POWTW3759-PWR

$154.61$140.55 Ex. GST

Product Code: POWTW3759-PWR SKU POWTW3759-PWR Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Light Duty Suspension Anchors

The Tie wire SpikeĀ® is a special design anchor ideal for suspending wire or rod for ceiling and partitioning applications. Formed with an s-shaped spike configuration to create a pre-expanded expansion mechanism which is activated as the anchor is driven into the drilled hole, creating a spring-type compression force.

FEATURES & BENEFITS
One-piece, vibration resistant anchor
Pre-expanded anchor design allows for easy installation
Made from 8.2 grade steel

SPECIFICATIONS
Size: 6.5
Length: 32
Eyelet Ƙ: 7
Min Embedment Depth: 32
Drilled Hole Ƙ: 6.5
USAGE & APPLICATIONS
Suspended ceiling and partitioning applications

Additional information

Dimensions Length 3.2cm x Width cm x Depth cm
barcode
Additional Information

Part Number: POWTW3759-PWR
Brand: Powers
Size (mm): 6.5
Length (mm): 32
Drilled Hole Ćø (mm): 6.5
Min Embedment Depth (mm): 32
Pack Quantity: 100
Unit of Measure: Box
Vendor Part Number: TW3759-PWR
Individual Carton Dimension Length (cm): 100
Individual Carton Dimension Width (cm): 7.4
Individual Carton Dimension Height (cm): 7.8
Individual Carton Dimension Weight (kg): 1.34

Brand

POWERS
