POWERS – TOOL, .27CAL SEMI-AUTOMATIC POWDER ACTUATED

Description

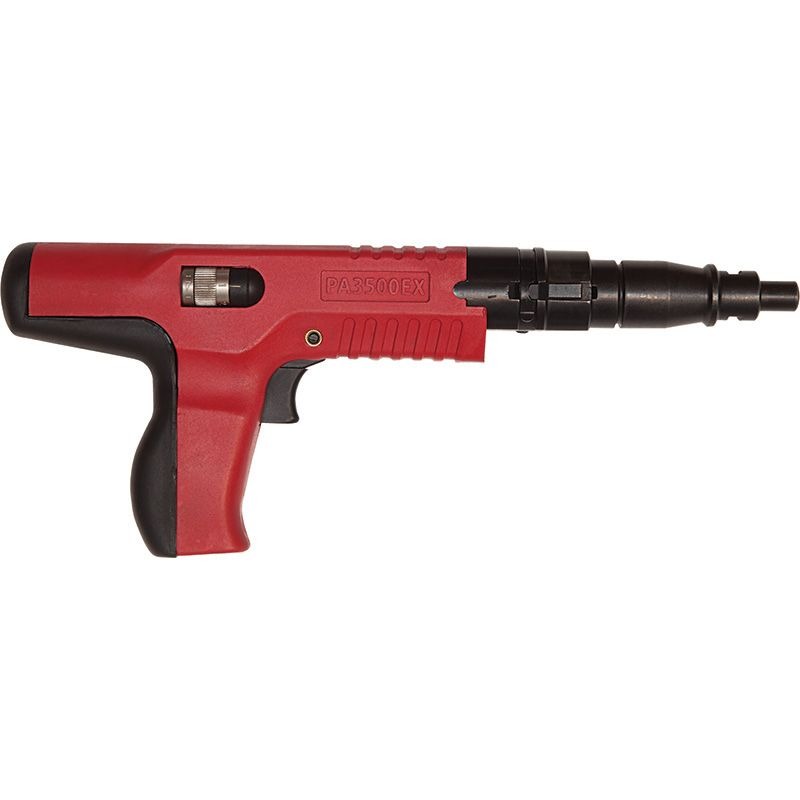

.27 Caliber Powder Actuated Fastening Tool

The PA3500EX is a high quality, high powered, low velocity, .27 caliber semi-automatic tool designed for high speed and repetitive volume applications. The power adjustment mechanism allows the user to adjust the penetration of the pin through the fixture ensuring a precise fixing. A red load can be reduced down to the level of a green load. To minimize the effects of recoil and powder adjustment, the heavy-duty tool body is constructed from an engineered plastic with an impact resistant rubber handle pad. Sold separately, the PA3500EX Insulation Fastener Guide adapts the tool to shoot 25 to 100mm insulation fasteners.Safety is the user’s primary responsibility when operating any powder actuated tool. Read the product manual prior to use, and be familiar with all functional and safety requirements of the tool. It is the users responsibility to obtain proper training in accordance with AS / NZS 1873.1:1994. The PA3500EX complies with Design and Construction Requirements of AS / NZS 1873.2:2003. It operates using the indirect-acting piston principle in which an internal drive piston impacts the fastener to drive it into the base material.

FEATURES & BENEFITS
Power adjustment dial for precise penetration into all base materials
Fires pins from 16-75mm (single shot)
Drop flight safety mechanism prevents misfiring if tool is dropped
Free flight safety – can only be fired if the barrel is fully depressed against the work surface

SPECIFICATIONS
Size: 346mm
Weight: 2.3kg
Charge: .27 Calibre 10 Load Strip
Power Level: Green (3), Yellow (4), Red (5)
Pin Size: 8mm Head
Pin Length: 16-75mm

USAGE & APPLICATIONS
Conduit clip, electrical fixtures, concrete form work, commercial/residential construction, metal track
