PRAMET 075A2R114C075-ISAD11E-C Milling cutters with clamping by screw

Product Code: 075A2R114C075-ISAD11E-C

$475.86$432.60 Ex. GST

Product Code: 075A2R114C075-ISAD11E-C SKU 075A2R114C075-ISAD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

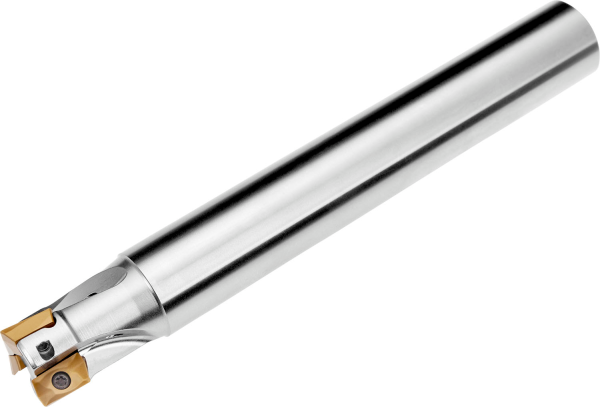

Shoulder mill with positve/negative geometry which utilises 2 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter .750″ with 90° approach angle and .750″ parallel shank according to DIN 1835A, 1.142″ functional and 5.906″ overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354″

Additional information

Weight 0.462 kg
Dimensions Length 15cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
Product name: 075A2R114C075-ISAD11E-C
Ordering code ANSI: 075A2R114C075-ISAD11E-C
Product number (SAP): 86021375
EAN number: 3603602984678
Product Line: FORCE AD
Cutting diameter – millimeter (DC): 19.1 mm
Cutting diameter – inch (DC): 0.75 inch
Cutter Design: SAD11E
Axial rake angle (GAMP): 5
Connection diameter – inch (DCON MS): 0.75 inch
Connection diameter – millimeter (DCON MS): 19.1 mm
Overall length – inch (OAL): 5.906 inch
Overall length – millimeter (OAL): 150 mm
Peripheral effective cutting edge count (ZEFP): 2
Radial rake angle (GAMF): -11.5
Rotational speed maximum (RPMX): 27000
Usable Length – inch (LU): 1.142 inch
Usable Length – millimeter (LU): 29.01 mm
Gross weight – grams: 310.2
ISO: 075A2R114C075-ISAD11E-C

Brand

PRAMET
