PRAMET 08K2R025A10-SRC08-A Milling cutters for D&M

Description

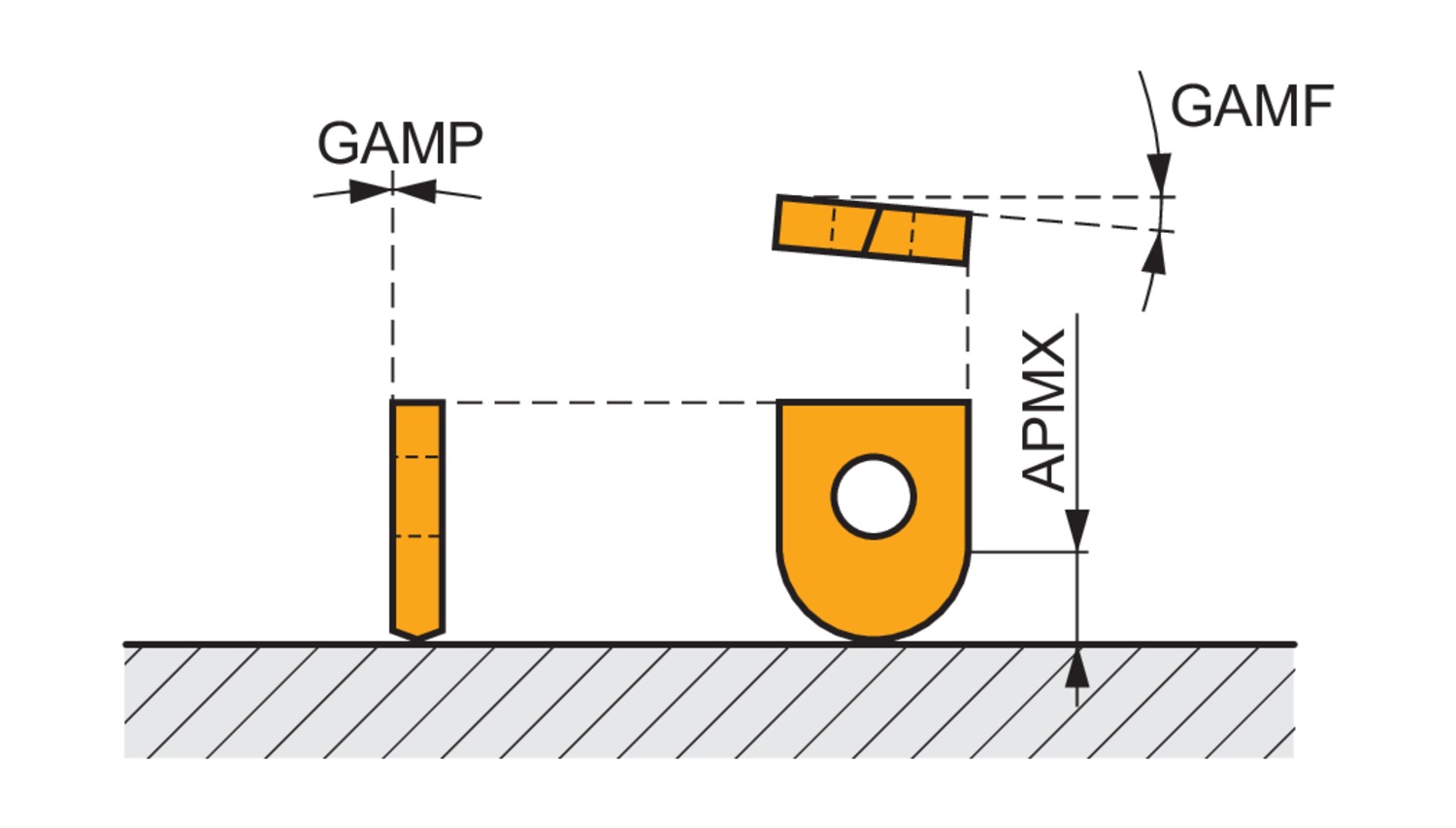

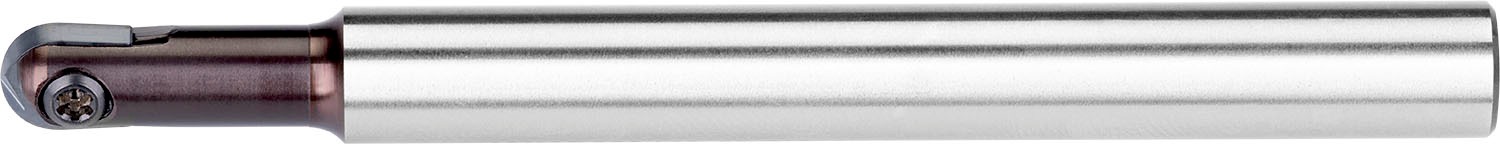

Copy end mill which utilises 1 of RC 08, RC 08-F, LC 08-KP or LC 08-KPF single-sided insert, cutting diameter 8mm with 10mm parallel shank according to DIN 1835A, 25mm functional and 110mm overall length for copy milling with a maximum depth of cut of 0.6-3.2mm

Additional information

Weight	0.2398 kg
Dimensions	Length 11cm x Width cm x Depth cm
barcode
Additional Information	Description: Value EAN number: 3603602920560 Product number (SAP): 84000903 Ordering code ANSI: 08K2R025A10-SRC08-A Gross weight – grams: 83.4 Cutting diameter maximum – millimeter (DCX): 8 mm Overall length – millimeter (OAL): 110 mm Connection diameter – millimeter (DCON MS): 10 mm Body diameter – millimeter (BD): 7.5 mm Usable Length – millimeter (LU): 25 mm Peripheral effective cutting edge count (ZEFP): 2 Rotational speed maximum (RPMX): 56000 Net weight – grams: 80 Insert index count (NOI): 1 ISO: 08K2R025A10-SRC08-A
