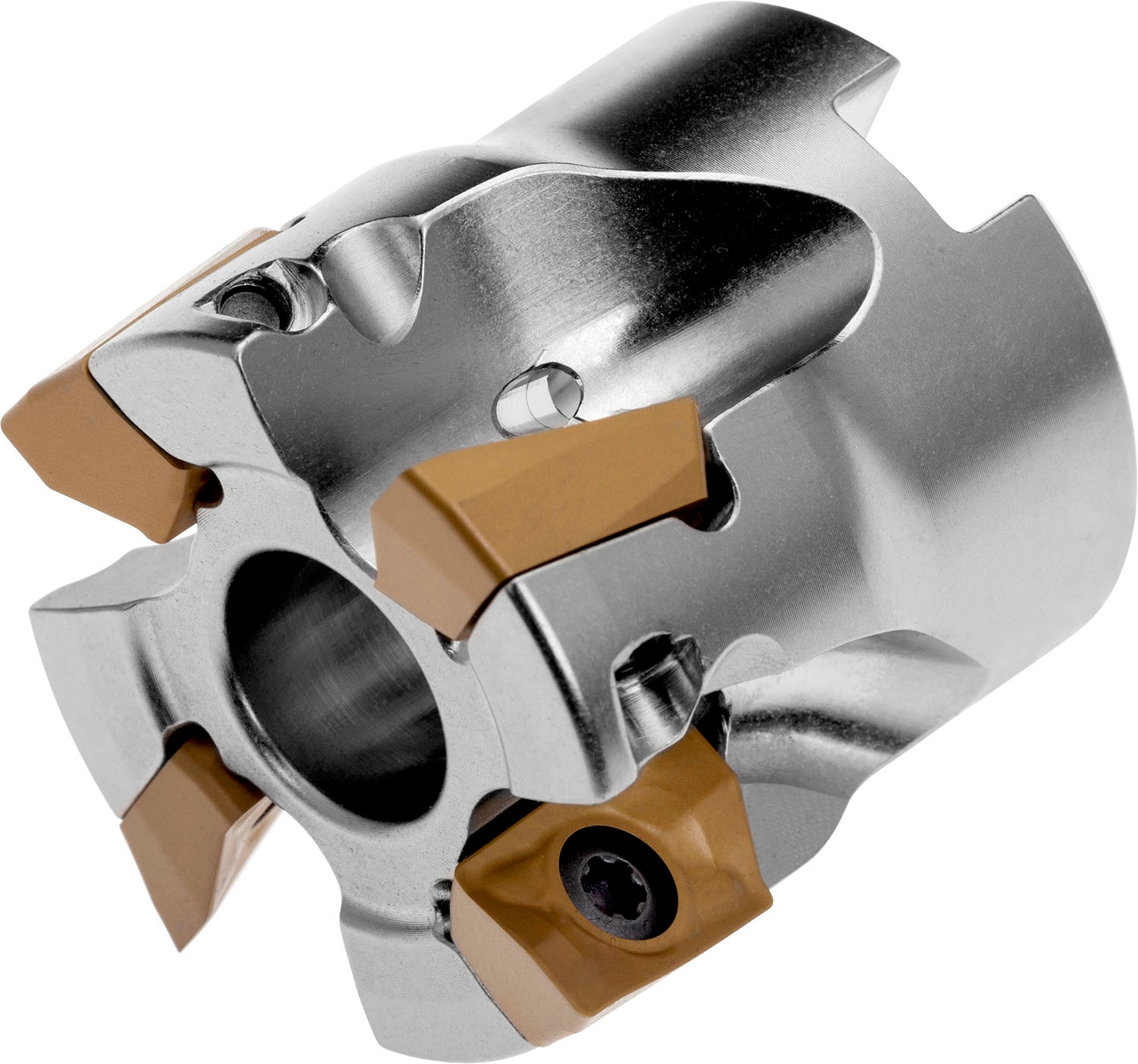

PRAMET 100A06R-S90AD16E-C Milling cutters with clamping by screw

Description

Shoulder mill with positve/negative geometry which utilises 6 of ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 100mm with 90° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight	1.199 kg
barcode
Additional Information	Description: Value EAN number: 3603602955333 Product number (SAP): 86000414 Ordering code ANSI: 100A06R-S90AD16E-C Product Line: FORCE AD Gross weight – grams: 1844.3 Cutting diameter – millimeter (DC): 100 mm Connection diameter – millimeter (DCON MS): 32 mm Counterbore diameter connection bore – millimeter (DCCB): 45 mm Functional length – millimeter (LF): 50 mm Connection size code machine side (CZC MS): – Keyway width – millimeter (KWW): 14.4 mm Keyway depth – millimeter (KWD): 8 mm Radial rake angle (GAMF): -4 Axial rake angle (GAMP): 12 Peripheral effective cutting edge count (ZEFP): 6 Cutting pitch differential (CPDF): Yes Rotational speed maximum (RPMX): 9300 Net weight – grams: 1840 Cutter Design: SAD16E Insert index count (NOI): 6 ISO: 100A06R-S90AD16E-C

PRAMET 100A06R-S90AD16E-C Milling cutters with clamping by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
