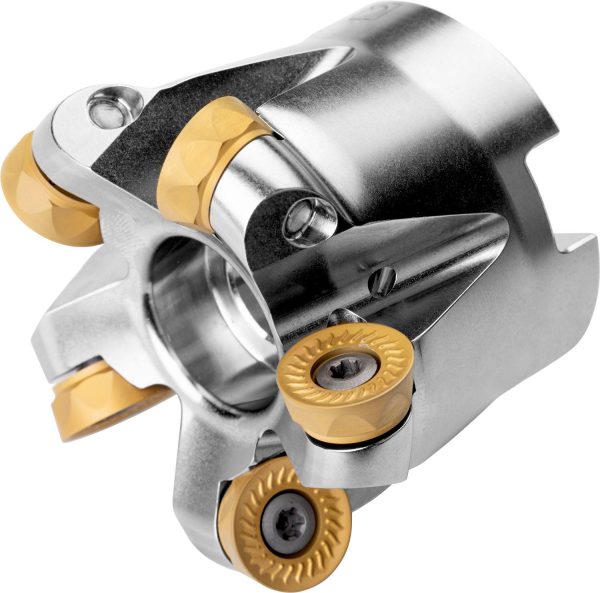

PRAMET 100A06R-SMORC16-C Milling cutters for D&M

Description: Value
EAN number: 3603603162082
Product number (SAP): 86027399
Ordering code ANSI: 100A06R-SMORC16-C
Gross weight – grams: 1178.8
Cutting diameter maximum – millimeter (DCX): 100 mm
Cutting diameter – millimeter (DC): 84 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -1.7
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 6
Rotational speed maximum (RPMX): 7700
Net weight – grams: 1080
Cutter Design: SRC16
Insert index count (NOI): 6
ISO: 100A06R-SMORC16-C
