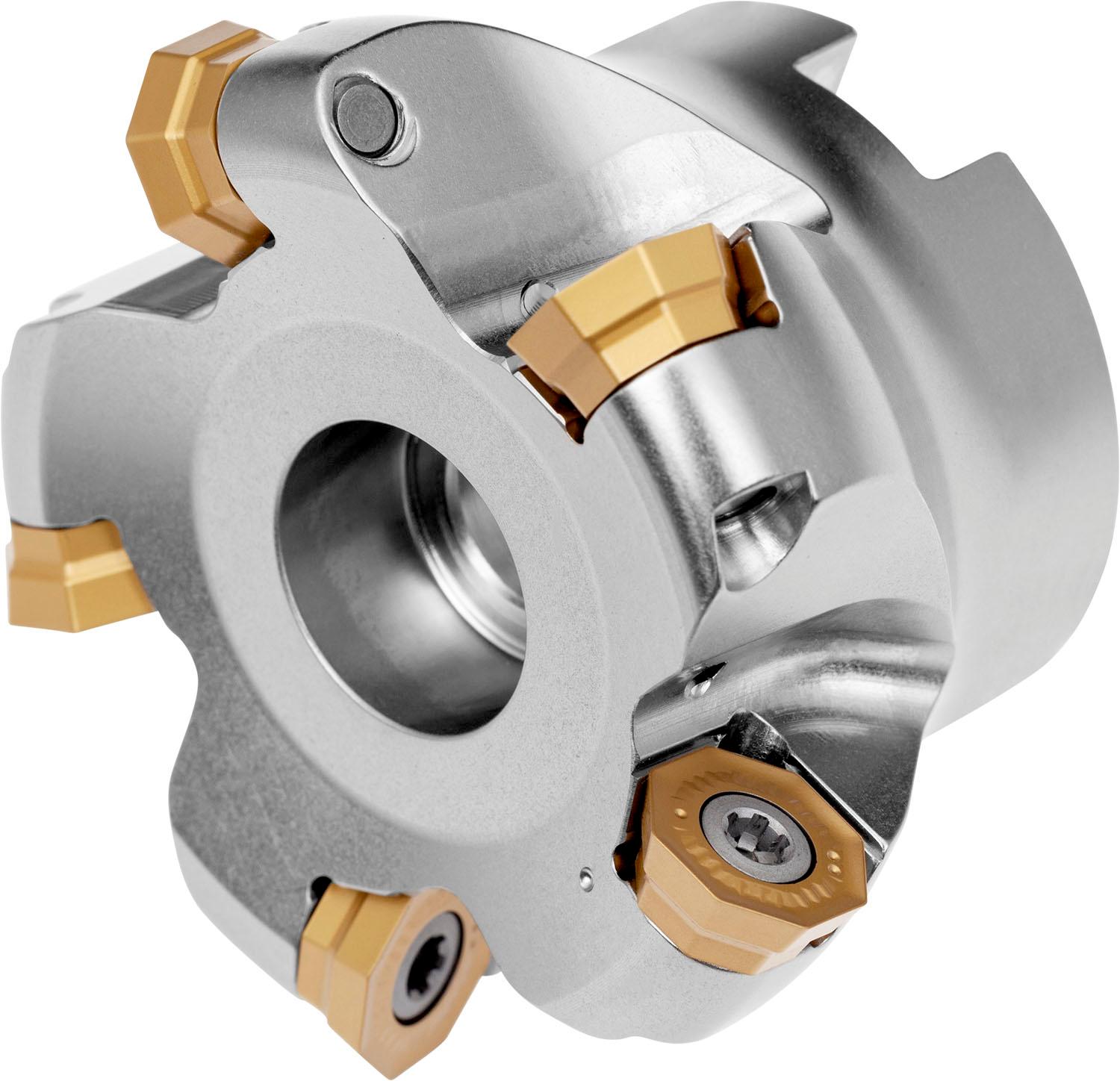

PRAMET 100A07R-S45OD05-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603603288089
Product number (SAP): 86031412
Ordering code ANSI: 100A07R-S45OD05-C
Gross weight – grams: 1182
Cutting diameter maximum – millimeter (DCX): 100 mm
Cutting diameter – millimeter (DC): 92.6 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Functional length – millimeter (LF): 50 mm
Tool cutting edge angle (KAPR): 45
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 7
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 10000
Net weight – grams: 1088
Cutter Design: SOD05
Insert index count (NOI): 7
ISO: 100A07R-S45OD05-C
