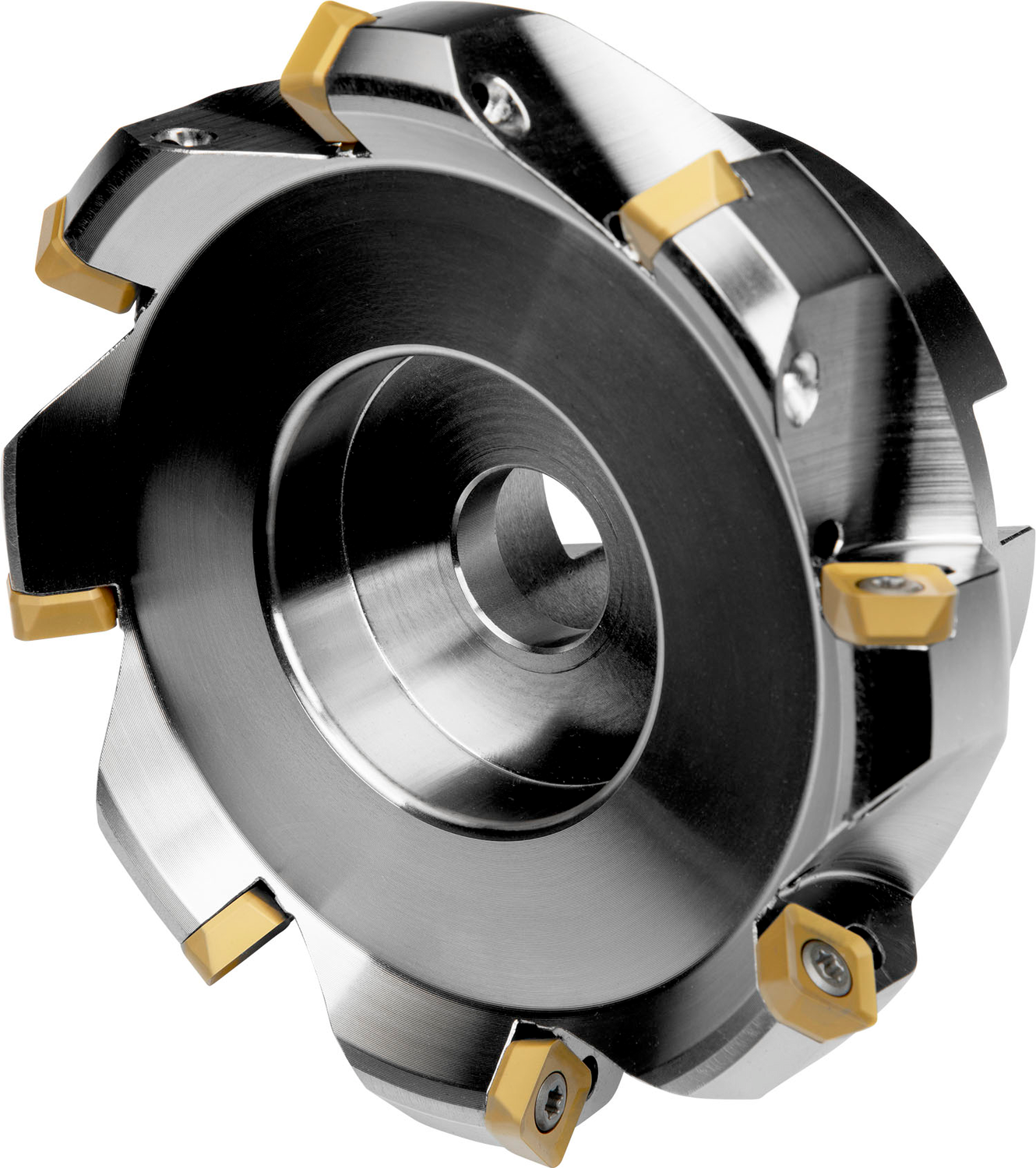

PRAMET 100A07R-S45SN12Z-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602936882
Product number (SAP): 84004773
Ordering code ANSI: 100A07R-S45SN12Z-C
Gross weight – grams: 1753.4
Cutting diameter – millimeter (DC): 100 mm
Cutting diameter maximum – millimeter (DCX): 115 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -5.5
Axial rake angle (GAMP): 7.5
Peripheral effective cutting edge count (ZEFP): 7
Rotational speed maximum (RPMX): 6900
Net weight – grams: 1697
Cutter Design: SSN12Z
Insert index count (NOI): 7
ISO: 100A07R-S45SN12Z-C
