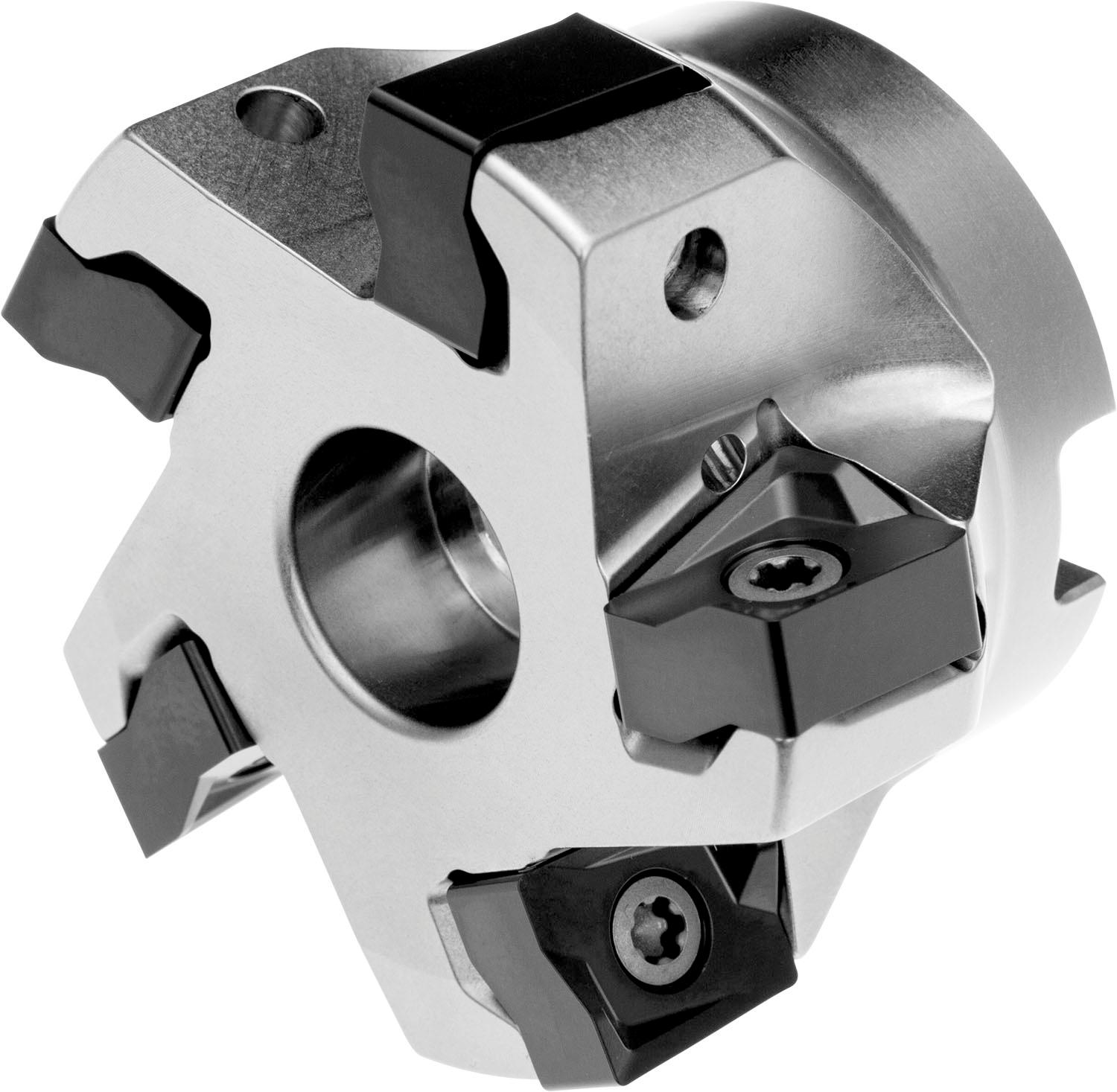

PRAMET 100A07R-S90LN16-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602956590
Product number (SAP): 86001217
Ordering code ANSI: 100A07R-S90LN16-C
Product Line: ECON LN
Gross weight – grams: 1778.7
Cutting diameter – millimeter (DC): 100 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -10.5
Axial rake angle (GAMP): -6
Peripheral effective cutting edge count (ZEFP): 7
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 6100
Net weight – grams: 1778.7
Cutter Design: SLN16
Insert index count (NOI): 7
ISO: 100A07R-S90LN16-C
