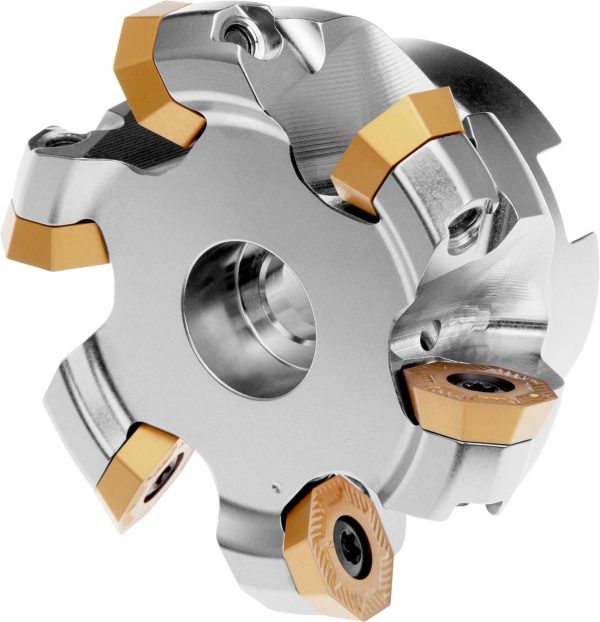

PRAMET 100A08R-S45OE06Z-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603603072275
Product number (SAP): 86025913
Ordering code ANSI: 100A08R-S45OE06Z-C
Gross weight – grams: 1870
Cutting diameter – millimeter (DC): 100 mm
Cutting diameter maximum – millimeter (DCX): 109.9 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): 1
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 7600
Net weight – grams: 1870
Cutter Design: SOE06Z
Insert index count (NOI): 8
ISO: 100A08R-S45OE06Z-C
