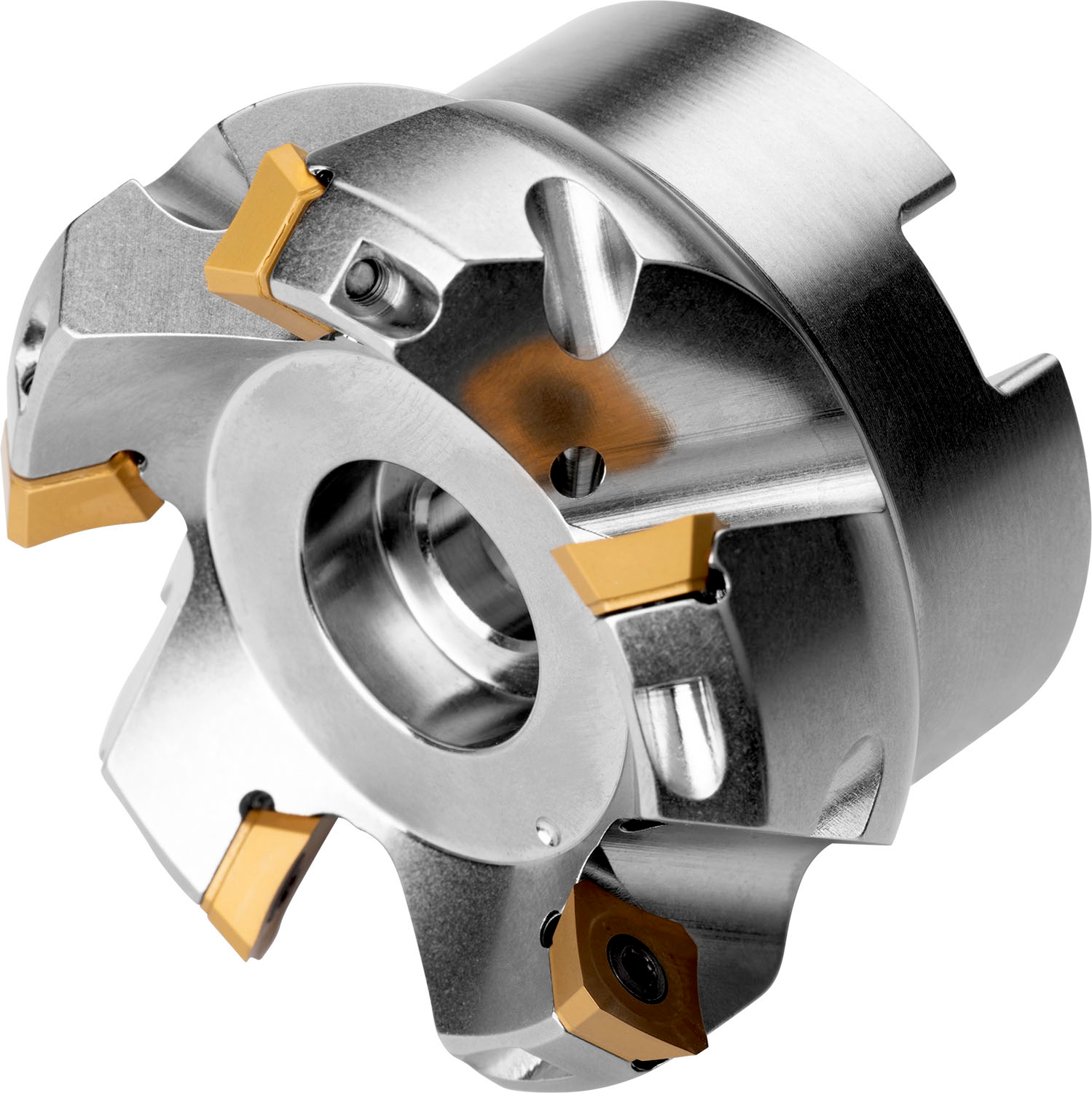

PRAMET 100A08R-S45SE09F-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602970152
Product number (SAP): 86007561
Ordering code ANSI: 100A08R-S45SE09F-C
Gross weight – grams: 1983.8
Cutting diameter – millimeter (DC): 100 mm
Cutting diameter maximum – millimeter (DCX): 110 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -5
Axial rake angle (GAMP): 20
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 11000
Net weight – grams: 1830
Cutter Design: SSE09
Insert index count (NOI): 8
ISO: 100A08R-S45SE09F-C
