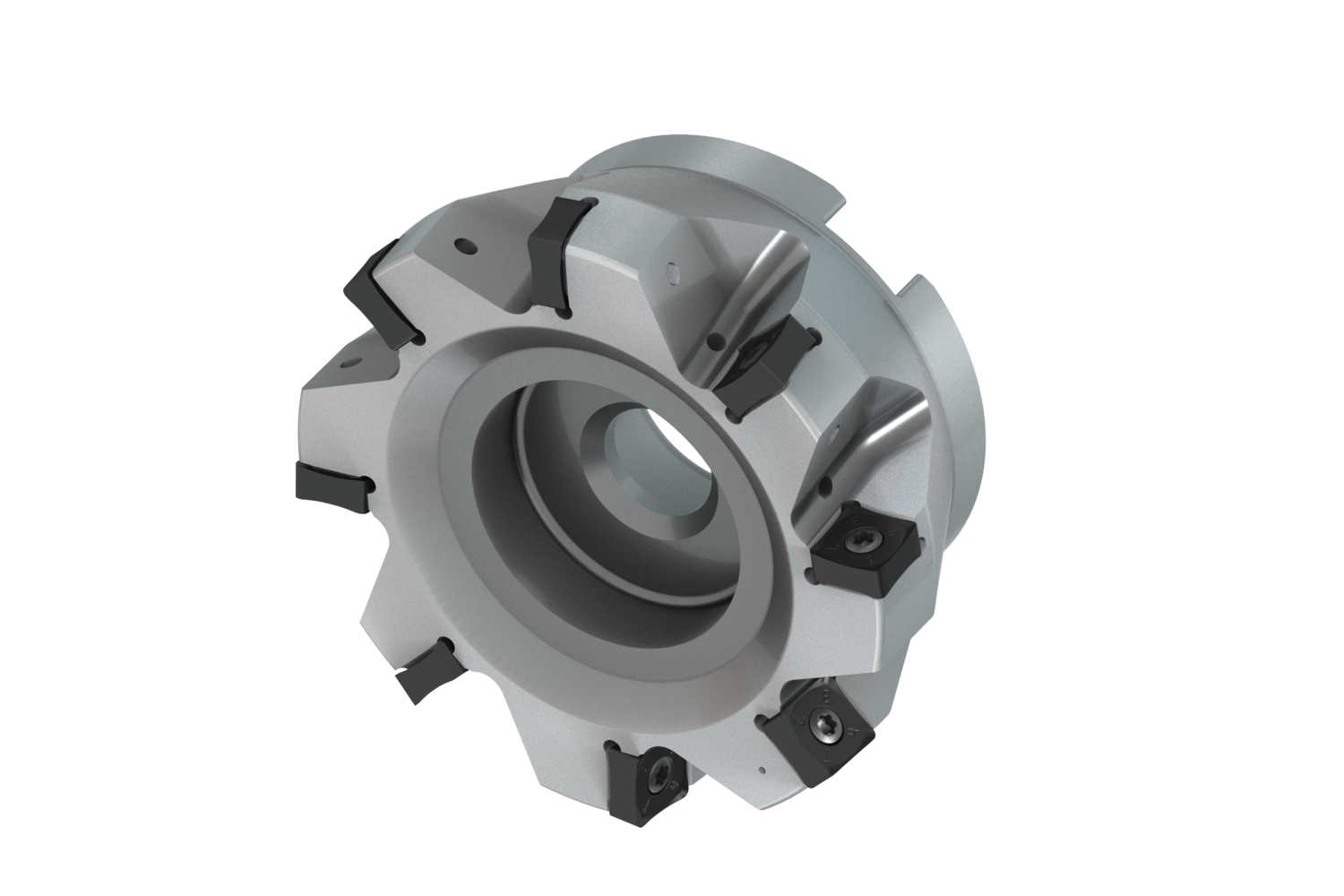

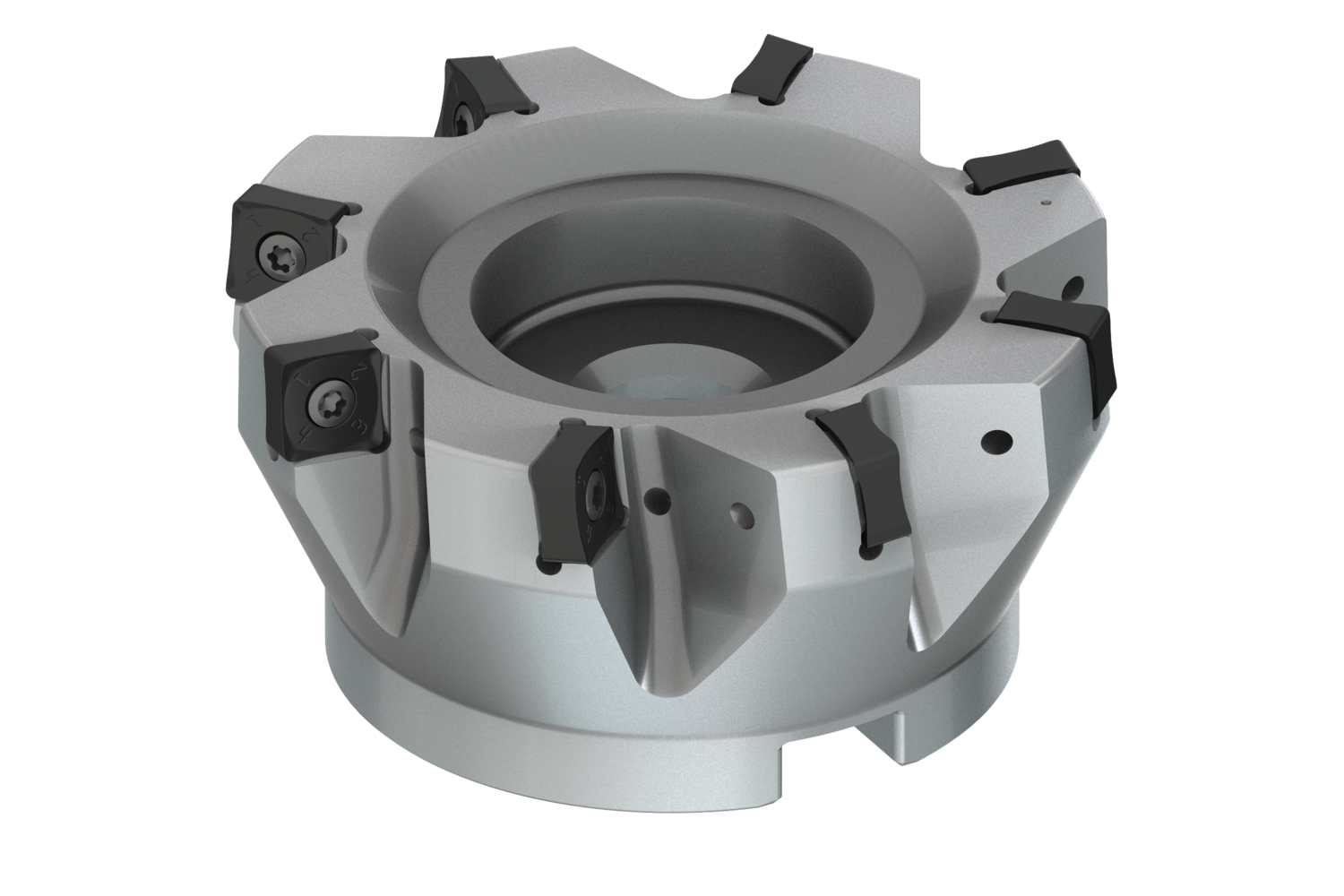

PRAMET 100A08R-S88SN12-C Milling Cutters

Description: Value
EAN number: 3603604144391
Product number (SAP): 86043818
Ordering code ANSI: 100A08R-S88SN12-C
Gross weight – grams: 1844.2

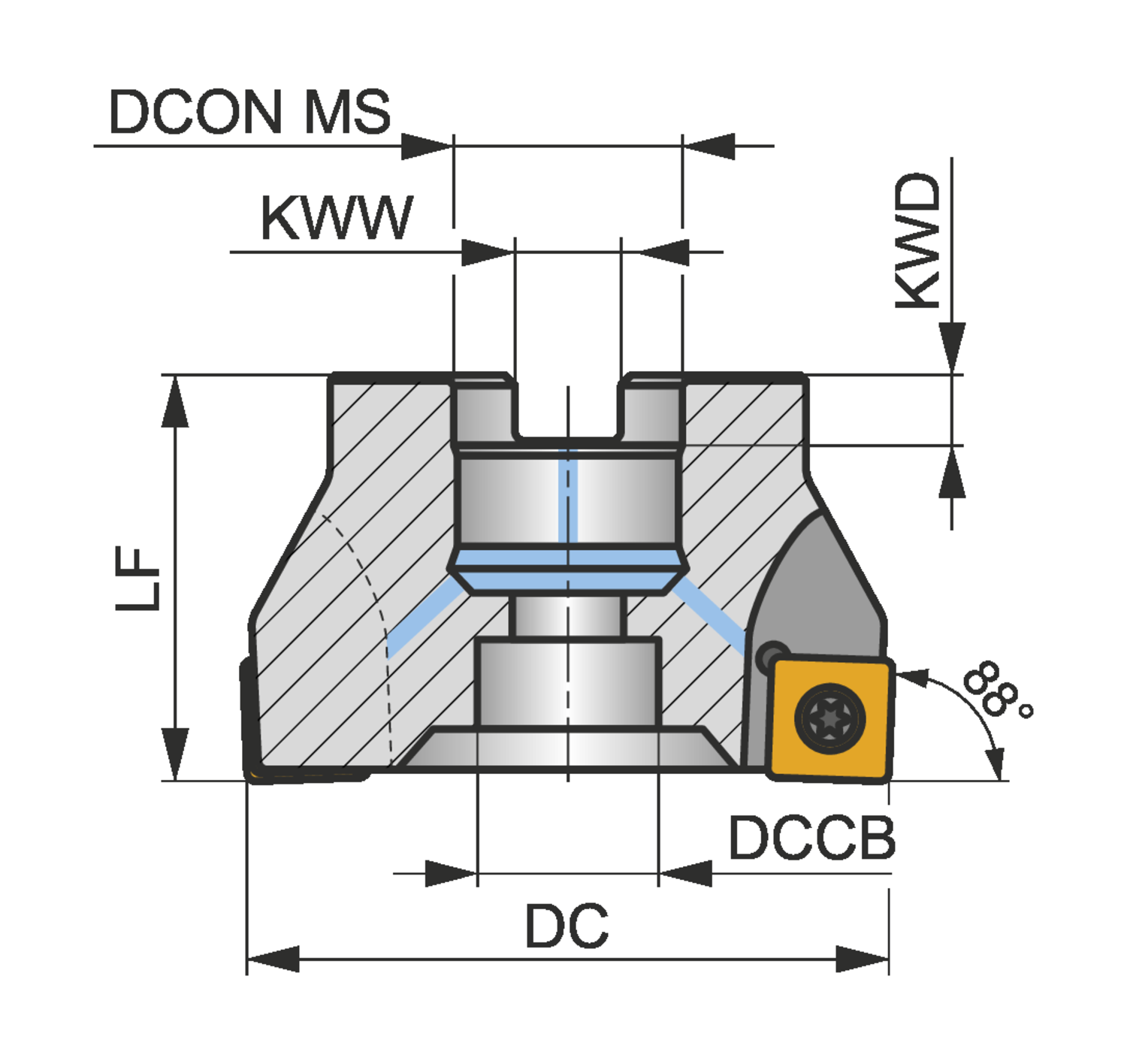

Cutting diameter – millimeter (DC): 100 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -8
Axial rake angle (GAMP): -8
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 8900
Net weight – grams: 1590
Cutter Design: SSN12
ISO: 100A08R-S88SN12-C
