Description: Value
EAN number: 3603603844544
Product number (SAP): 86037886
Ordering code ANSI: 100A08R-S90TN16-C
Product Line: ECON TN
Gross weight – grams: 1837.8
Cutting diameter – millimeter (DC): 100 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45.1 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm

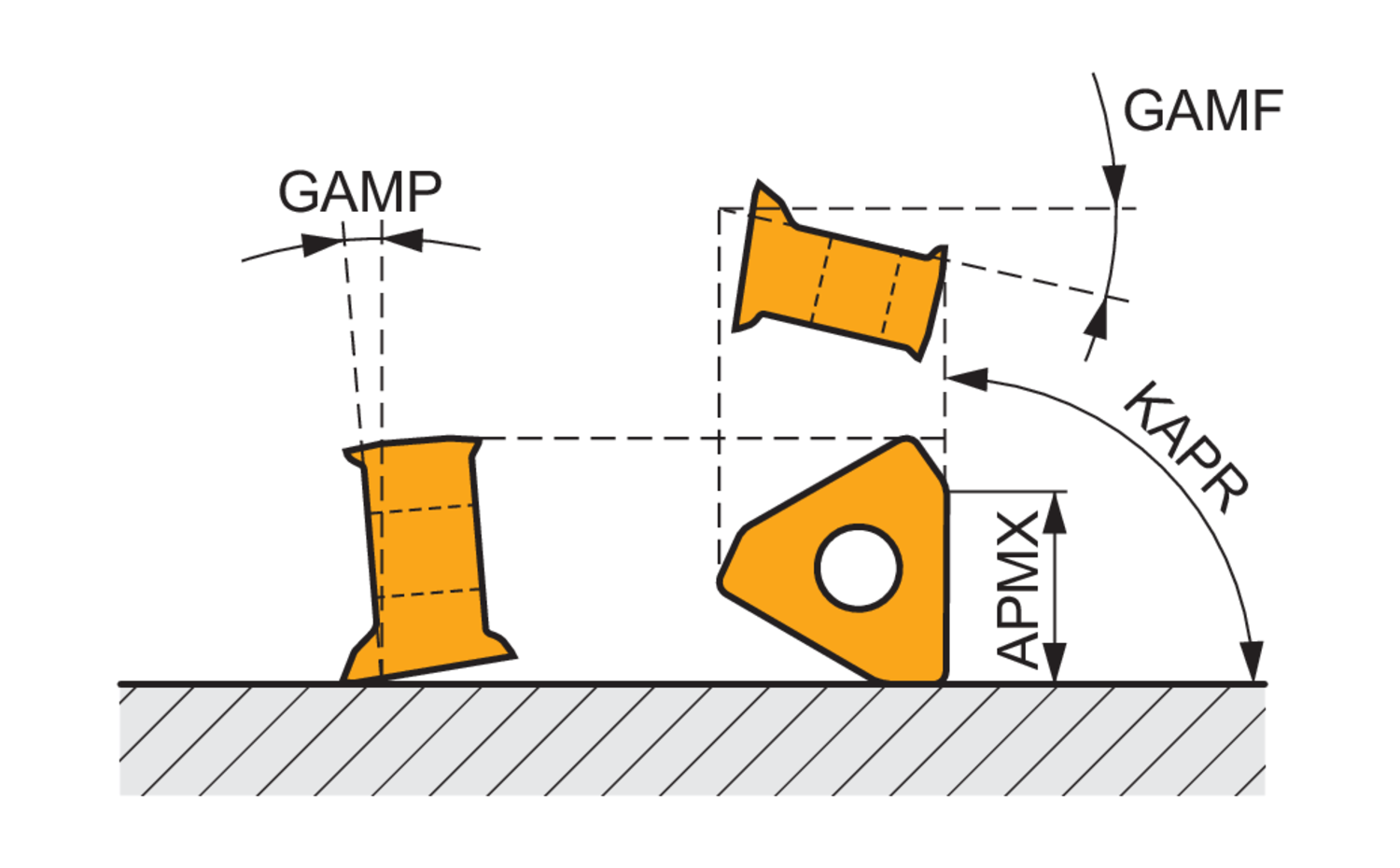

Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 10000
Net weight – grams: 1663
Cutter Design: STN16
Insert index count (NOI): 8
ISO: 100A08R-S90TN16-C
|
