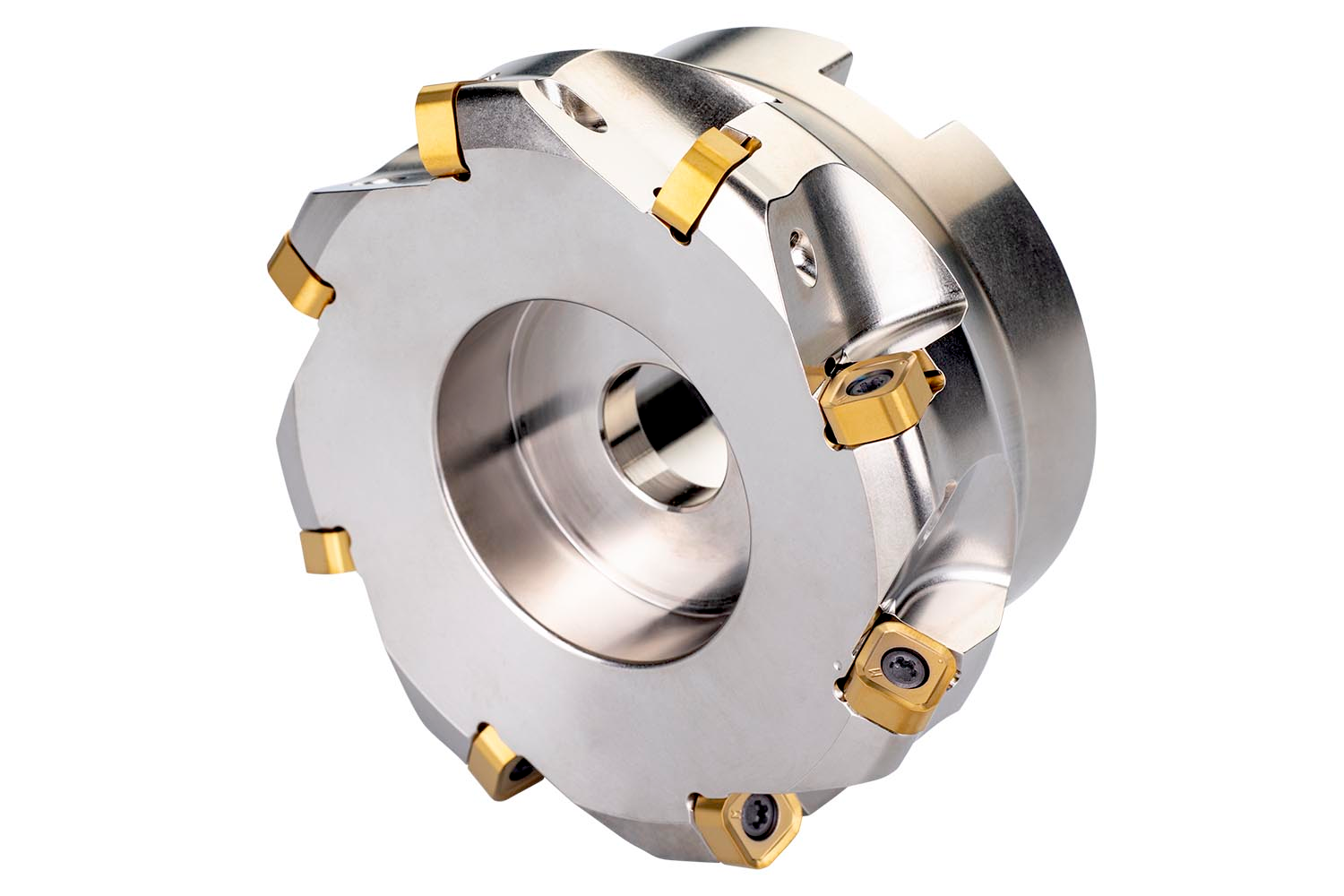

PRAMET 100A08R-SMOSN11-C

Description: Value
EAN number: 3603603672451
Product number (SAP): 86035434
Ordering code ANSI: 100A08R-SMOSN11-C
Gross weight – grams: 1826.3
Cutting diameter maximum – millimeter (DCX): 100 mm
Cutting diameter – millimeter (DC): 86.1 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45.1 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -10
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 9900
Net weight – grams: 1826.3
Cutter Design: SSN11
Insert index count (NOI): 8
ISO: 100A08R-SMOSN11-C
