PRAMET 100A08R-SMOSO12-C

Description: Value
EAN number: 3603604263276
Product number (SAP): 86045462
Ordering code ANSI: 100A08R-SMOSO12-C
Gross weight – grams: 1491.7

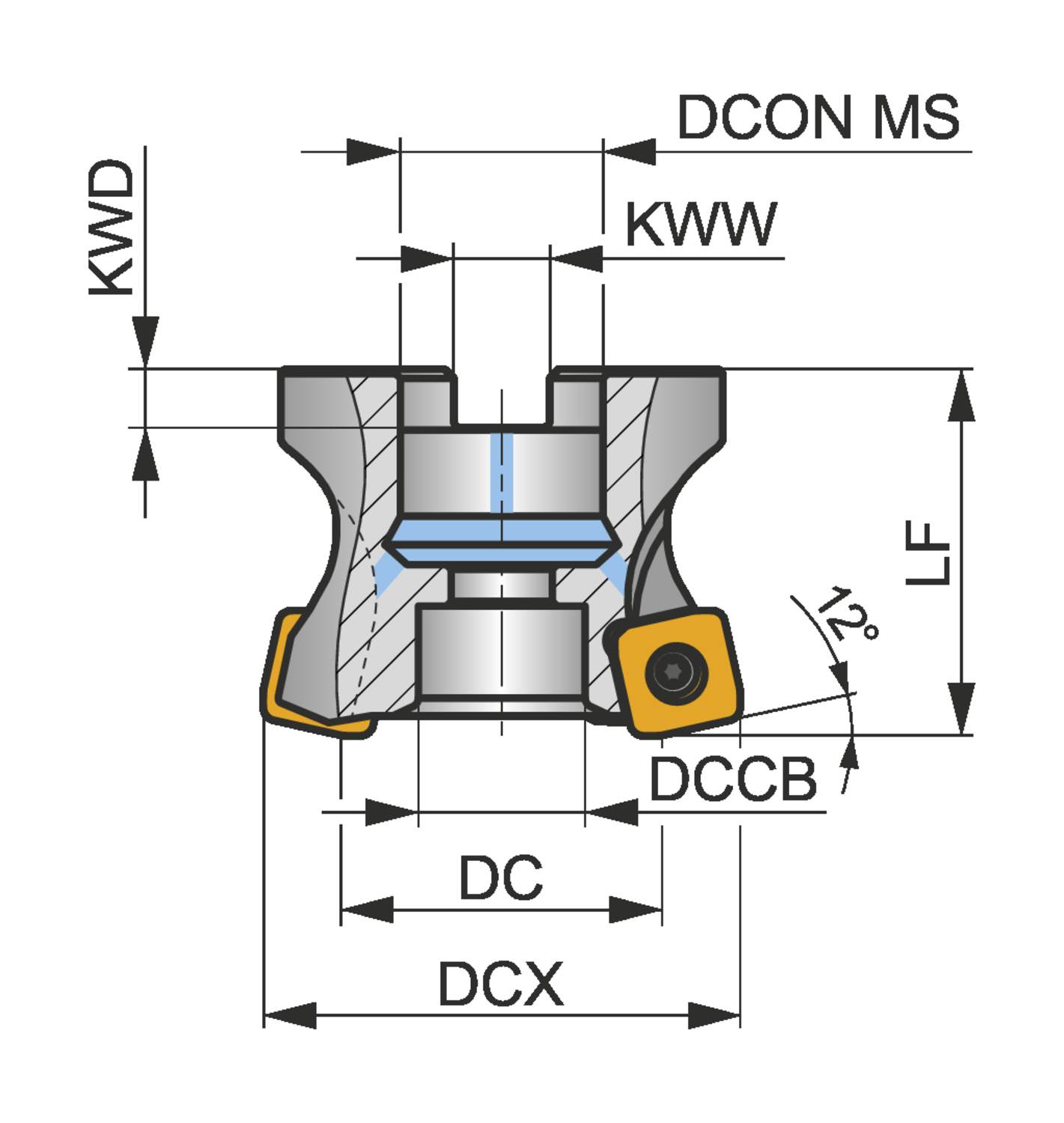

Cutting diameter – millimeter (DC): 82.3 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45.1 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm

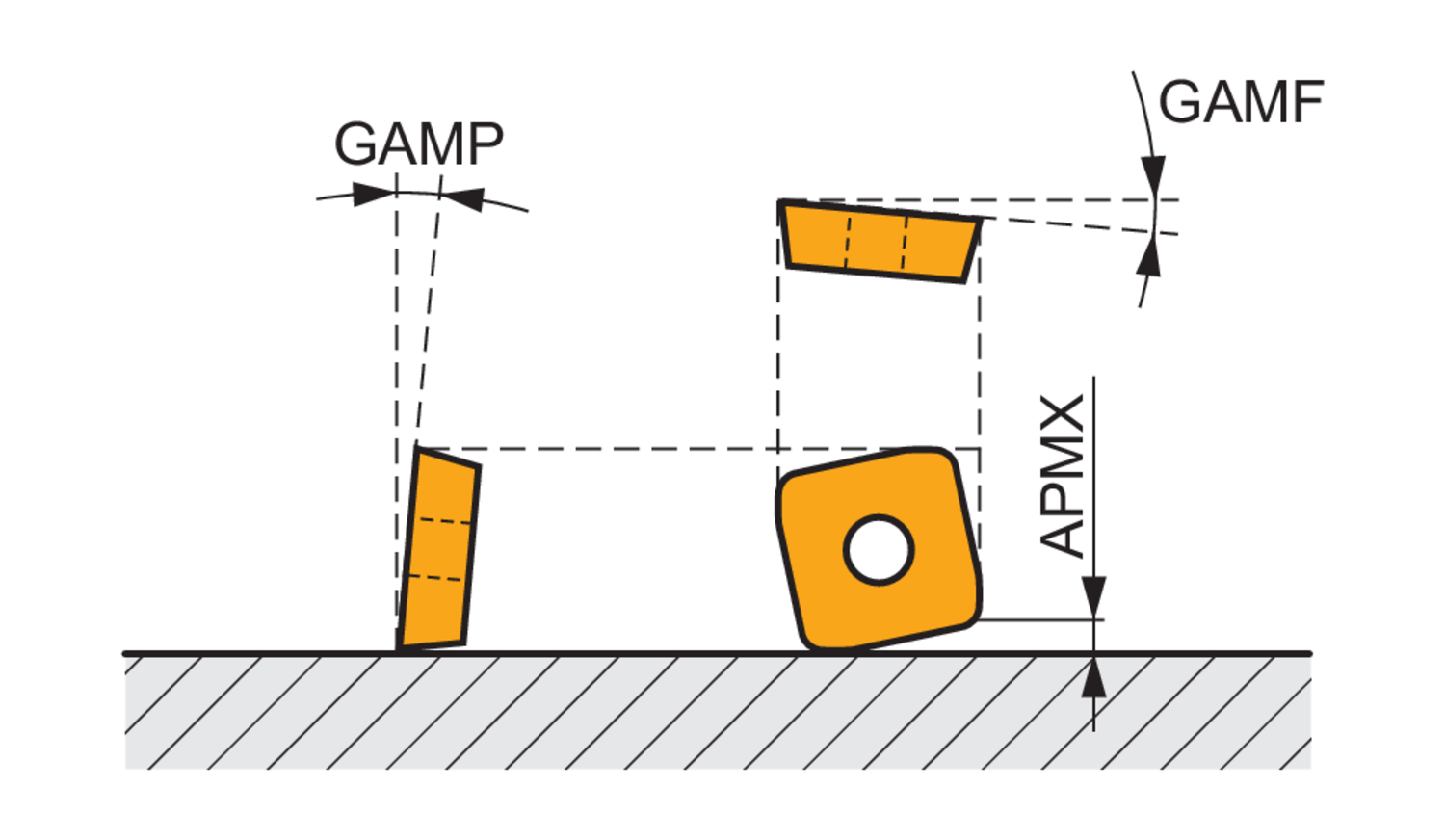

Radial rake angle (GAMF): -5
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 9300
Net weight – grams: 1320
Cutter Design: SSO12
ISO: 100A08R-SMOSO12-C
