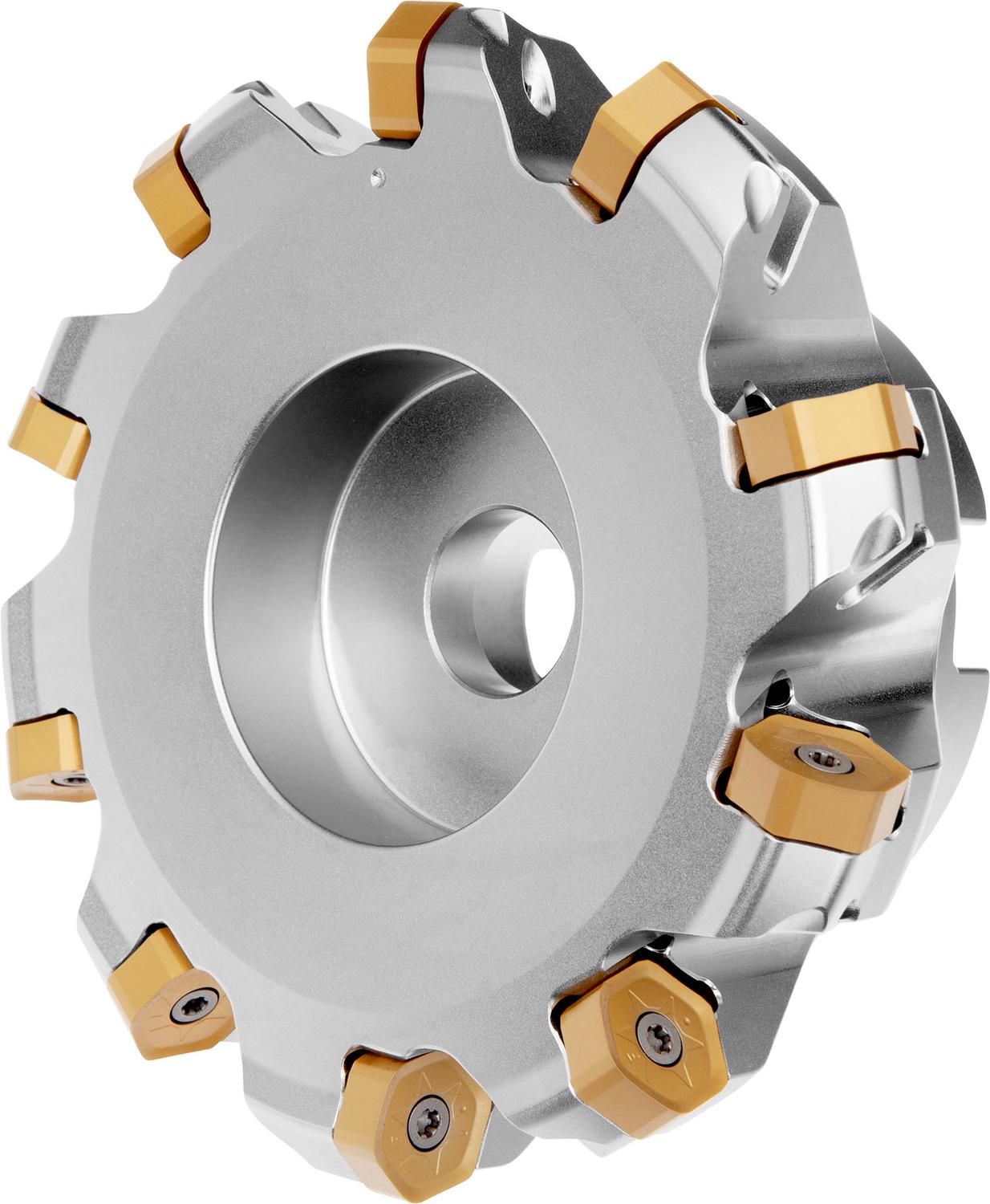

PRAMET 100A10R-S45HN09C-CF Milling cutters with clamping by screw

Description: Value
EAN number: 3603602969163
Product number (SAP): 86007288
Ordering code ANSI: 100A10R-S45HN09C-CF
Product Line: ECON HN
Gross weight – grams: 1990.9
Cutting diameter – millimeter (DC): 100 mm
Cutting diameter maximum – millimeter (DCX): 111.7 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -8
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 10
Rotational speed maximum (RPMX): 5600
Net weight – grams: 1791.2
Cutter Design: SHN09C
Insert index count (NOI): 10
ISO: 100A10R-S45HN09C-CF
