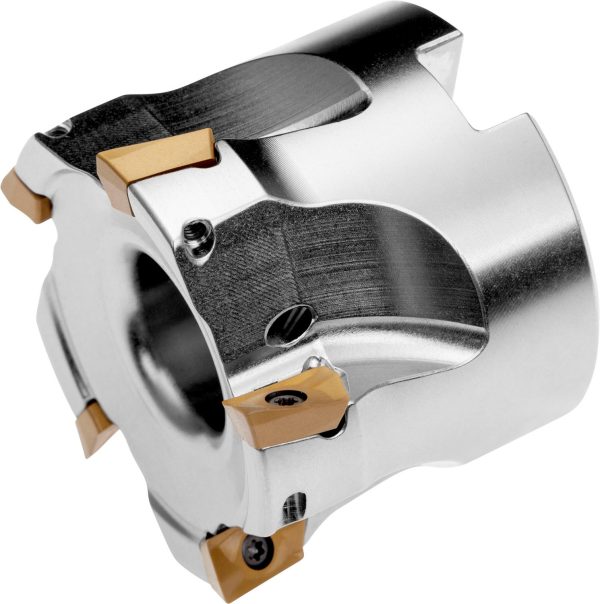

PRAMET 100A11R-S90AD11E-C Milling cutters with clamping by screw

Product Code: 100A11R-S90AD11E-C

$1,325.61$1,205.10 Ex. GST

Product Code: 100A11R-S90AD11E-C SKU 100A11R-S90AD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 11 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 100mm with 90° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 1.287 kg
barcode
Additional Information

Description: Value
EAN number: 3603602955654
Product number (SAP): 86000606
Ordering code ANSI: 100A11R-S90AD11E-C
Product Line: FORCE AD
Gross weight – grams: 1890
Cutting diameter – millimeter (DC): 100 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Functional length – millimeter (LF): 50 mm
Connection size code machine side (CZC MS): –
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): -5.5
Axial rake angle (GAMP): 12
Peripheral effective cutting edge count (ZEFP): 11
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 12100
Net weight – grams: 1890
Cutter Design: SAD11E
Insert index count (NOI): 11
ISO: 100A11R-S90AD11E-C

Brand

PRAMET
