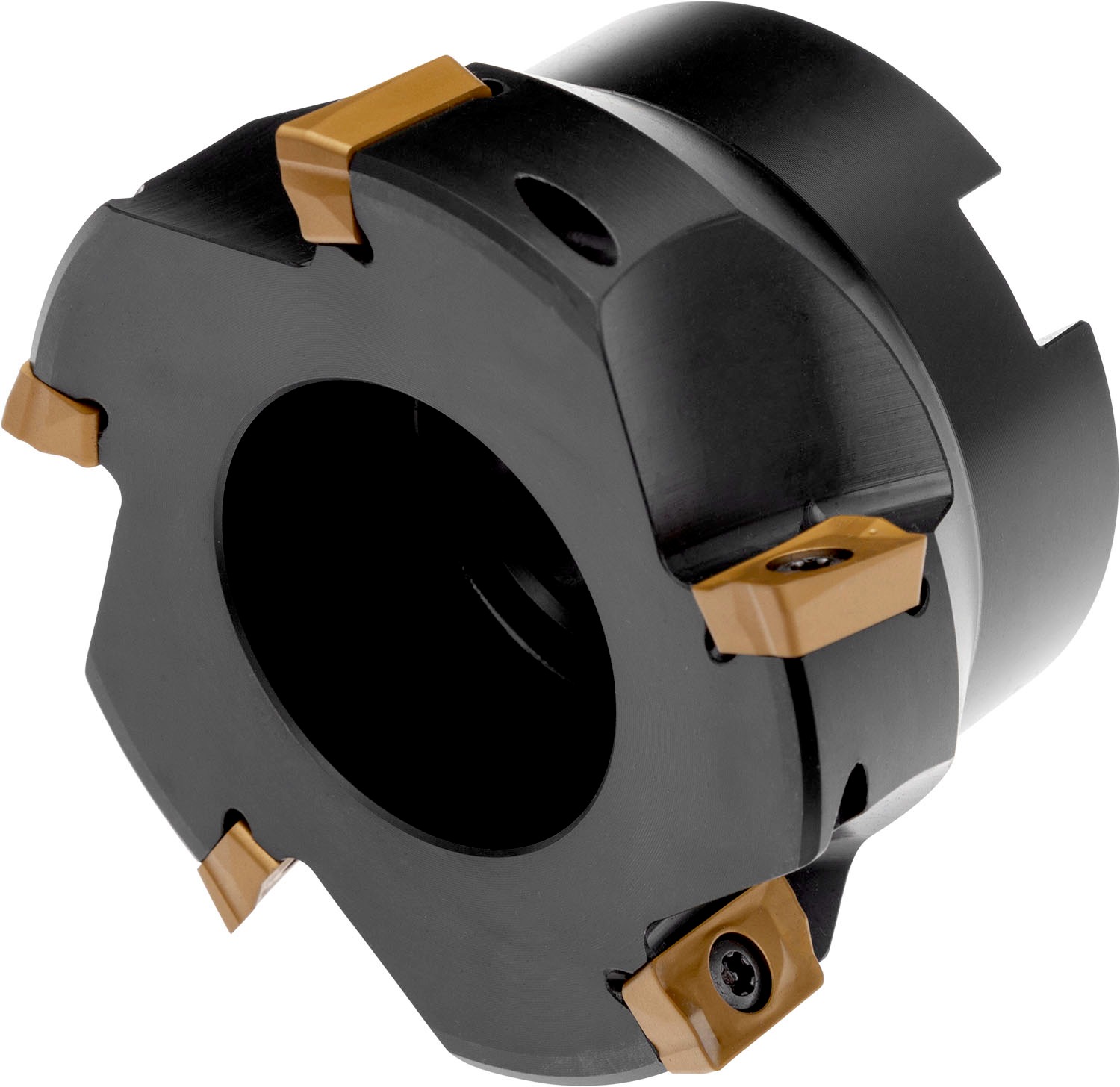

PRAMET 100B8R-S90AP16D Milling cutters with clamping by screw

Product Code: 100B8R-S90AP16D

$1,557.88$1,416.25 Ex. GST

Product Code: 100B8R-S90AP16D SKU 100B8R-S90AP16D Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 8 of APKT 1604.. or APET 1604.. single-sided inserts, cutting diameter 100mm with 90° approach angle and 32mm connection bore according to DIN 8030-B, 50mm protrusion length and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 1.5125 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602923967
Product number (SAP): 84001487
Ordering code ANSI: 100B8R-S90AP16D
Gross weight – grams: 1500
Cutting diameter – millimeter (DC): 100 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 45 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 14.4 mm
Keyway depth – millimeter (KWD): 8 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 6
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 8400
Net weight – grams: 1500
Cutter Design: SAP16D
Insert index count (NOI): 8
ISO: 100B8R-S90AP16D

Brand

PRAMET
