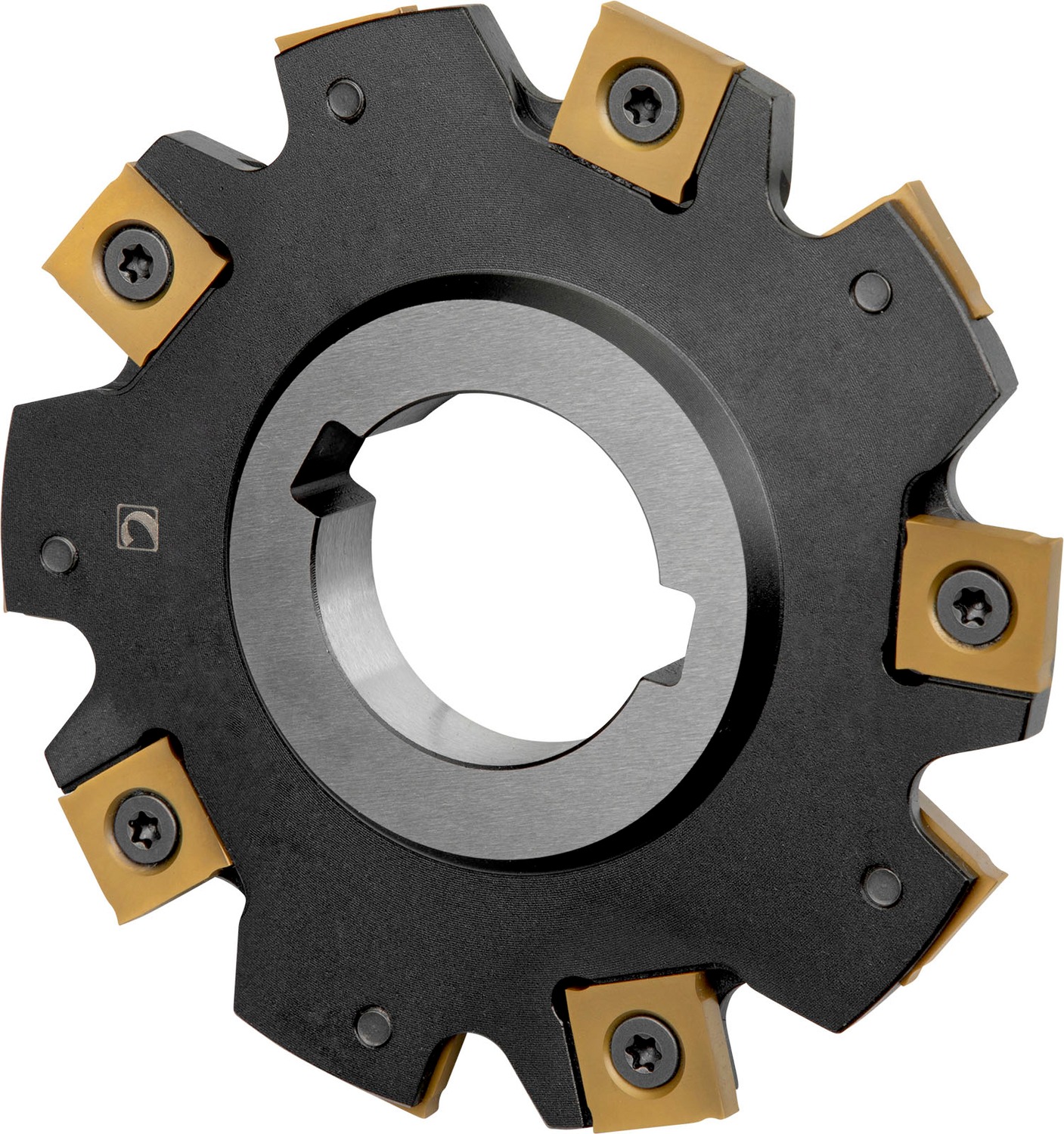

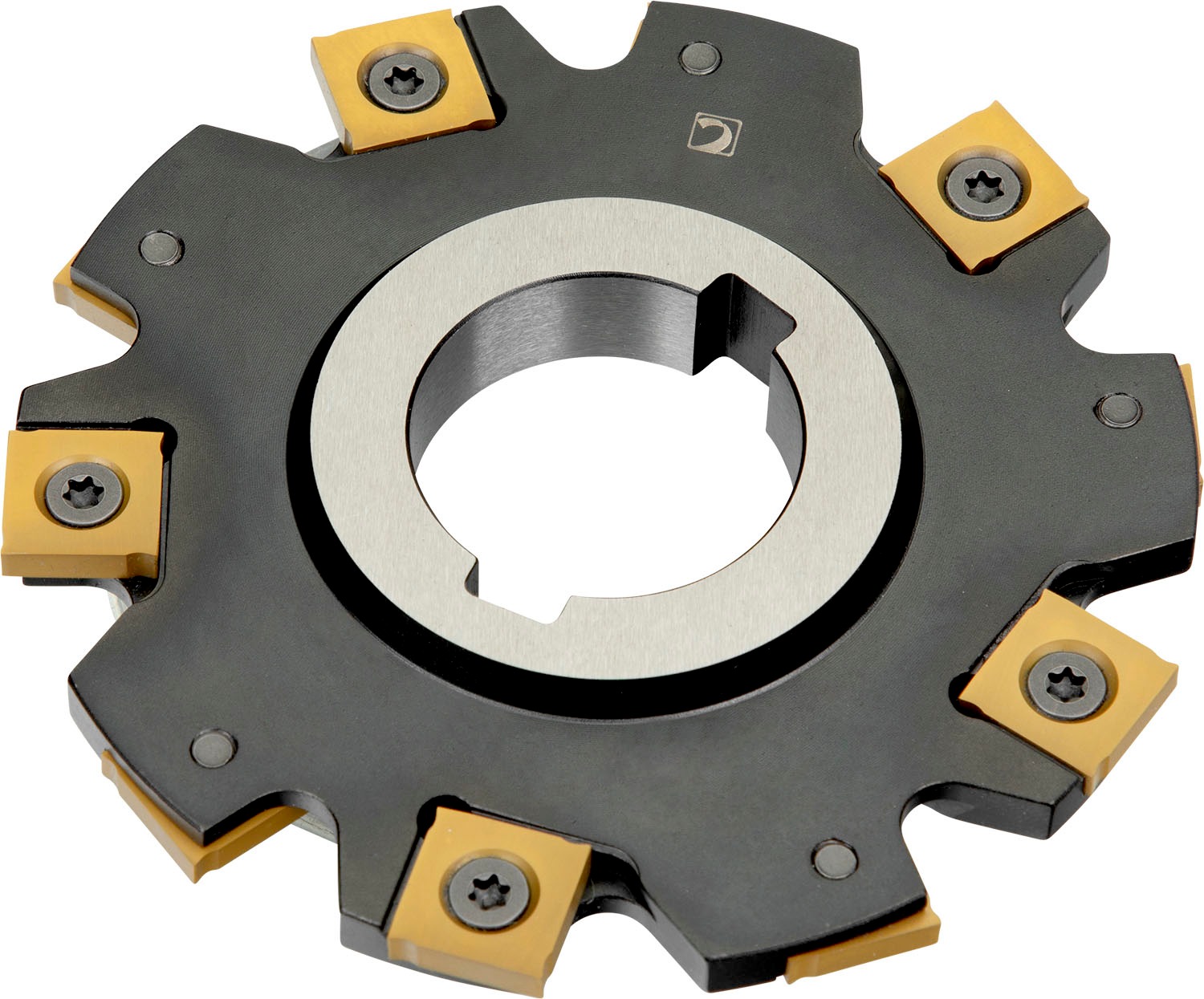

PRAMET 100G10N-S90SN12N6 Milling cutters with clamping by screw

Description: Value
EAN number: 3603602937193
Product number (SAP): 84004824
Ordering code ANSI: 100G10N-S90SN12N6
Gross weight – grams: 434
Milling range CW – Global: 4.0 – 14.0 mm

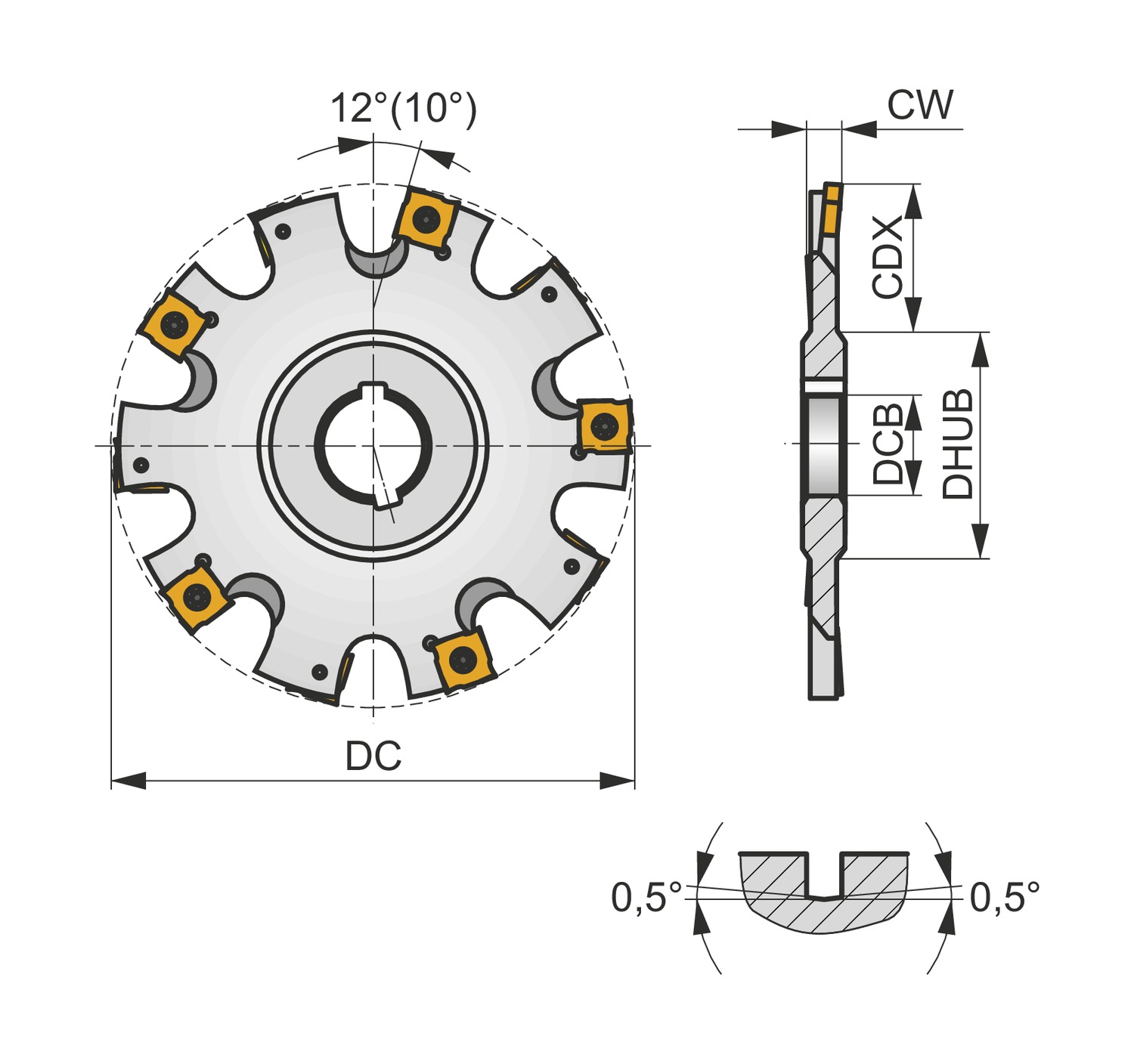

Cutting diameter – millimeter (DC): 100 mm
Connection bore diameter – millimeter (DCB): 32 mm
Hub diameter – millimeter (DHUB): 48 mm
Cutting depth maximum – millimeter (CDX): 24 mm
Cutting width – millimeter (CW): 6 mm

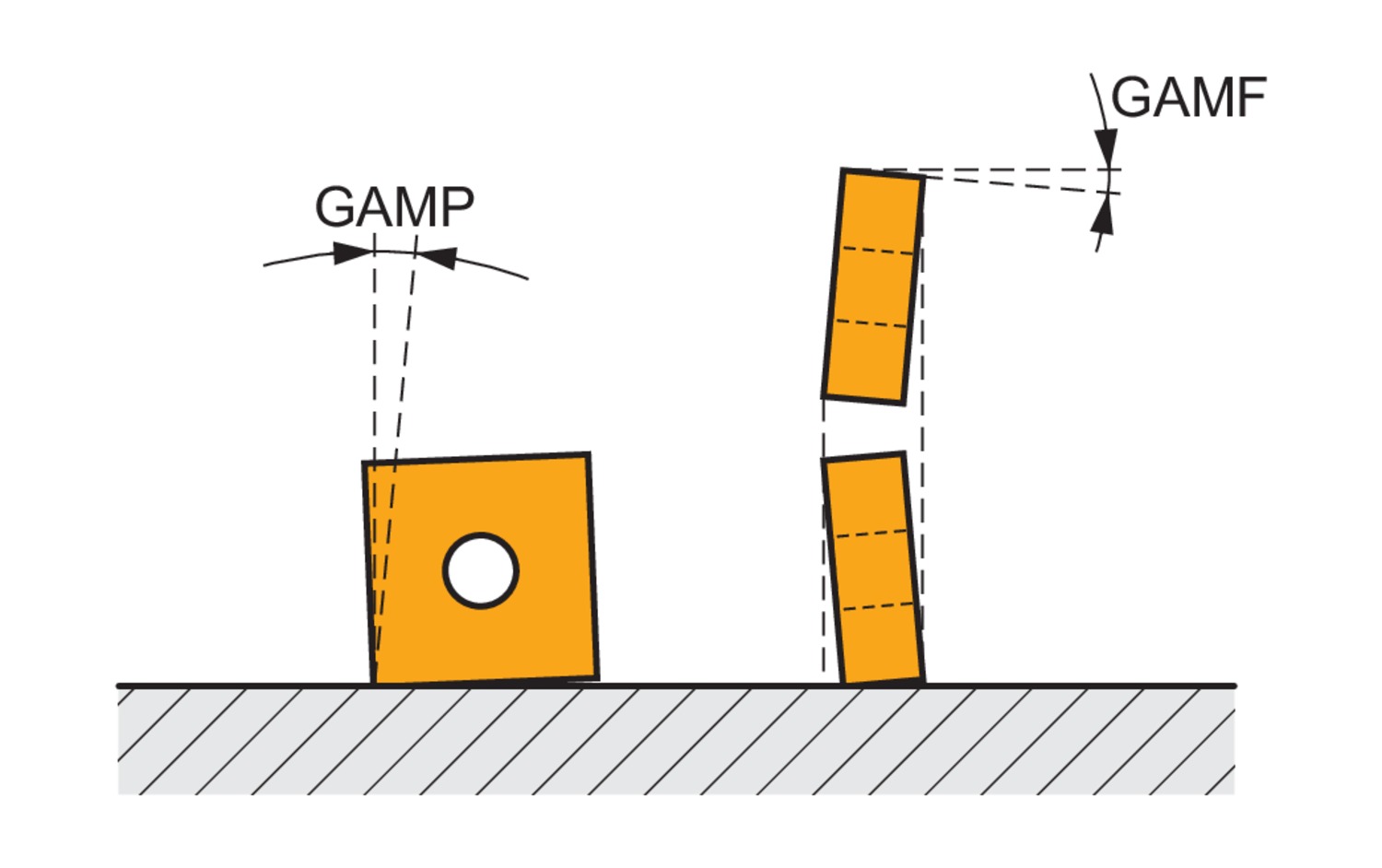

Radial rake angle (GAMF): 2.5
Axial rake angle (GAMP): -0.5
Peripheral effective cutting edge count (ZEFP): 10
Rotational speed maximum (RPMX): 7500
Net weight – grams: 434
Cutter Design: S90SN
Insert index count (NOI): 10
ISO: 100G10N-S90SN12N6
