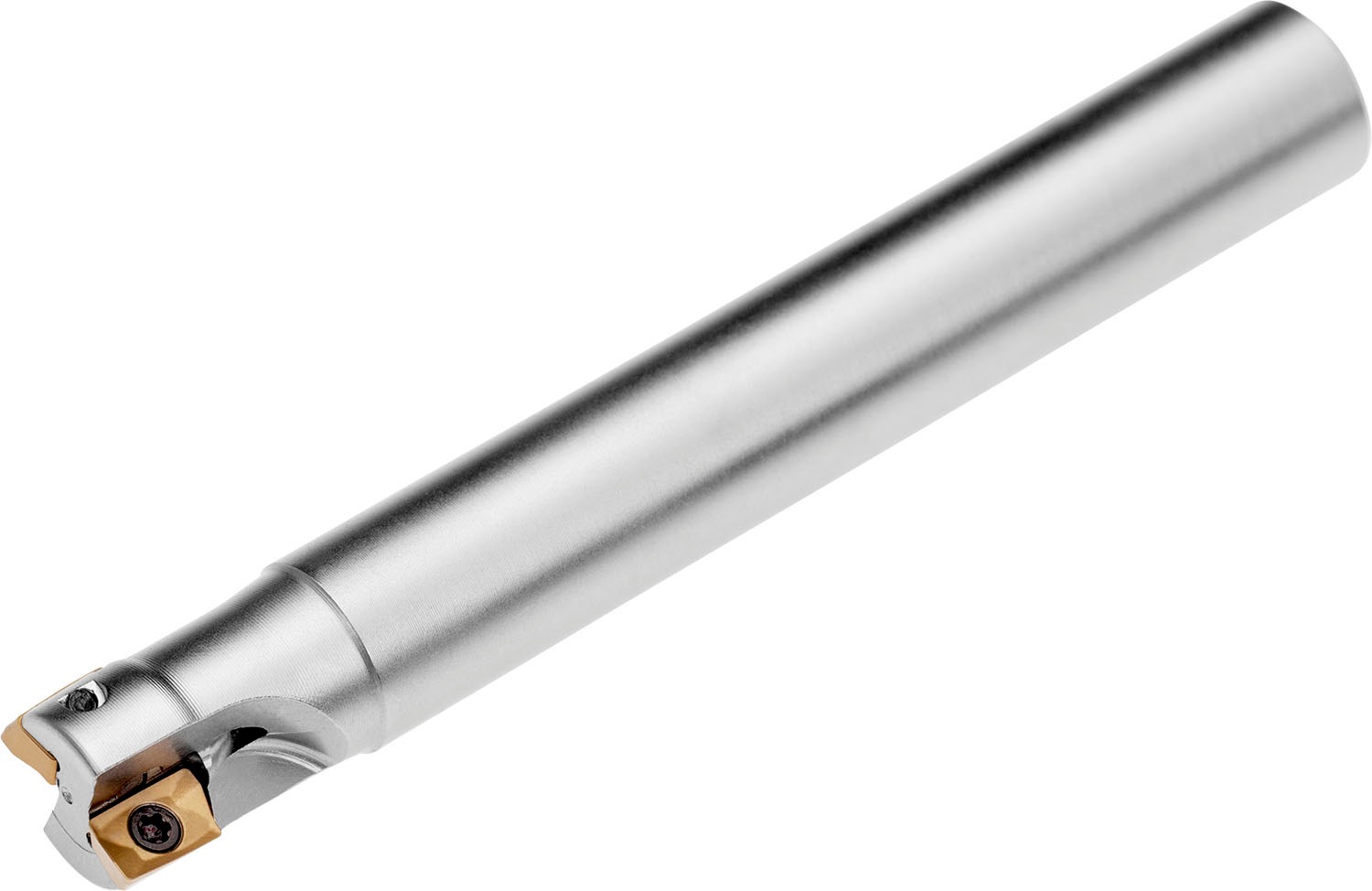

PRAMET 10A2R016A10-SAD07D-C Milling cutters with clamping by screw

Product Code: 10A2R016A10-SAD07D-C

$390.89$355.35 Ex. GST

Product Code: 10A2R016A10-SAD07D-C SKU 10A2R016A10-SAD07D-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 2 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 10mm with 90° approach angle and 10mm parallel shank according to DIN 1835A, 16mm functional and 80mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.3795 kg
Dimensions Length 8cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603602992642
Product number (SAP): 86020557
Ordering code ANSI: 10A2R016A10-SAD07D-C
Product Line: FORCE AD
Gross weight – grams: 65
Cutting diameter – millimeter (DC): 10 mm
Overall length – millimeter (OAL): 80 mm
Connection diameter – millimeter (DCON MS): 10 mm
Usable Length – millimeter (LU): 16 mm
Radial rake angle (GAMF): -12
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 61600
Net weight – grams: 50
Cutter Design: SAD07D
Insert index count (NOI): 2
ISO: 10A2R016A10-SAD07D-C

Brand

PRAMET
