PRAMET 10K2R060A16-SRC10-A Milling cutters for D&M

Product Code: 10K2R060A16-SRC10-A

$269.65$245.14 Ex. GST

Product Code: 10K2R060A16-SRC10-A SKU 10K2R060A16-SRC10-A Categories , ,

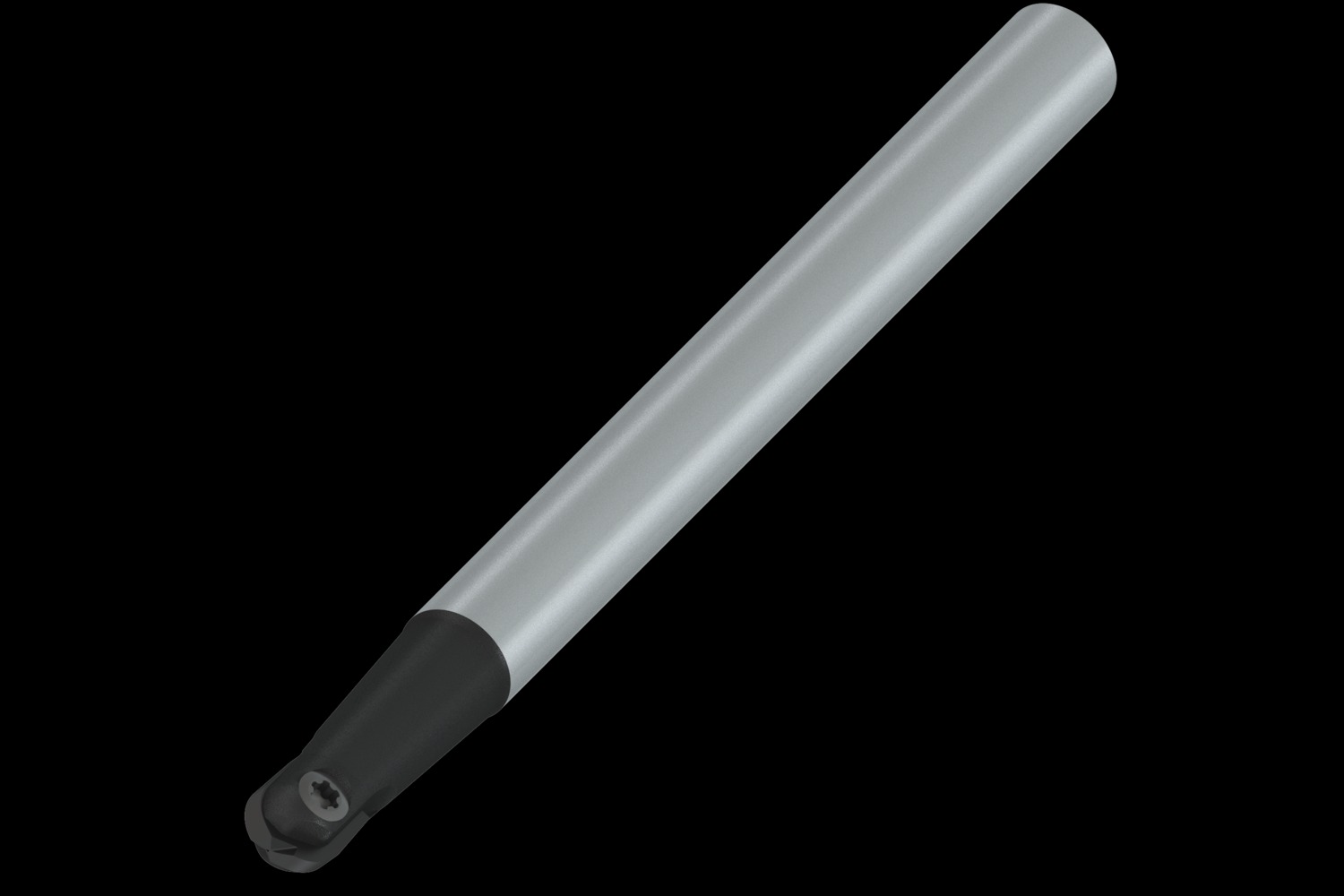

PRAMET 10K2R060A16-SRC10-A Milling cutters for D&M

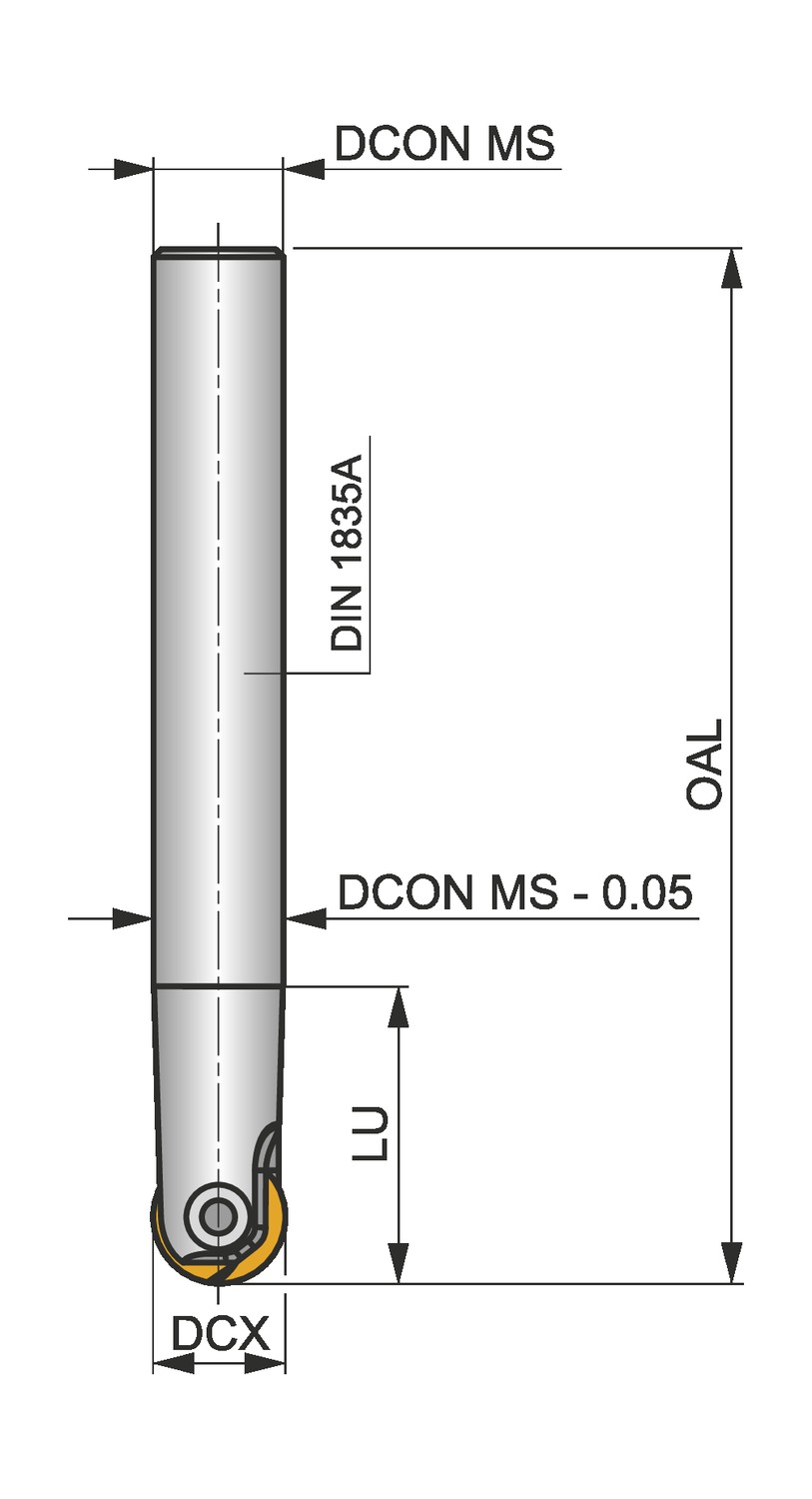

PRAMET 10K2R060A16-SRC10-A Milling cutters for D&M - Image 2

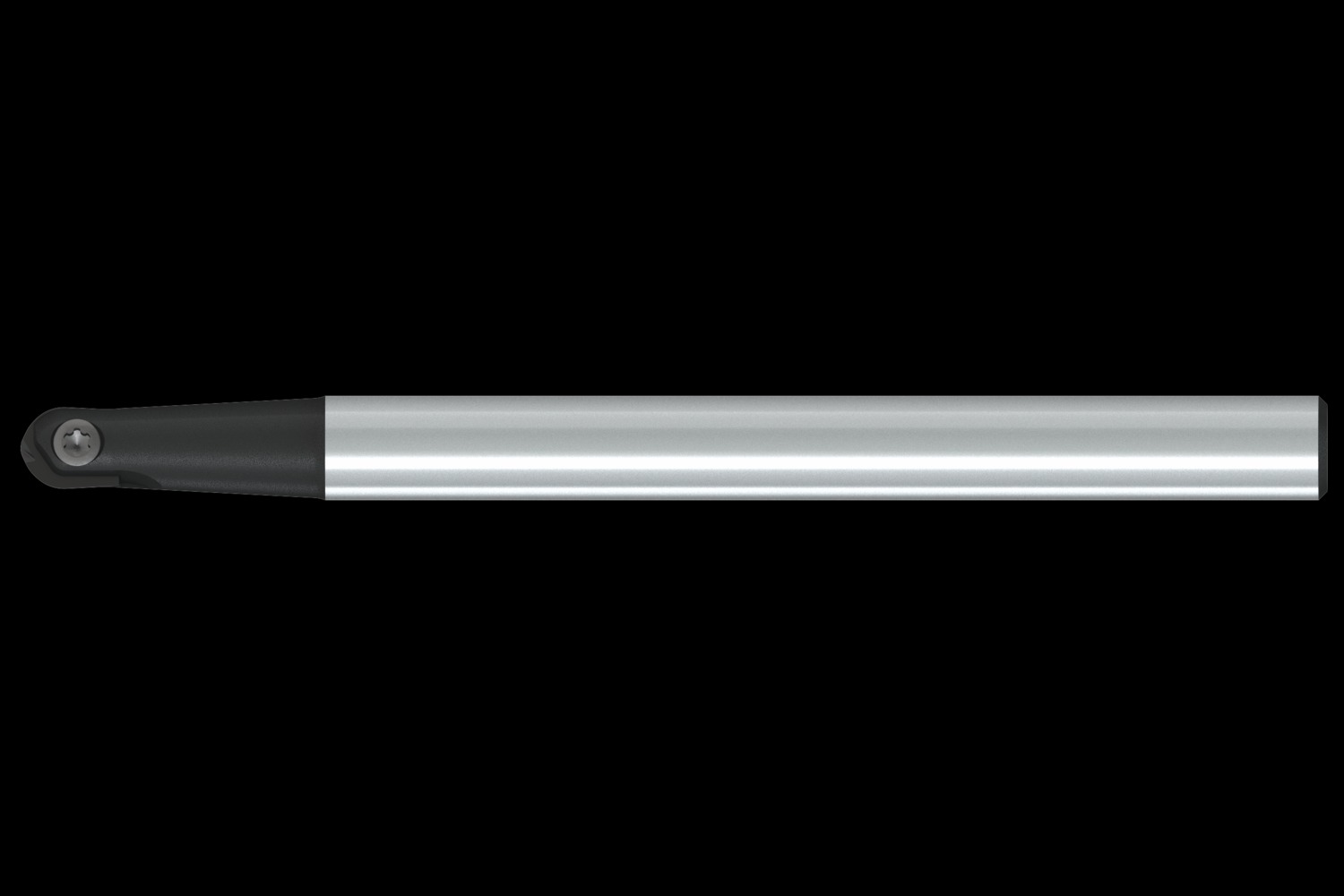

PRAMET 10K2R060A16-SRC10-A Milling cutters for D&M - Image 3

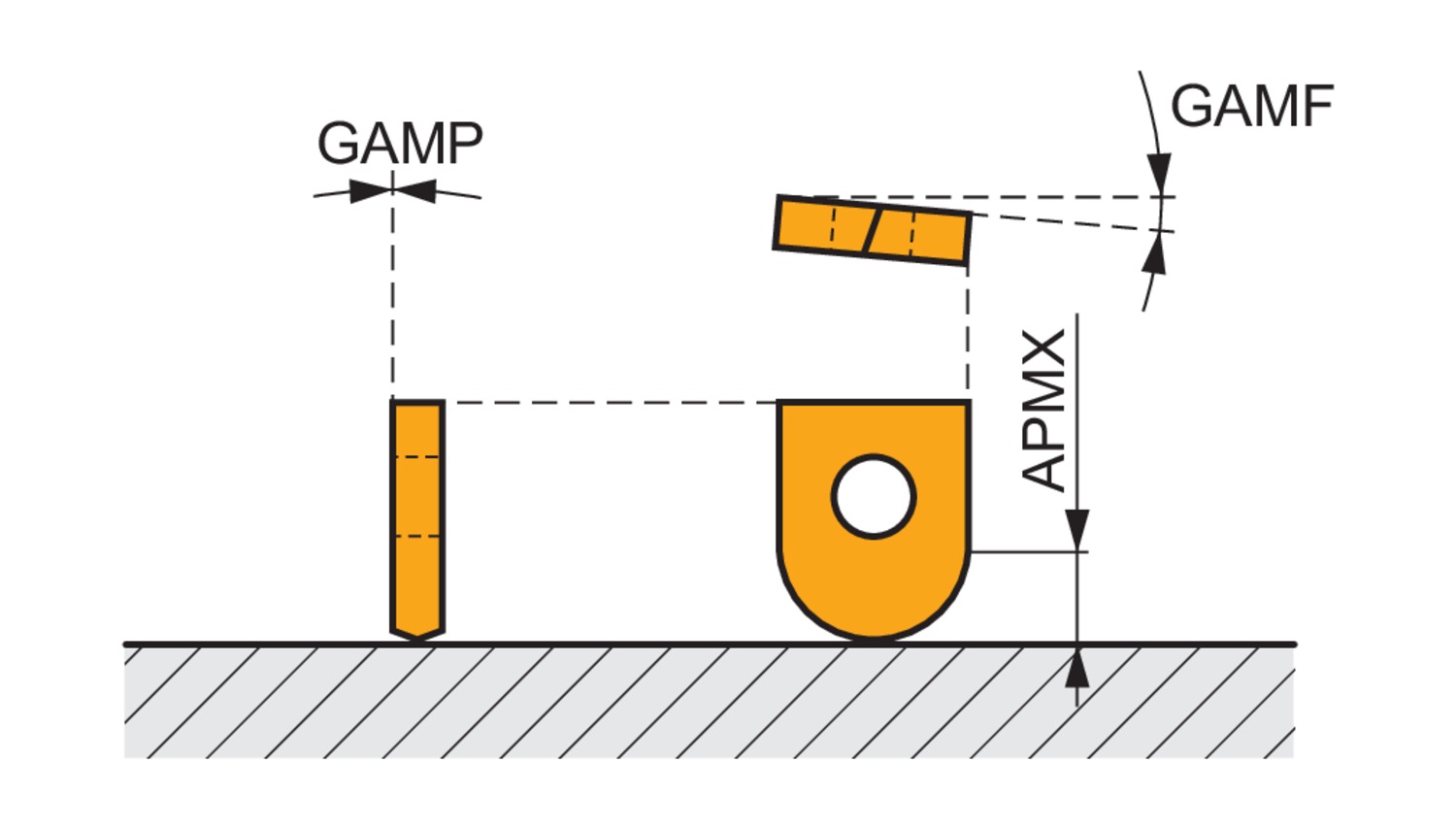

PRAMET 10K2R060A16-SRC10-A Milling cutters for D&M - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Copy end mill which utilises 1 of RC 10, RC 10-F, LC 10-KP or LC 10-KPF single-sided insert, cutting diameter 10mm with 16mm parallel shank according to DIN 1835A, 19.5mm functional and 150mm overall length for copy milling with a maximum depth of cut of 0.6-3.2mm

Additional information

Weight 0.2618 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602920850
Product number (SAP): 84000940
Ordering code ANSI: 10K2R060A16-SRC10-A
Gross weight – grams: 262.6
Cutting diameter maximum – millimeter (DCX): 10 mm
Overall length – millimeter (OAL): 150 mm
Connection diameter – millimeter (DCON MS): 16 mm
Usable Length – millimeter (LU): 19.5 mm
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 42000
Net weight – grams: 180
Insert index count (NOI): 1
ISO: 10K2R060A16-SRC10-A

Brand

PRAMET
