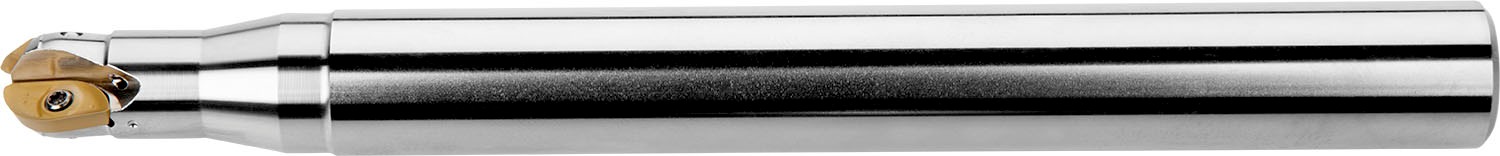

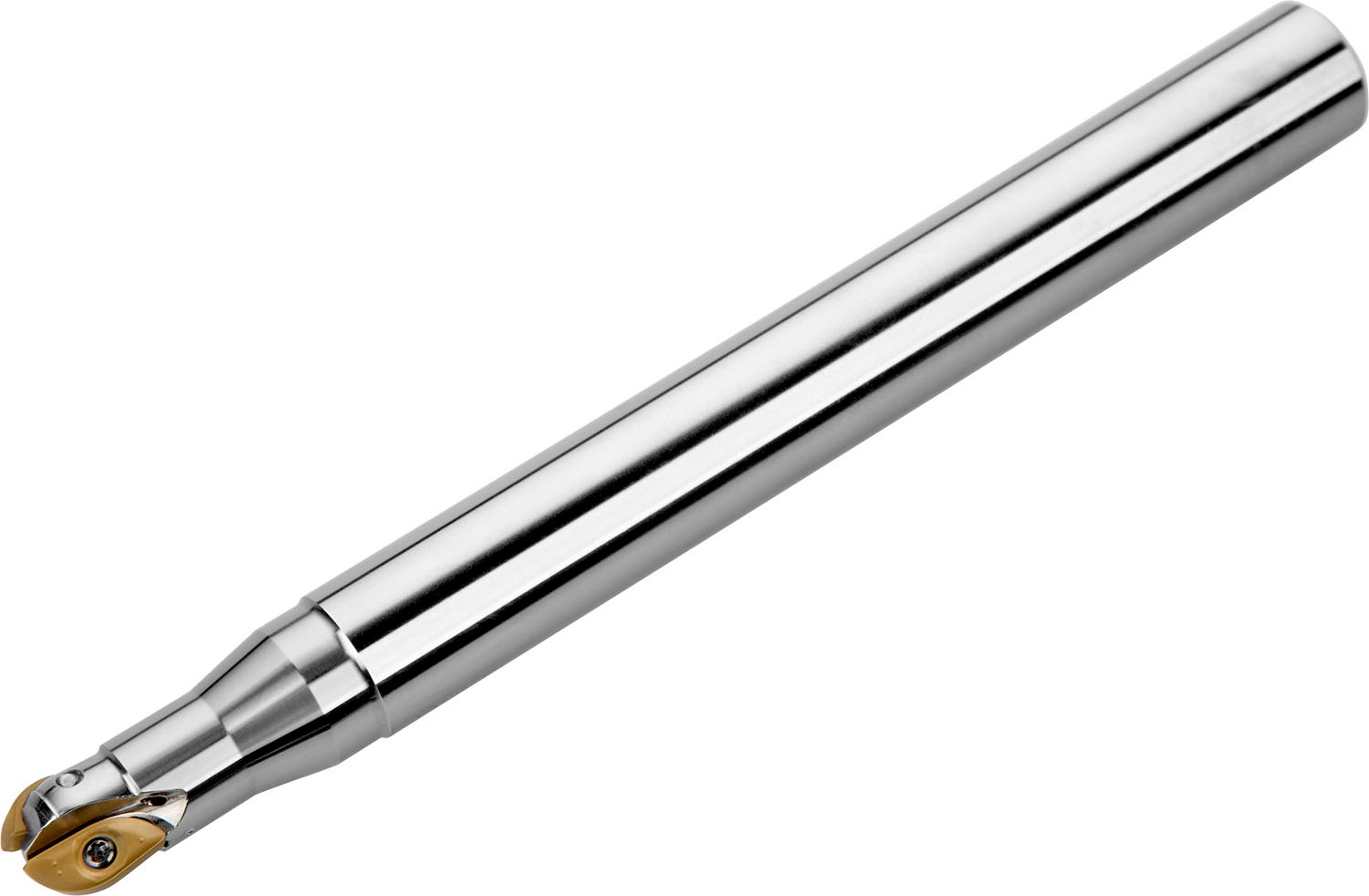

PRAMET 10L2R050A16-SZP10 Milling cutters for D&M

Description: Value
EAN number: 3603602969729
Product number (SAP): 86007473
Ordering code ANSI: 10L2R050A16-SZP10
Gross weight – grams: 246.5

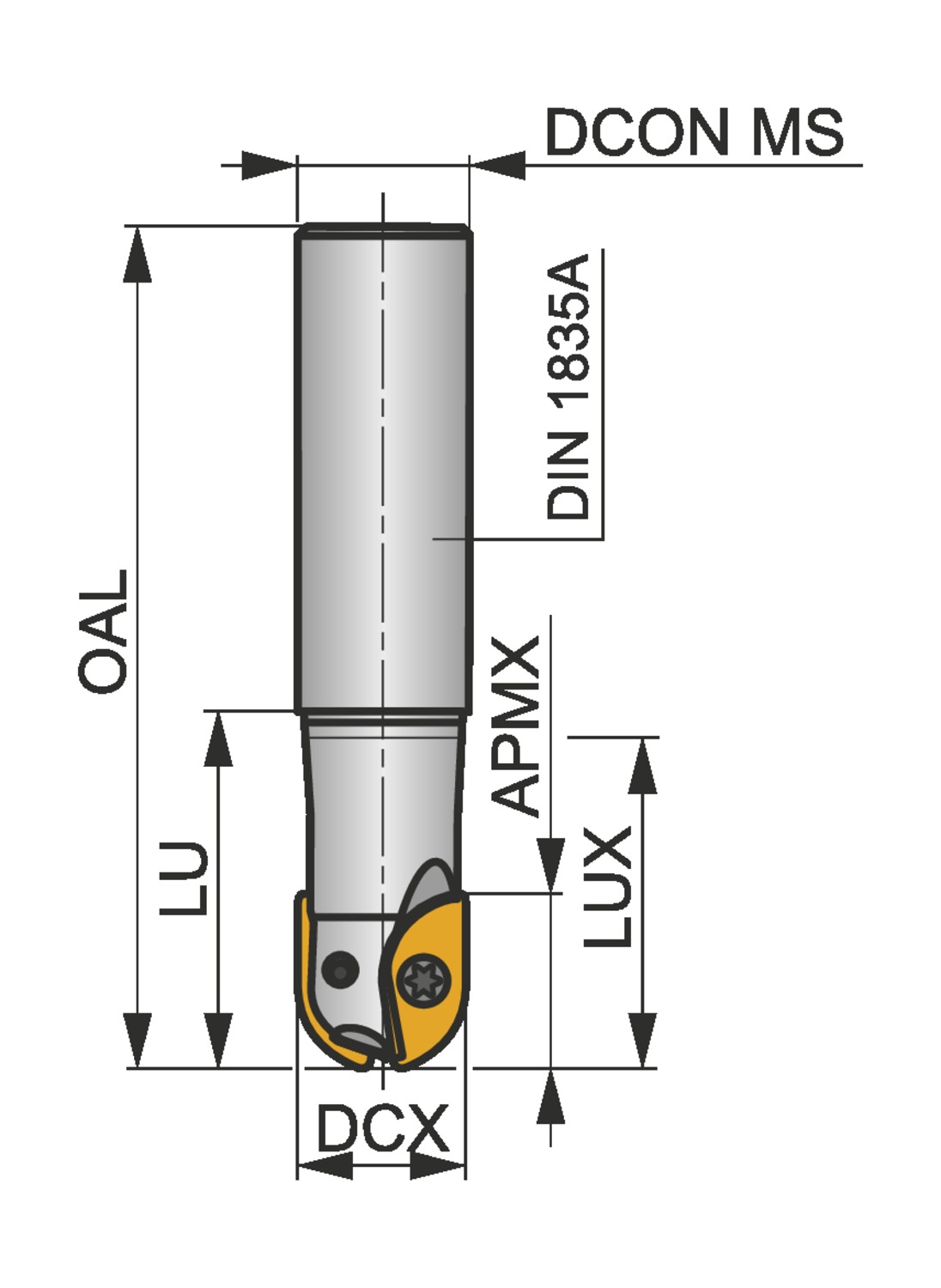

Cutting diameter maximum – millimeter (DCX): 10 mm
Overall length – millimeter (OAL): 160 mm
Connection diameter – millimeter (DCON MS): 16 mm
Usable Length – millimeter (LU): 50 mm
Usable Length maximum – millimeter (LUX): 22.3 mm
Connection size code machine side (CZC MS): –

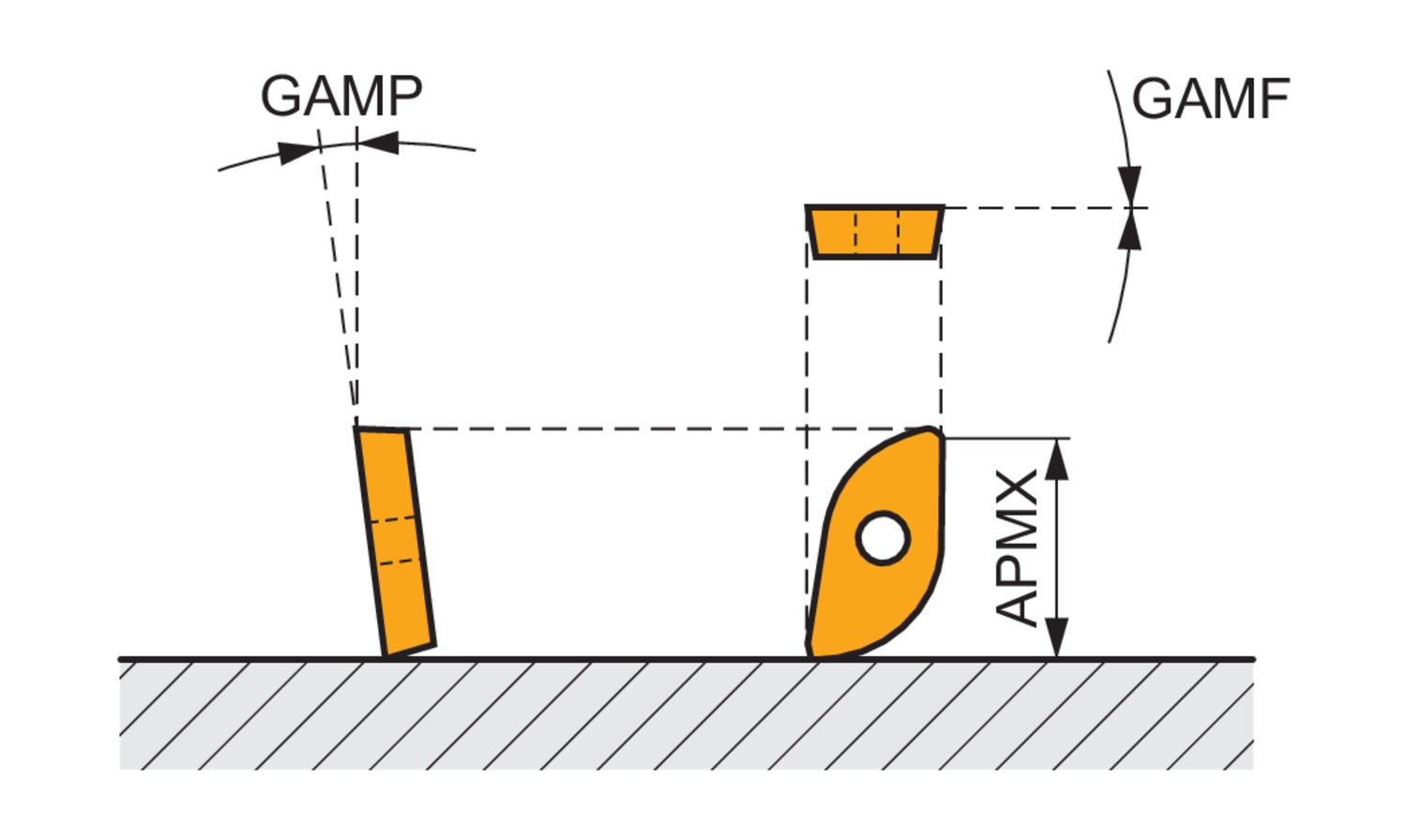

Depth of cut maximum – millimeter (APMX): 8.9 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 35800
Net weight – grams: 244.5
Insert index count (NOI): 2
ISO: 10L2R050A16-SZP10
