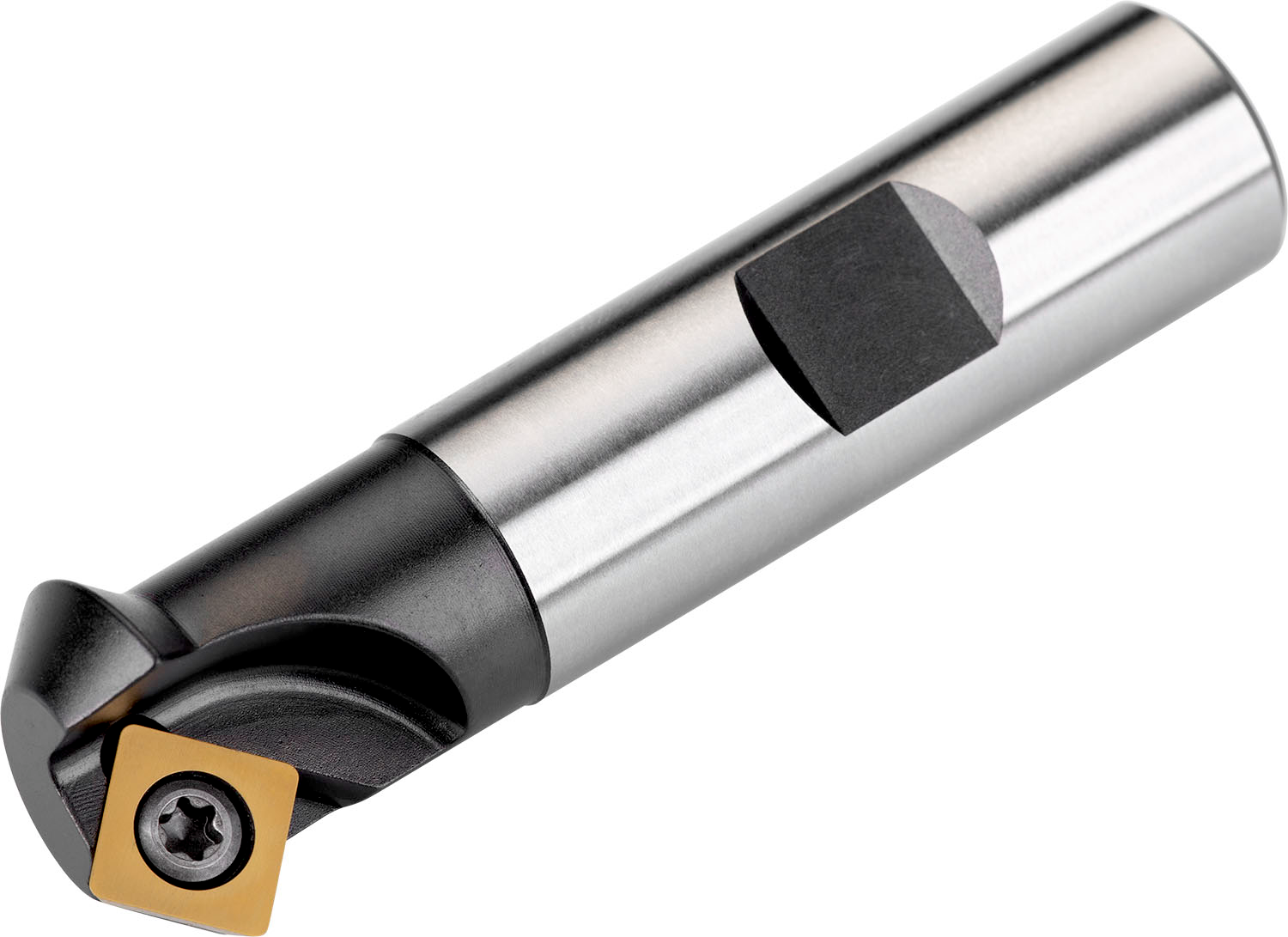

PRAMET 10N1R027B16-SSD09-A Milling cutters with clamping by screw

Description

Chamfer mill with double negative geometry which utilises 1 of SDEW 0903.. or SDEX 0903.. single-sided insert, cutting diameter 10 to maximum 22mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 75mm overall length for chamfering with a maximum depth of cut of 8.0mm

Additional information

Weight	0.3179 kg
Dimensions	Length 7.5cm x Width cm x Depth cm
barcode
Additional Information	Description: Value EAN number: 3603602931184 Product number (SAP): 84002966 Ordering code ANSI: 10N1R027B16-SSD09-A Gross weight – grams: 133.8 Cutting diameter – millimeter (DC): 10 mm Cutting diameter maximum – millimeter (DCX): 22 mm Overall length – millimeter (OAL): 75 mm Connection diameter – millimeter (DCON MS): 16 mm Usable Length – millimeter (LU): 27 mm Connection size code machine side (CZC MS): – Radial rake angle (GAMF): 0 Axial rake angle (GAMP): 0 Peripheral effective cutting edge count (ZEFP): 1 Rotational speed maximum (RPMX): 40700 Net weight – grams: 133.8 Cutter Design: SSD09 Insert index count (NOI): 1 ISO: 10N1R027B16-SSD09-A

PRAMET 10N1R027B16-SSD09-A Milling cutters with clamping by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
