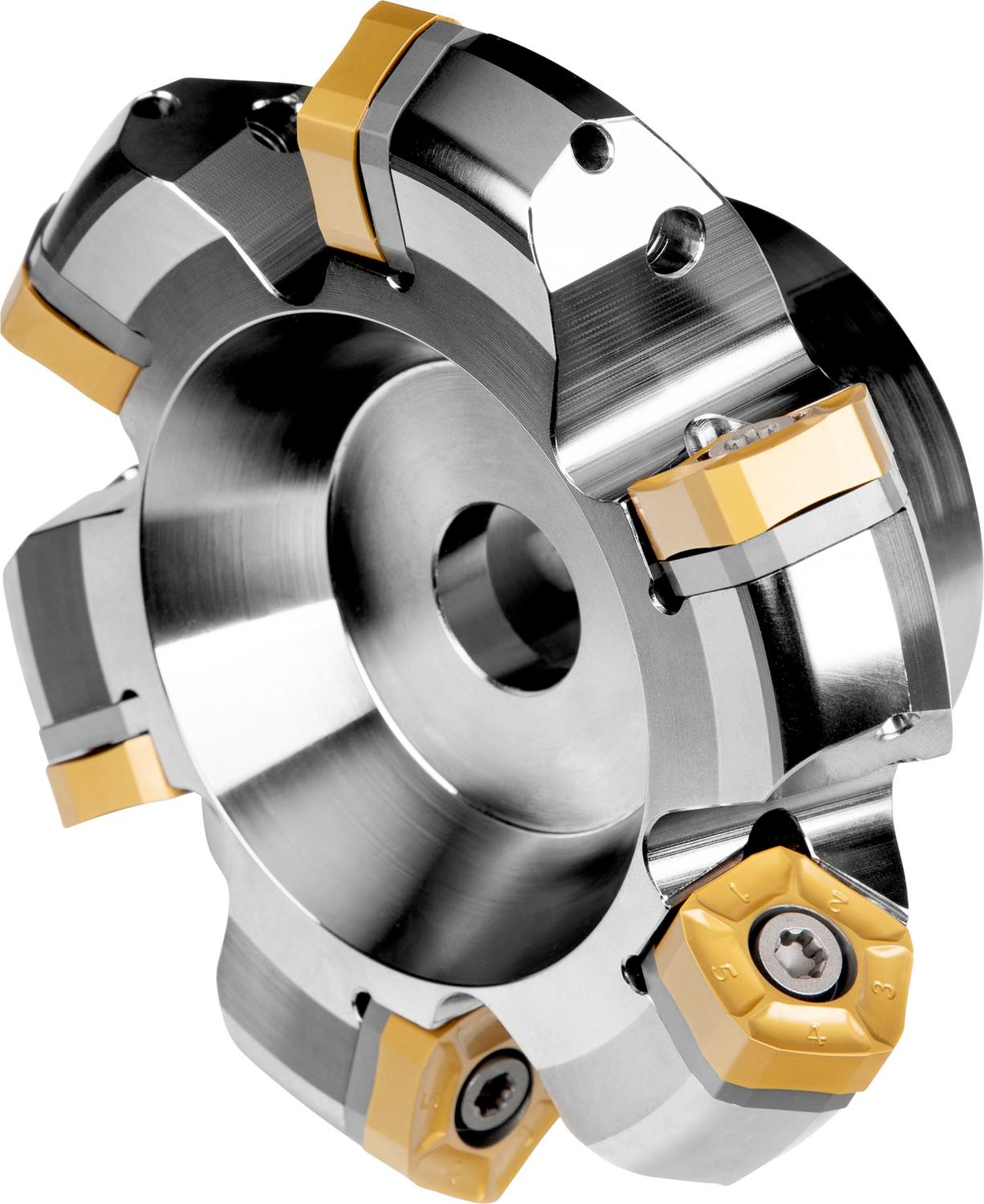

PRAMET 125A06R-S57PN13 Milling cutters with clamping by screw

Description: Value
EAN number: 3603602970190
Product number (SAP): 86007566
Ordering code ANSI: 125A06R-S57PN13
Product Line: PENTA HD
Gross weight – grams: 2797.4
Cutting diameter – millimeter (DC): 125 mm
Cutting diameter maximum – millimeter (DCX): 140.8 mm
Functional length – millimeter (LF): 63 mm
Connection diameter – millimeter (DCON MS): 40 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): -4
Peripheral effective cutting edge count (ZEFP): 6
Rotational speed maximum (RPMX): 3100
Net weight – grams: 2789.5
Cutter Design: SPN13
Insert index count (NOI): 6
ISO: 125A06R-S57PN13
