PRAMET 125A06R-SMORC20-C Milling cutters for D&M

Product Code: 125A06R-SMORC20-C

$1,052.56$956.87 Ex. GST

Product Code: 125A06R-SMORC20-C SKU 125A06R-SMORC20-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

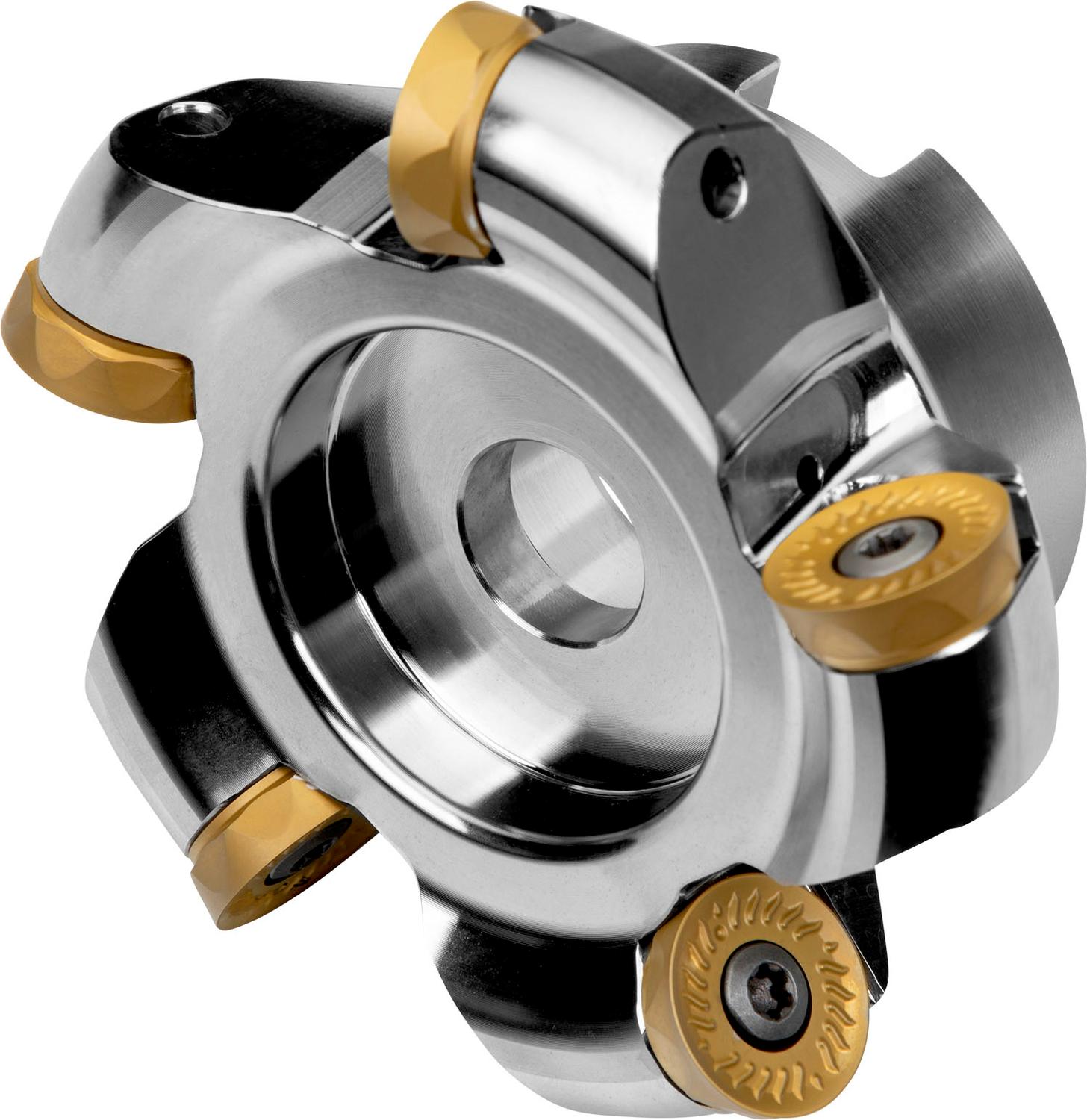

Copy face mill with double negative geometry which utilises 6 of RCMT 2006MO.. single-sided inserts, cutting diameter 125mm with 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 10.0mm

Additional information

Weight 1.0219 kg
barcode
Additional Information

Description: Value
EAN number: 3603603074132
Product number (SAP): 86025895
Ordering code ANSI: 125A06R-SMORC20-C
Gross weight – grams: 2916.4
Cutting diameter maximum – millimeter (DCX): 125 mm
Cutting diameter – millimeter (DC): 105 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 36 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -1
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 6
Rotational speed maximum (RPMX): 6500
Net weight – grams: 2916.4
Cutter Design: SRC20
Insert index count (NOI): 6
ISO: 125A06R-SMORC20-C

Brand

PRAMET
