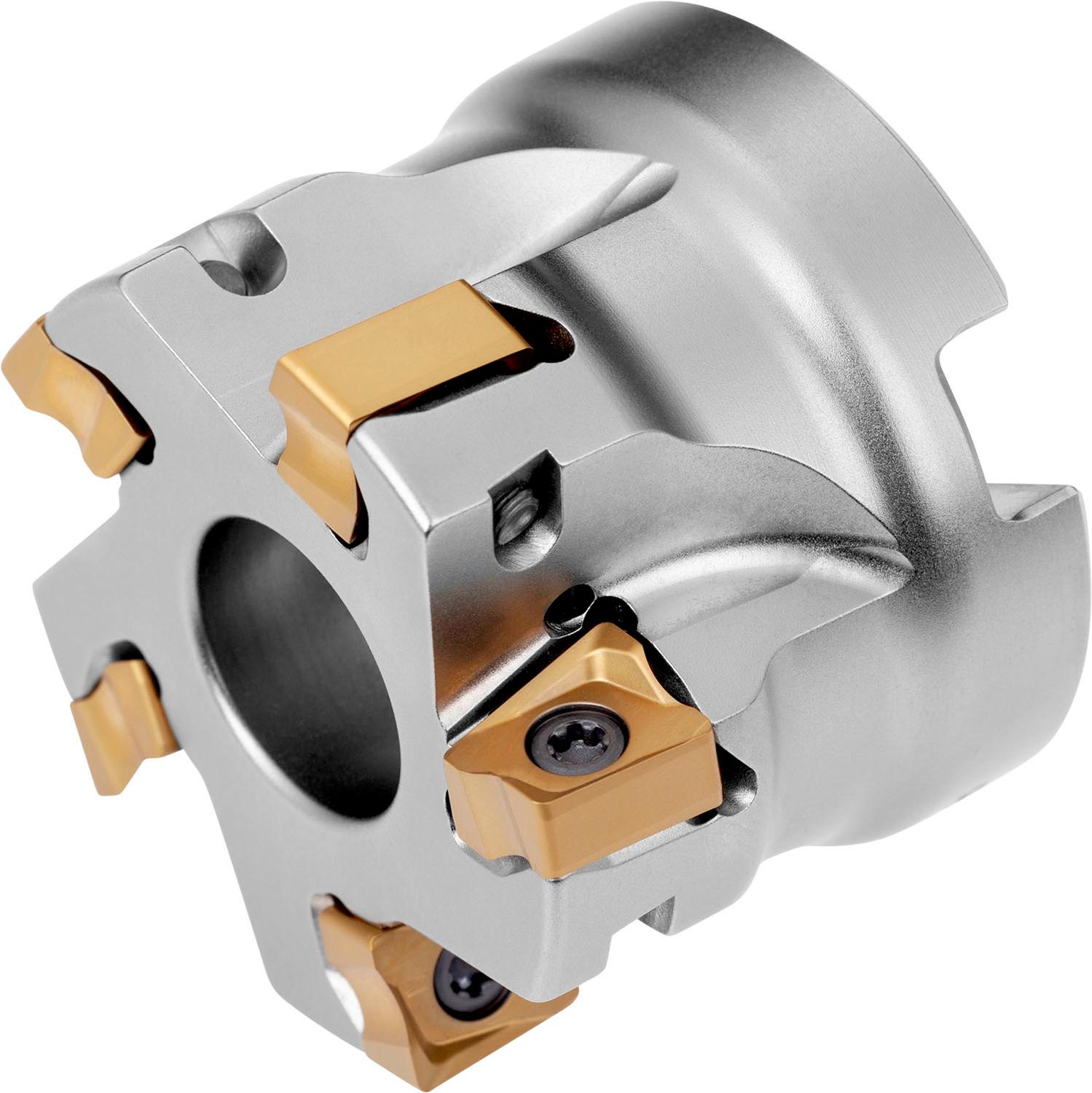

PRAMET 125A07R-S90LN12-C Milling cutters with clamping by screw

Product Code: 125A07R-S90LN12-C

$1,331.28$1,210.25 Ex. GST

Product Code: 125A07R-S90LN12-C SKU 125A07R-S90LN12-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 7 of LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 125mm with 90° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 1.2925 kg
barcode
Additional Information

Description: Value
EAN number: 3603602992505
Product number (SAP): 86007909
Ordering code ANSI: 125A07R-S90LN12-C
Product Line: ECON LN
Gross weight – grams: 3402.3
Cutting diameter – millimeter (DC): 125 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -14
Axial rake angle (GAMP): -6
Peripheral effective cutting edge count (ZEFP): 7
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 8700
Net weight – grams: 3402.3
Cutter Design: SLN12
Insert index count (NOI): 7
ISO: 125A07R-S90LN12-C

Brand

PRAMET
