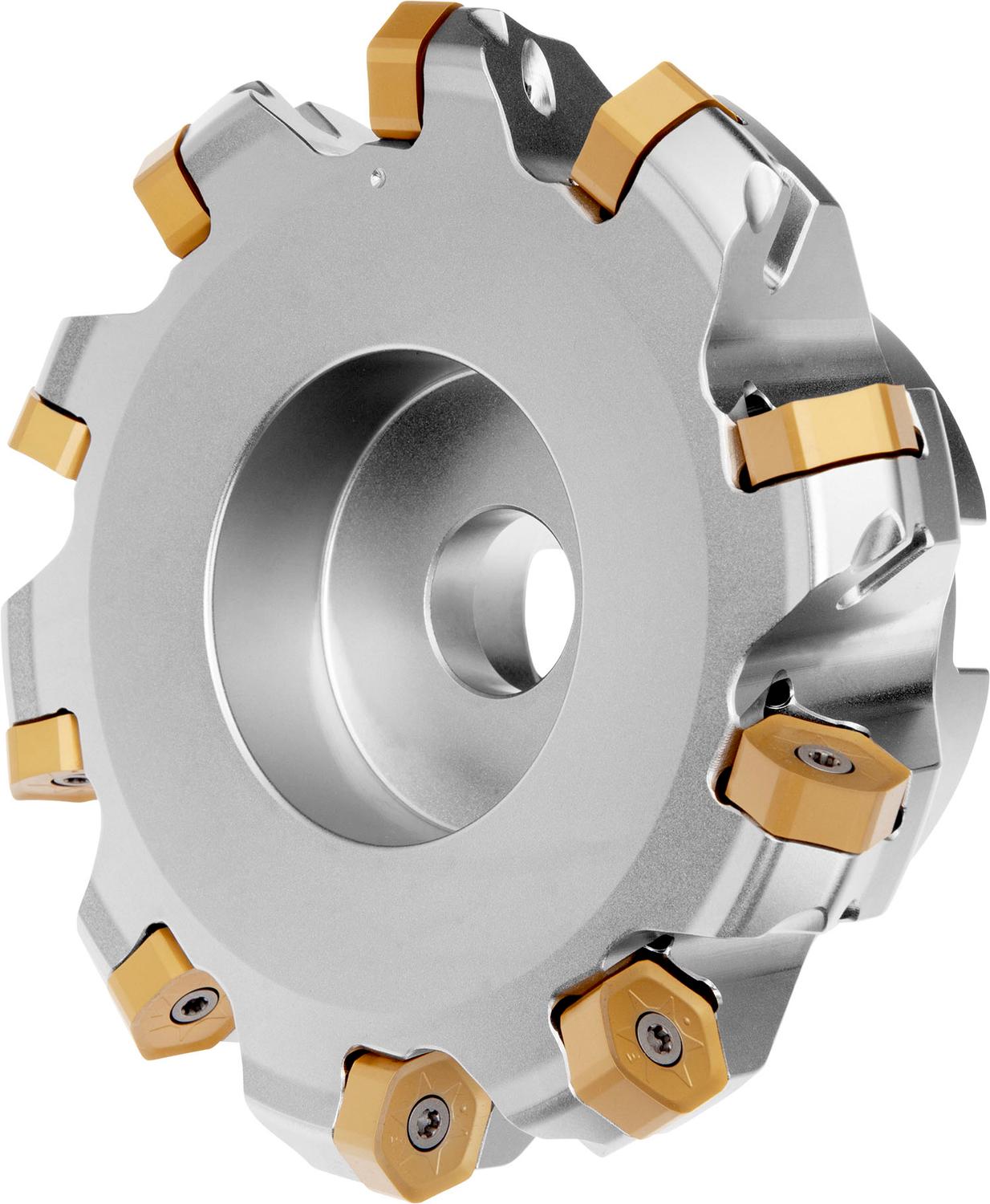

PRAMET 125A08R-S45HN09C-CF Milling cutters with clamping by screw

Product Code: 125A08R-S45HN09C-CF

$1,557.88$1,416.25 Ex. GST

Product Code: 125A08R-S45HN09C-CF SKU 125A08R-S45HN09C-CF Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with double negative geometry which utilises 8 of HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 125 to maximum 136.7mm with 45° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 5.0mm

Additional information

Weight 1.5125 kg
barcode
Additional Information

Description: Value
EAN number: 3603603116122
Product number (SAP): 86027031
Ordering code ANSI: 125A08R-S45HN09C-CF
Product Line: ECON HN
Gross weight – grams: 3655.2
Cutting diameter – millimeter (DC): 125 mm
Cutting diameter maximum – millimeter (DCX): 136.7 mm
Functional length – millimeter (LF): 63 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 4900
Net weight – grams: 3651
Cutter Design: SHN09C
Insert index count (NOI): 8
ISO: 125A08R-S45HN09C-CF

Brand

PRAMET
