PRAMET 125A08R-S45ON06-C Milling cutters with clamping by screw

Product Code: 125A08R-S45ON06-C

$1,557.88$1,416.25 Ex. GST

Product Code: 125A08R-S45ON06-C SKU 125A08R-S45ON06-C Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

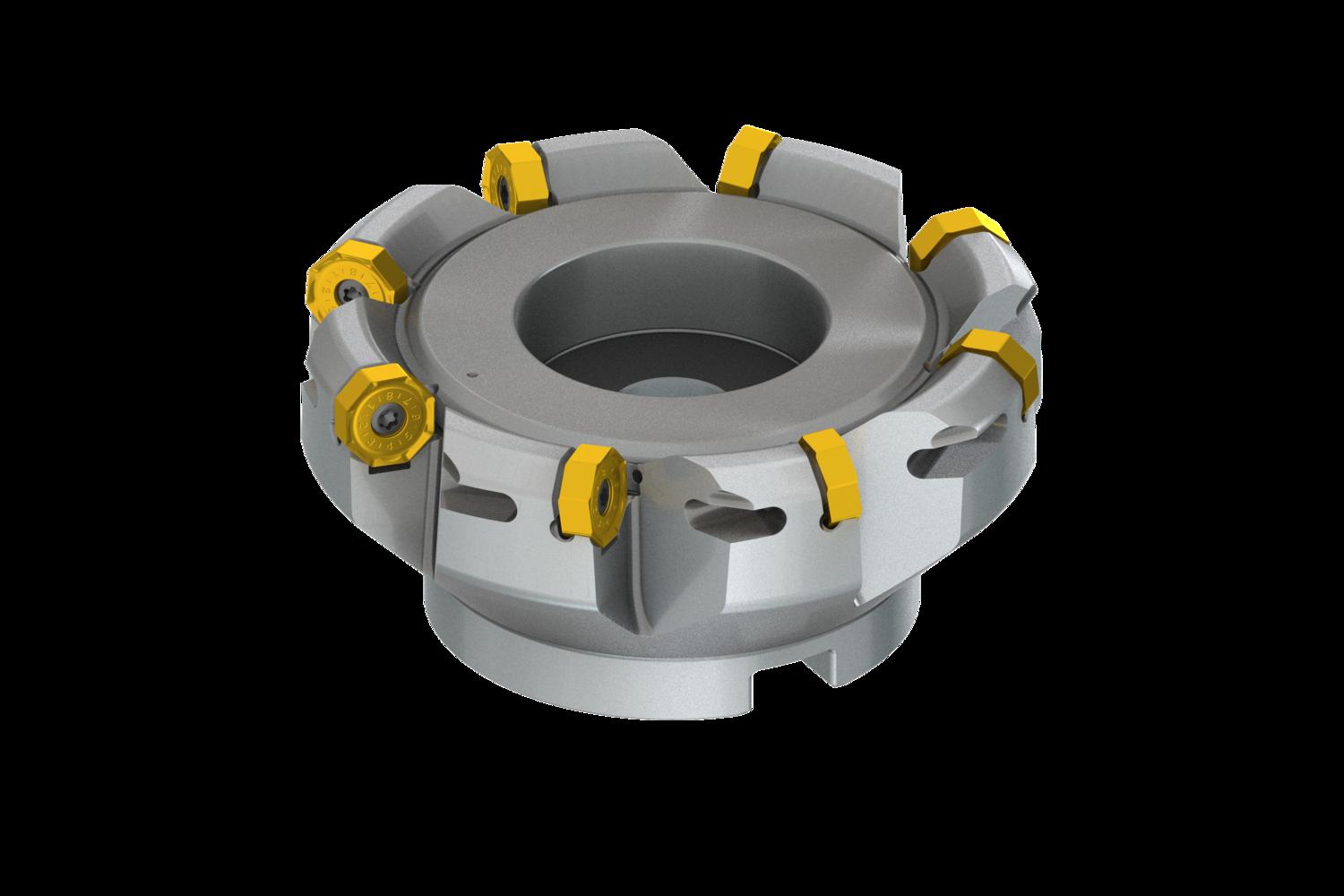

Face mill with double negative geometry which utilises 8 of ONMX 0605.., ONMX 0605..-W or SNMX 1705.. double-sided inserts, cutting diameter 125mm to maximum 135.8mm with 43° approach angle and 40mm connection bore according to DIN 8030-A, 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm

Additional information

Weight 3.7981 kg
barcode

3603604105354

Additional Information

Description: Value
EAN number: 3603604105354
Product number (SAP): 86042975
Ordering code ANSI: 125A08R-S45ON06-C
Gross weight – grams: 3805.1
Cutting diameter – millimeter (DC): 125 mm
Cutting diameter maximum – millimeter (DCX): 135.8 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56.1 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm

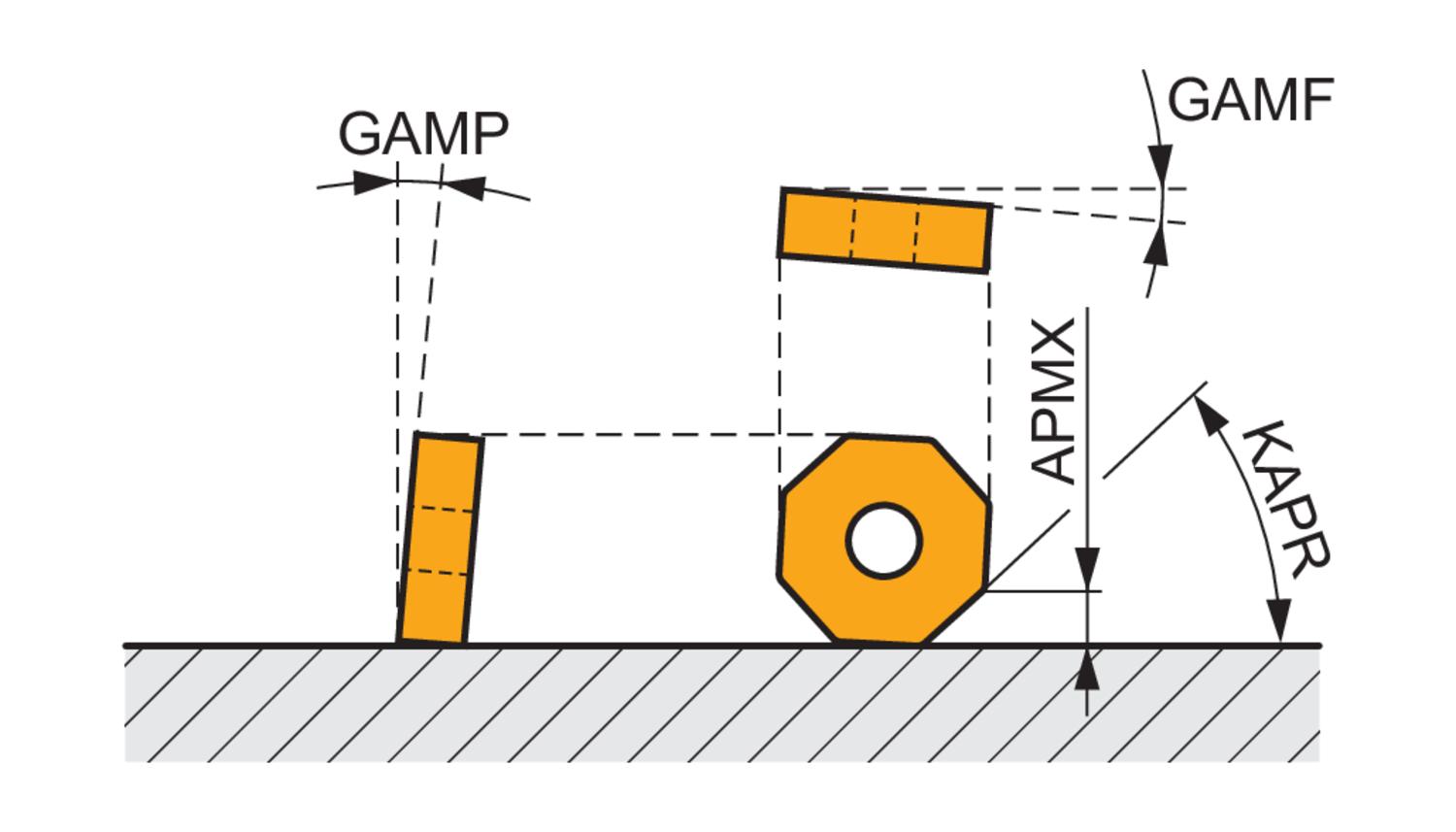

Radial rake angle (GAMF): -10
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 6000
Net weight – grams: 3798.1
Cutter Design: SON06C
ISO: 125A08R-S45ON06-C
