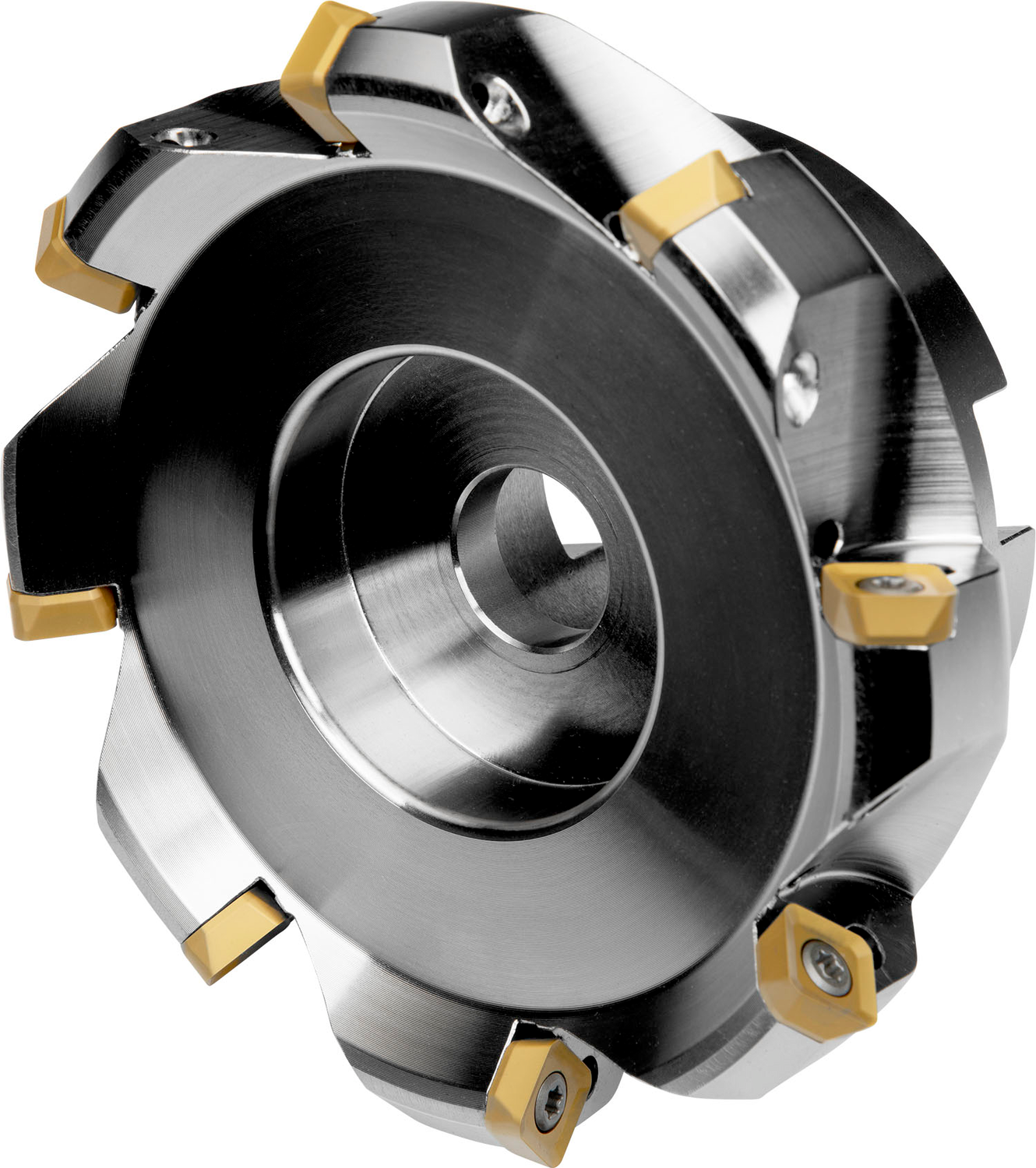

PRAMET 125A08R-S45SN12Z-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602936899
Product number (SAP): 84004774
Ordering code ANSI: 125A08R-S45SN12Z-C
Gross weight – grams: 3430.5
Cutting diameter – millimeter (DC): 125 mm
Cutting diameter maximum – millimeter (DCX): 140 mm
Functional length – millimeter (LF): 63 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -5.5
Axial rake angle (GAMP): 7.5
Peripheral effective cutting edge count (ZEFP): 8
Rotational speed maximum (RPMX): 6100
Net weight – grams: 3425
Cutter Design: SSN12Z
Insert index count (NOI): 8
ISO: 125A08R-S45SN12Z-C
