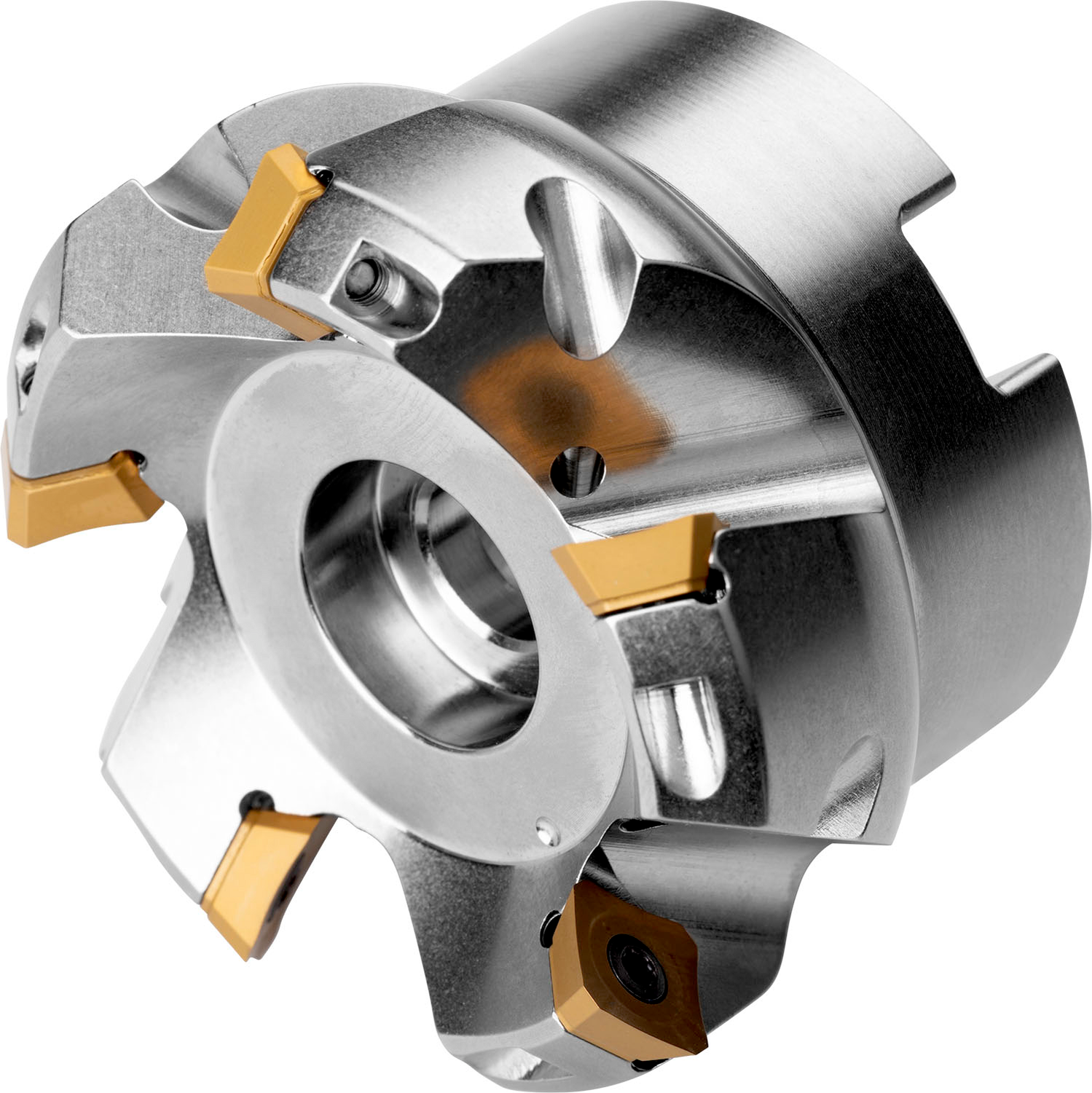

PRAMET 125A09R-S45SE09F-C Milling cutters with clamping by screw

Product Code: 125A09R-S45SE09F-C

$1,410.59$1,282.35 Ex. GST

Product Code: 125A09R-S45SE09F-C SKU 125A09R-S45SE09F-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with positve/negative geometry which utilises 9 of SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 125 to maximum 134.5mm with 45° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 4.5mm

Additional information

Weight 1.3695 kg
barcode
Additional Information

Description: Value
EAN number: 3603602970169
Product number (SAP): 86007562
Ordering code ANSI: 125A09R-S45SE09F-C
Gross weight – grams: 3989.5
Cutting diameter – millimeter (DC): 125 mm
Cutting diameter maximum – millimeter (DCX): 134.5 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 60 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -5
Axial rake angle (GAMP): 20
Peripheral effective cutting edge count (ZEFP): 9
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 9800
Net weight – grams: 3870
Cutter Design: SSE09
Insert index count (NOI): 9
ISO: 125A09R-S45SE09F-C

Brand

PRAMET
