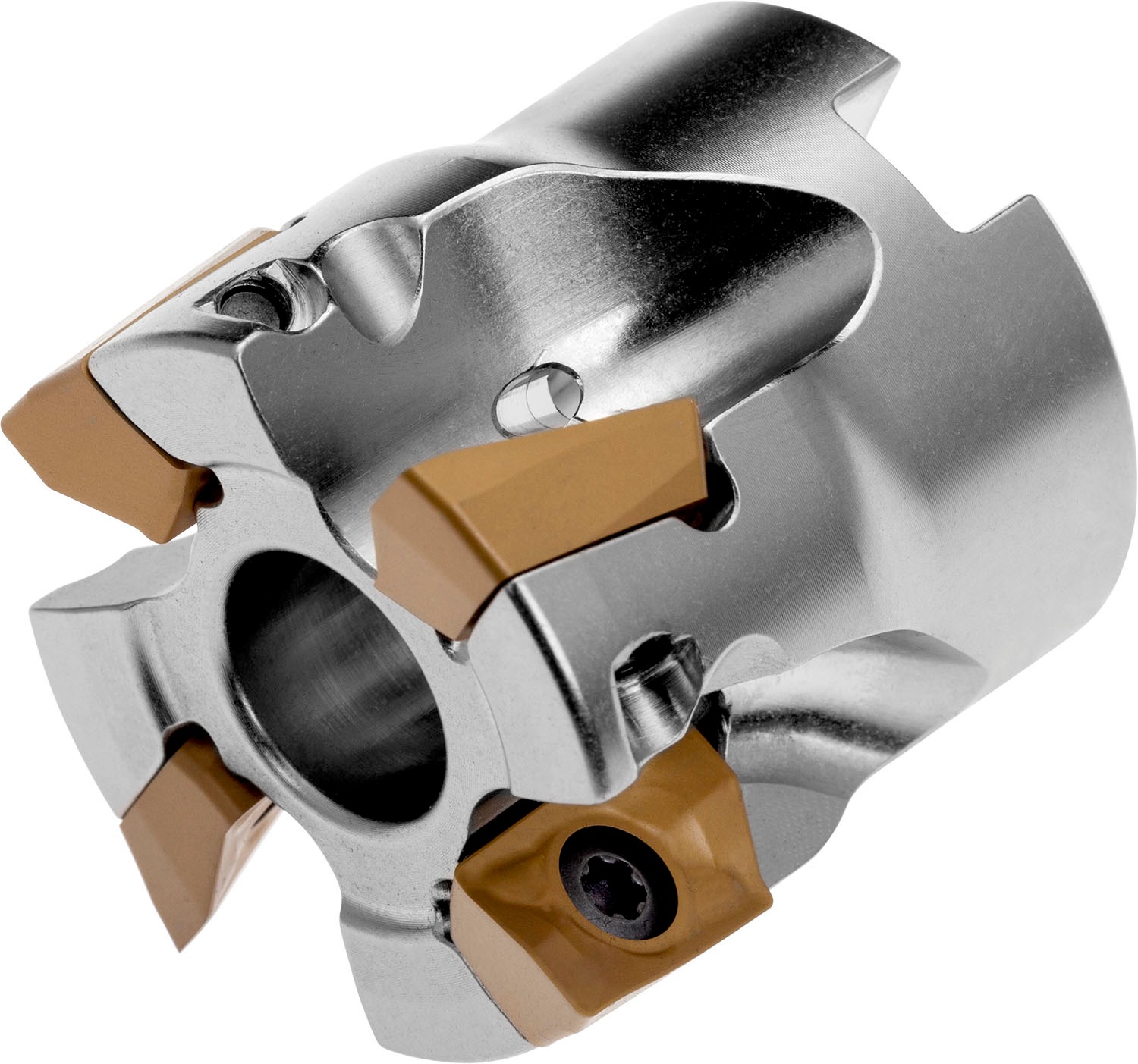

PRAMET 125A09R-S90AD16E-C Milling cutters with clamping by screw

Product Code: 125A09R-S90AD16E-C

$1,614.53$1,467.75 Ex. GST

Product Code: 125A09R-S90AD16E-C SKU 125A09R-S90AD16E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 9 of ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 125mm with 90° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 1.5675 kg
barcode
Additional Information

Description: Value
EAN number: 3603602955357
Product number (SAP): 86000416
Ordering code ANSI: 125A09R-S90AD16E-C
Product Line: FORCE AD
Gross weight – grams: 3651.8
Cutting diameter – millimeter (DC): 125 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56 mm
Functional length – millimeter (LF): 63 mm
Connection size code machine side (CZC MS): –
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -3.8
Axial rake angle (GAMP): 12
Peripheral effective cutting edge count (ZEFP): 9
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 8400
Net weight – grams: 3631.3
Cutter Design: SAD16E
Insert index count (NOI): 9
ISO: 125A09R-S90AD16E-C

Brand

PRAMET
