Description: Value
EAN number: 3603603844575
Product number (SAP): 86037889
Ordering code ANSI: 125A09R-S90TN16-C
Product Line: ECON TN
Gross weight – grams: 3297.1

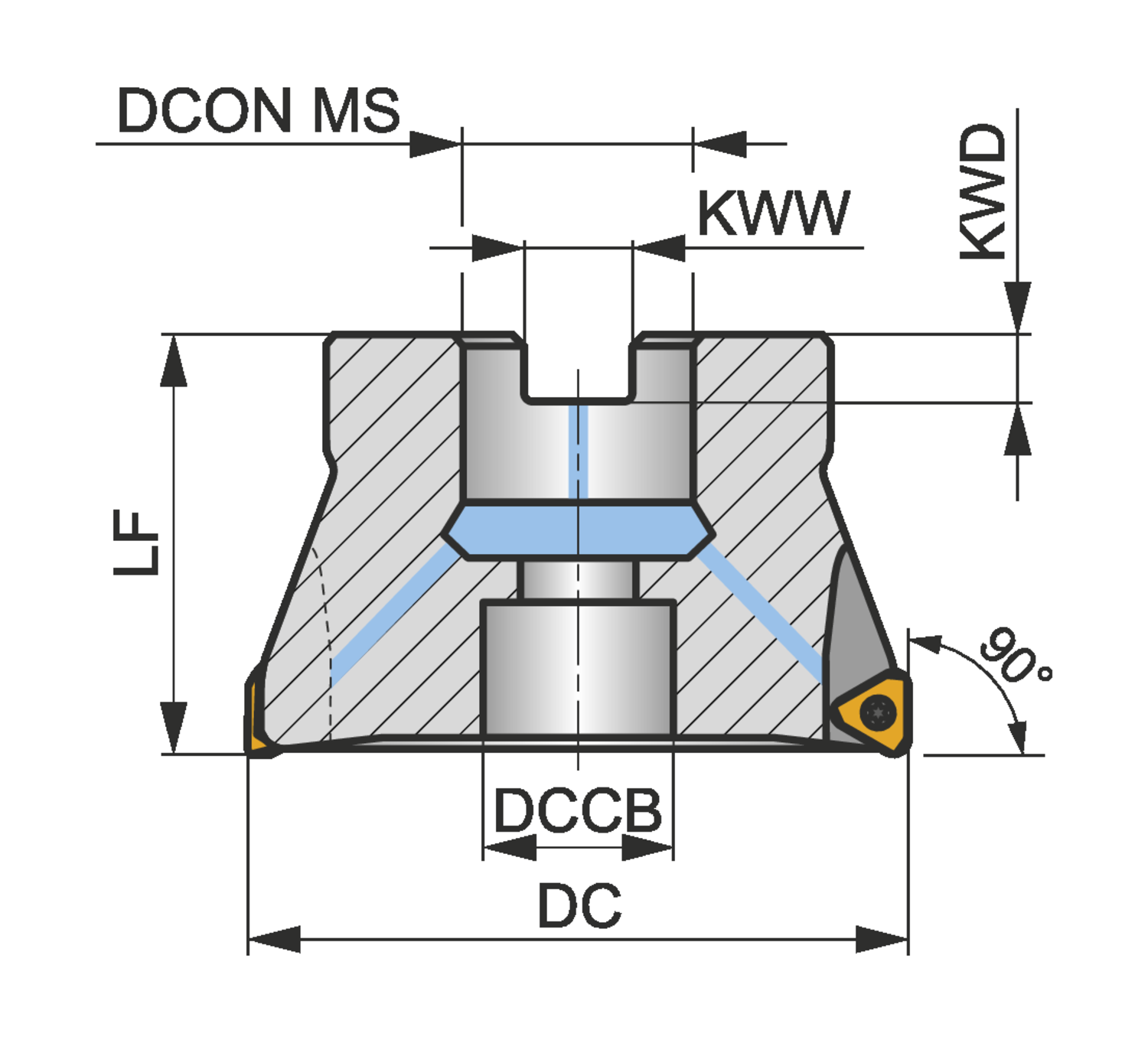

Cutting diameter – millimeter (DC): 125 mm
Overall length – millimeter (OAL): 63 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56.1 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 9
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 9000
Net weight – grams: 3141
Cutter Design: STN16
Insert index count (NOI): 9
ISO: 125A09R-S90TN16-C
|
