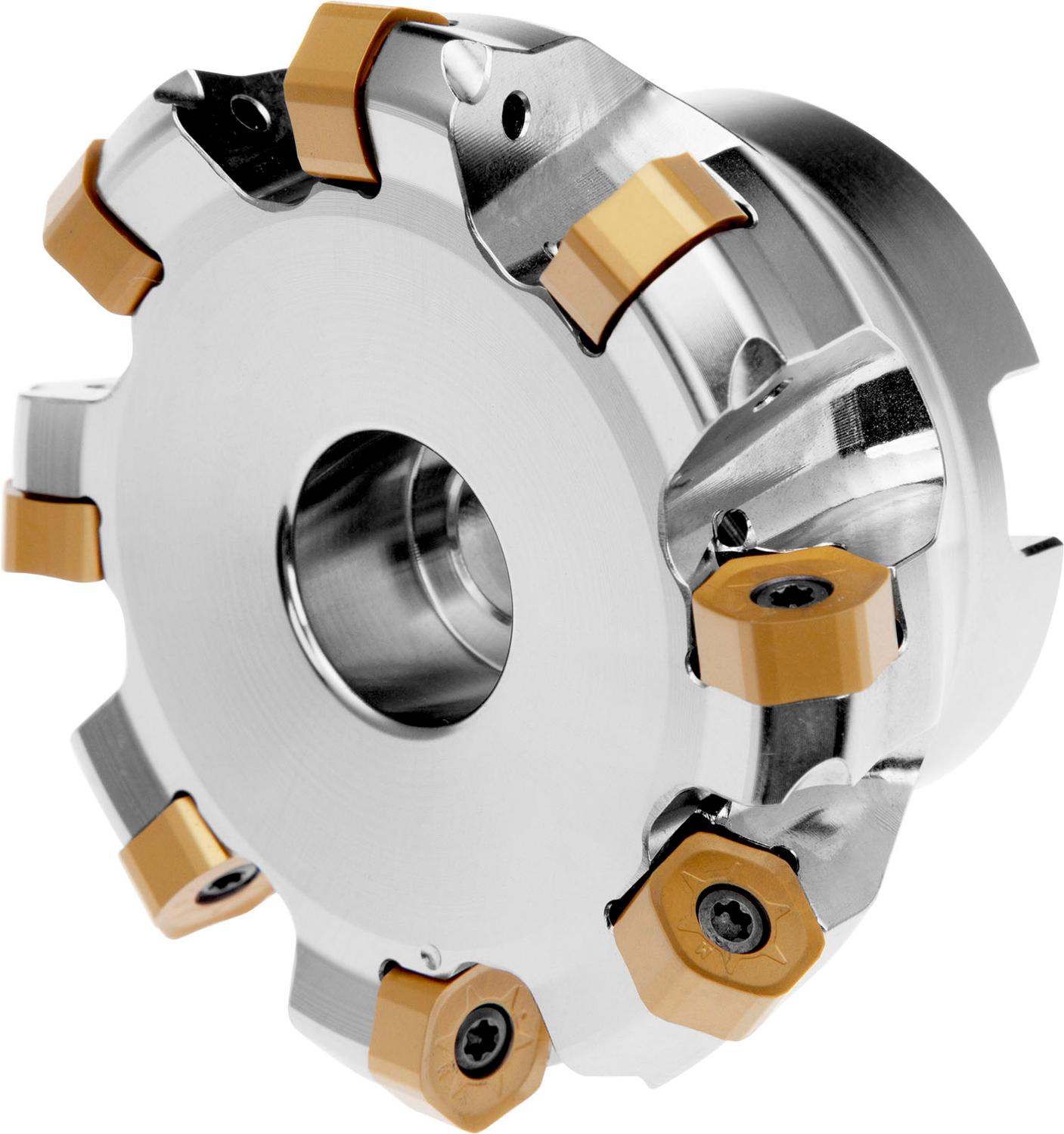

PRAMET 125A10R-S45HN06C-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602956217
Product number (SAP): 86001047
Ordering code ANSI: 125A10R-S45HN06C-C
Product Line: ECON HN
Gross weight – grams: 3550.1
Cutting diameter – millimeter (DC): 125 mm
Cutting diameter maximum – millimeter (DCX): 132.2 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 10
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 7800
Net weight – grams: 3530.5
Cutter Design: SHN06C
Insert index count (NOI): 10
ISO: 125A10R-S45HN06C-C
