PRAMET 125A10R-SMOSO12-C

Description

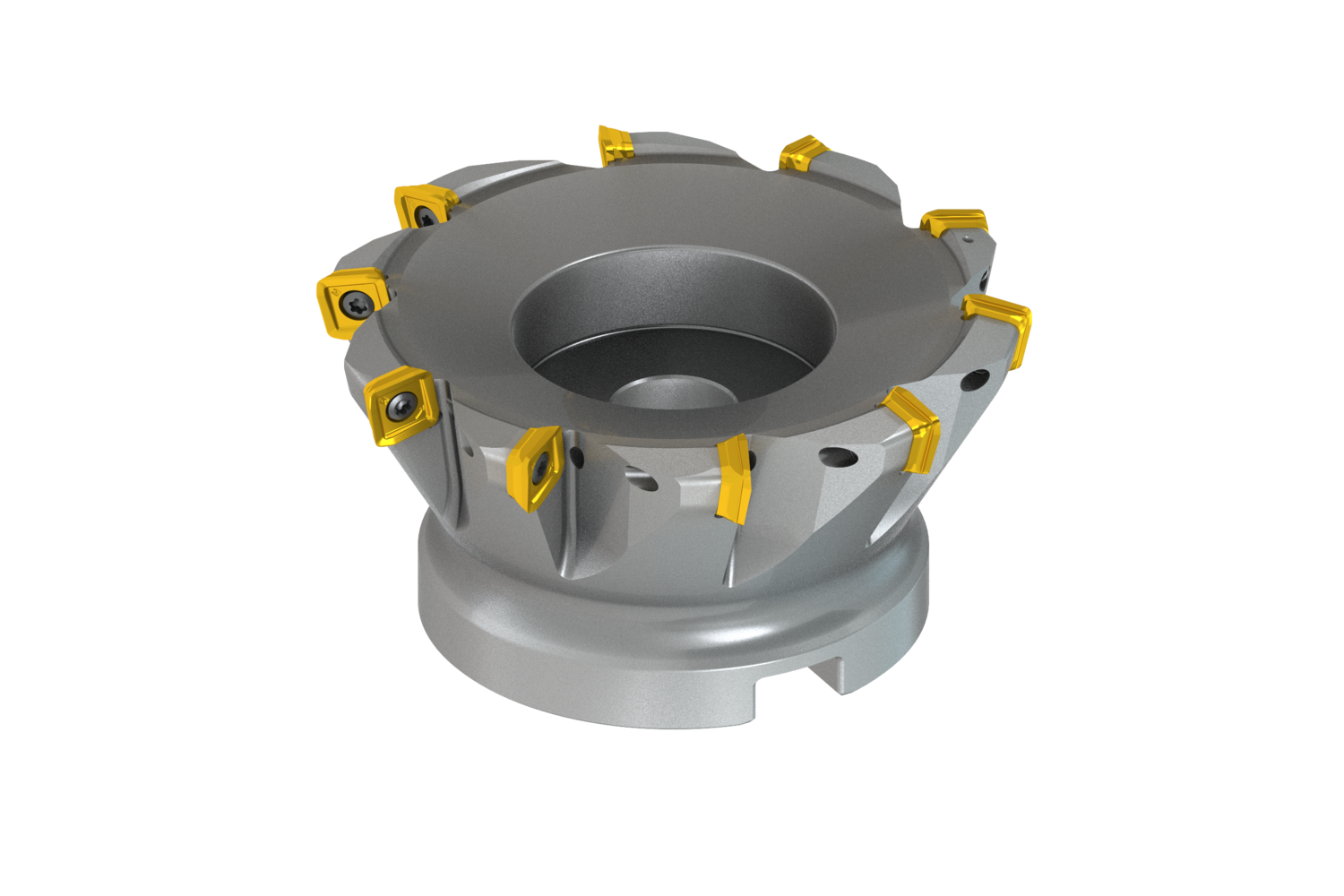

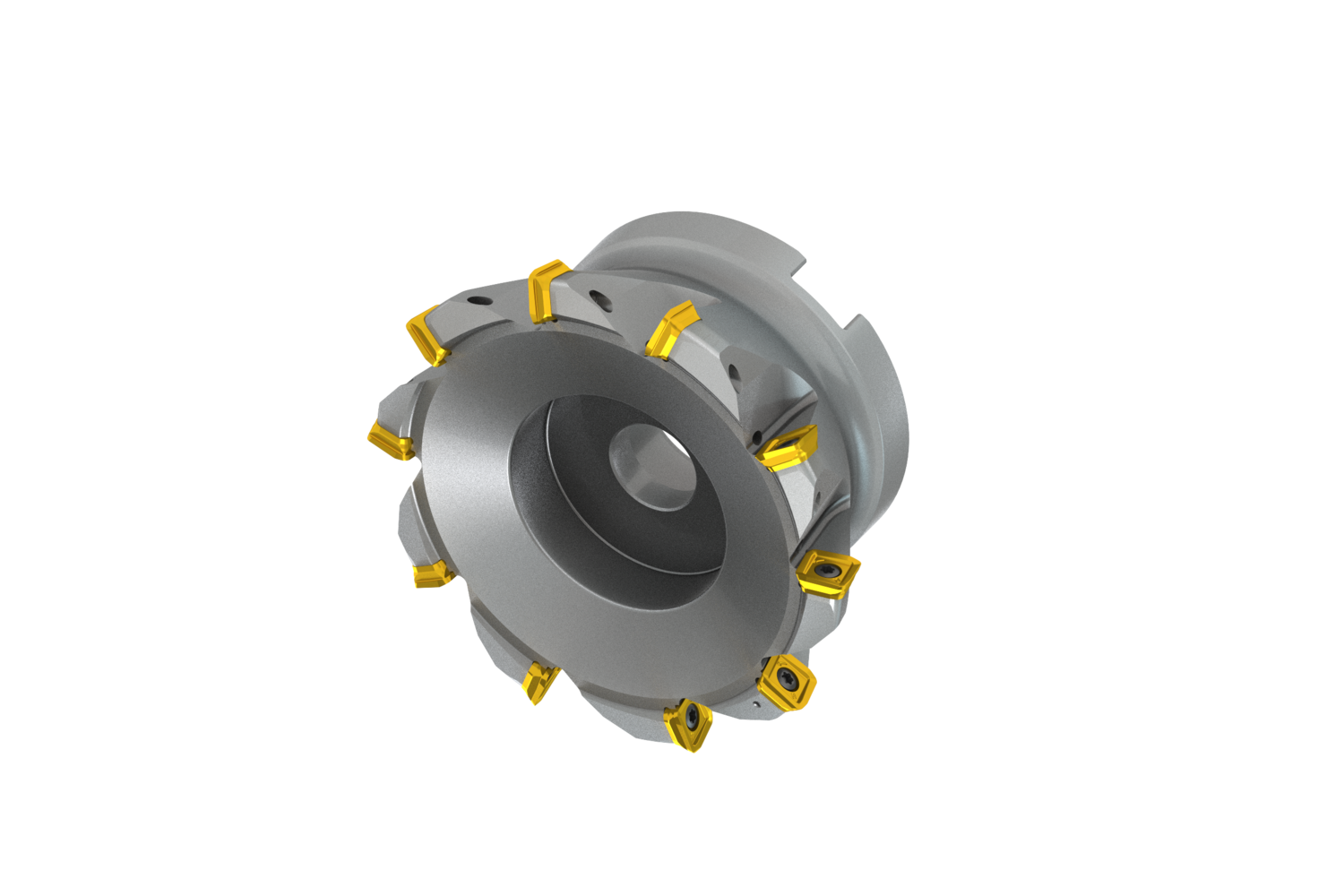

Highly versatile 12˚ high feed mill utilising single sided SO.. 12 style inserts with APMX of 1,9 mm Cutting diameter 107.3 mm with 12° approach angle and 40 mm connection bore according to DIN 8030-C, 63 mm functional length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling

Additional information

Weight	2.4600 kg
barcode	3603604263283

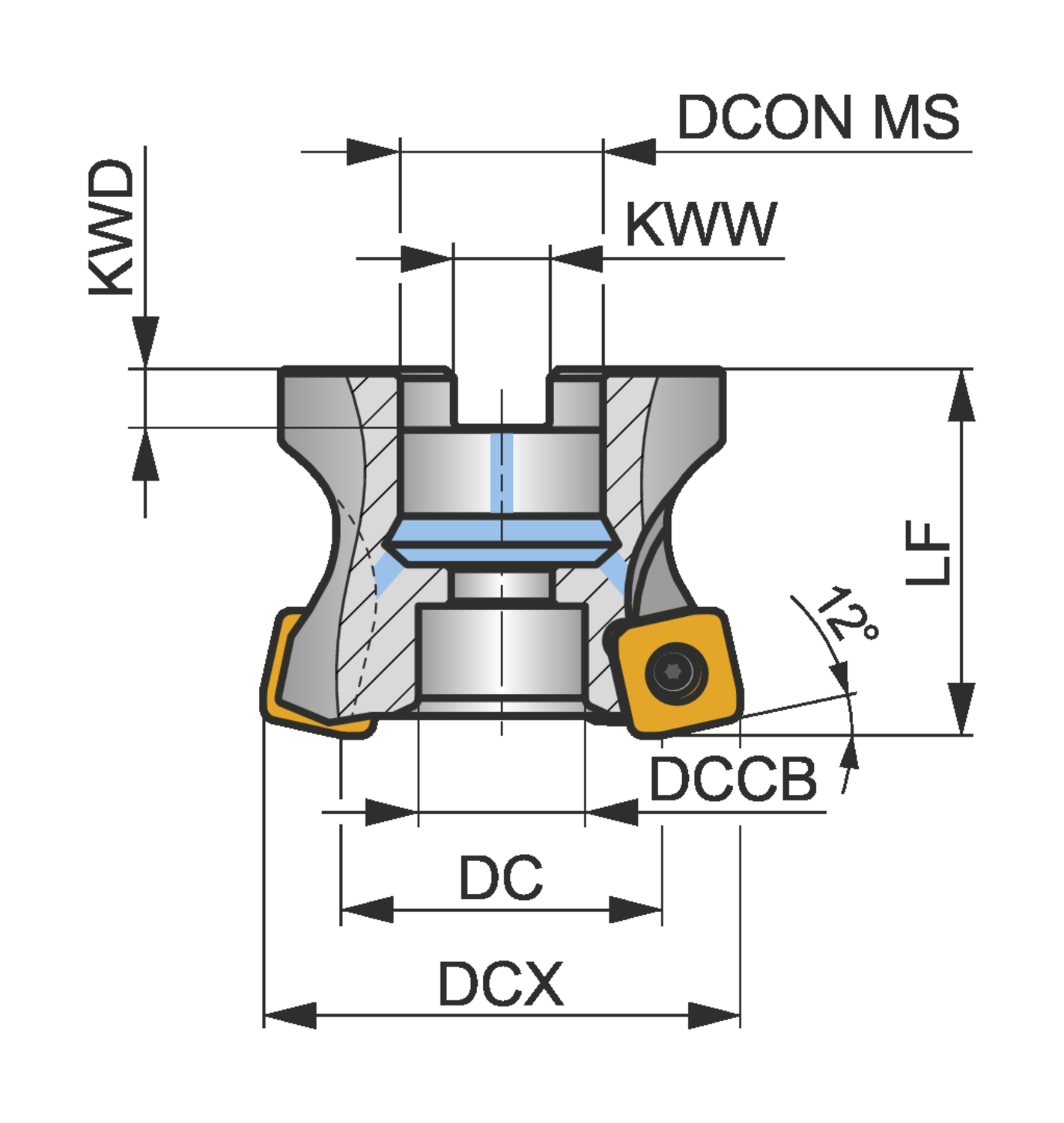

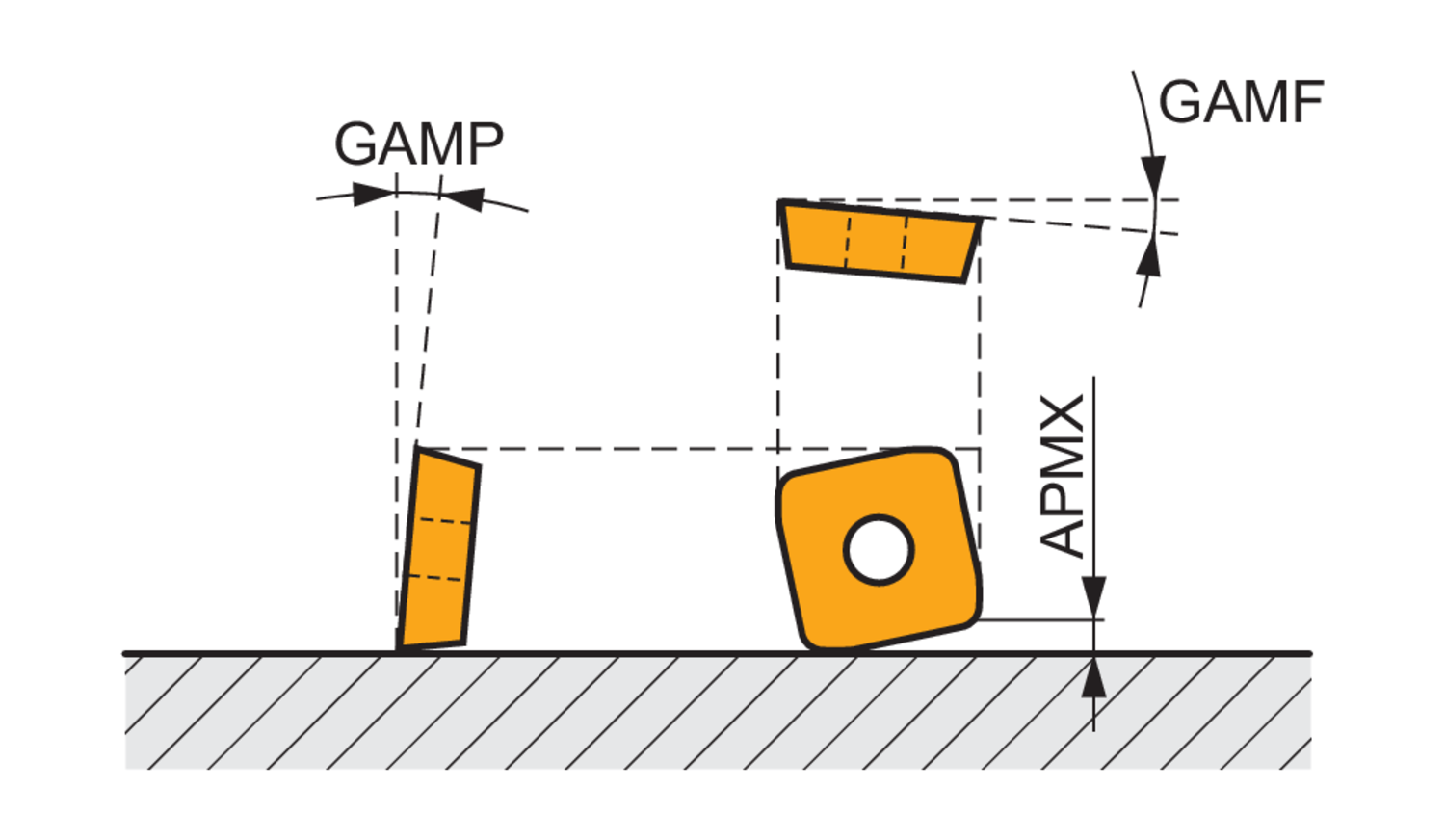

Additional Information	Description: Value EAN number: 3603604263283 Product number (SAP): 86045463 Ordering code ANSI: 125A10R-SMOSO12-C Gross weight – grams: 2624.4 Cutting diameter – millimeter (DC): 107.3 mm Connection diameter – millimeter (DCON MS): 40 mm Counterbore diameter connection bore – millimeter (DCCB): 56.1 mm Functional length – millimeter (LF): 63 mm Keyway width – millimeter (KWW): 16.4 mm Keyway depth – millimeter (KWD): 9 mm Radial rake angle (GAMF): -5 Axial rake angle (GAMP): 5 Peripheral effective cutting edge count (ZEFP): 10 Cutting pitch differential (CPDF): Yes Rotational speed maximum (RPMX): 8300 Net weight – grams: 2460 Cutter Design: SSO12 ISO: 125A10R-SMOSO12-C
