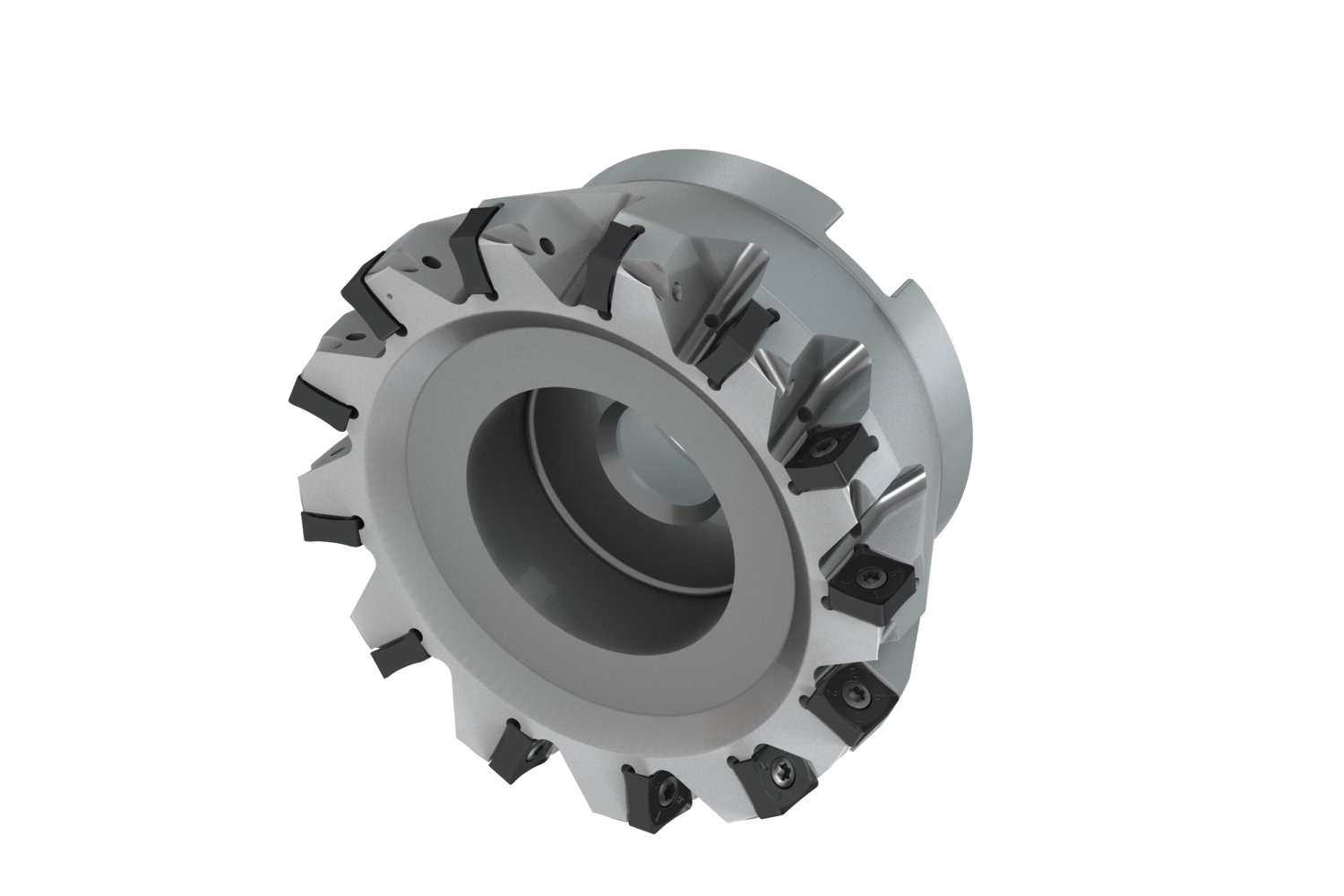

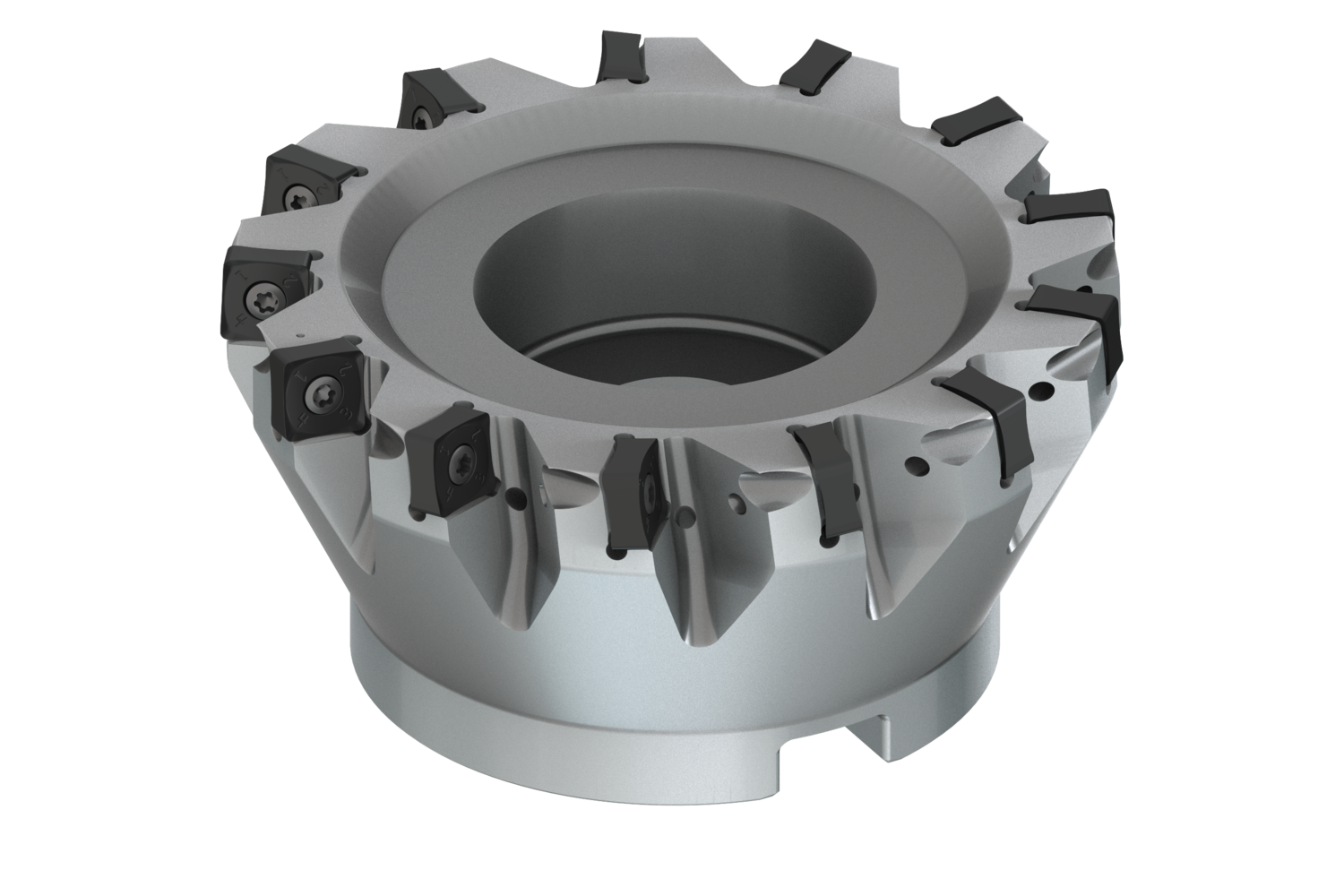

PRAMET 125A13R-S88SN12-C Milling Cutters

Description: Value
EAN number: 3603604144414
Product number (SAP): 86043820
Ordering code ANSI: 125A13R-S88SN12-C
Gross weight – grams: 3231

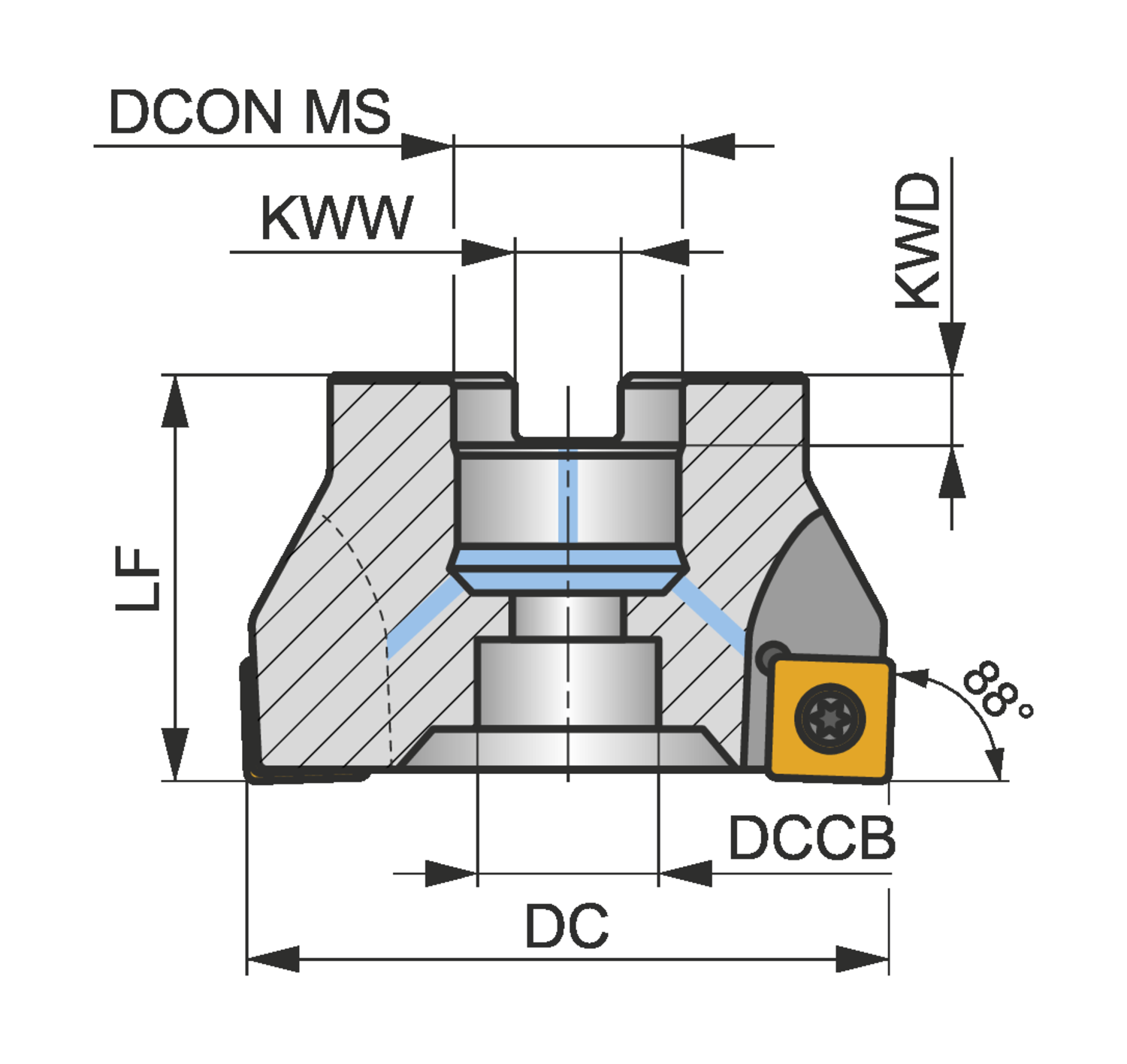

Cutting diameter – millimeter (DC): 125 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm

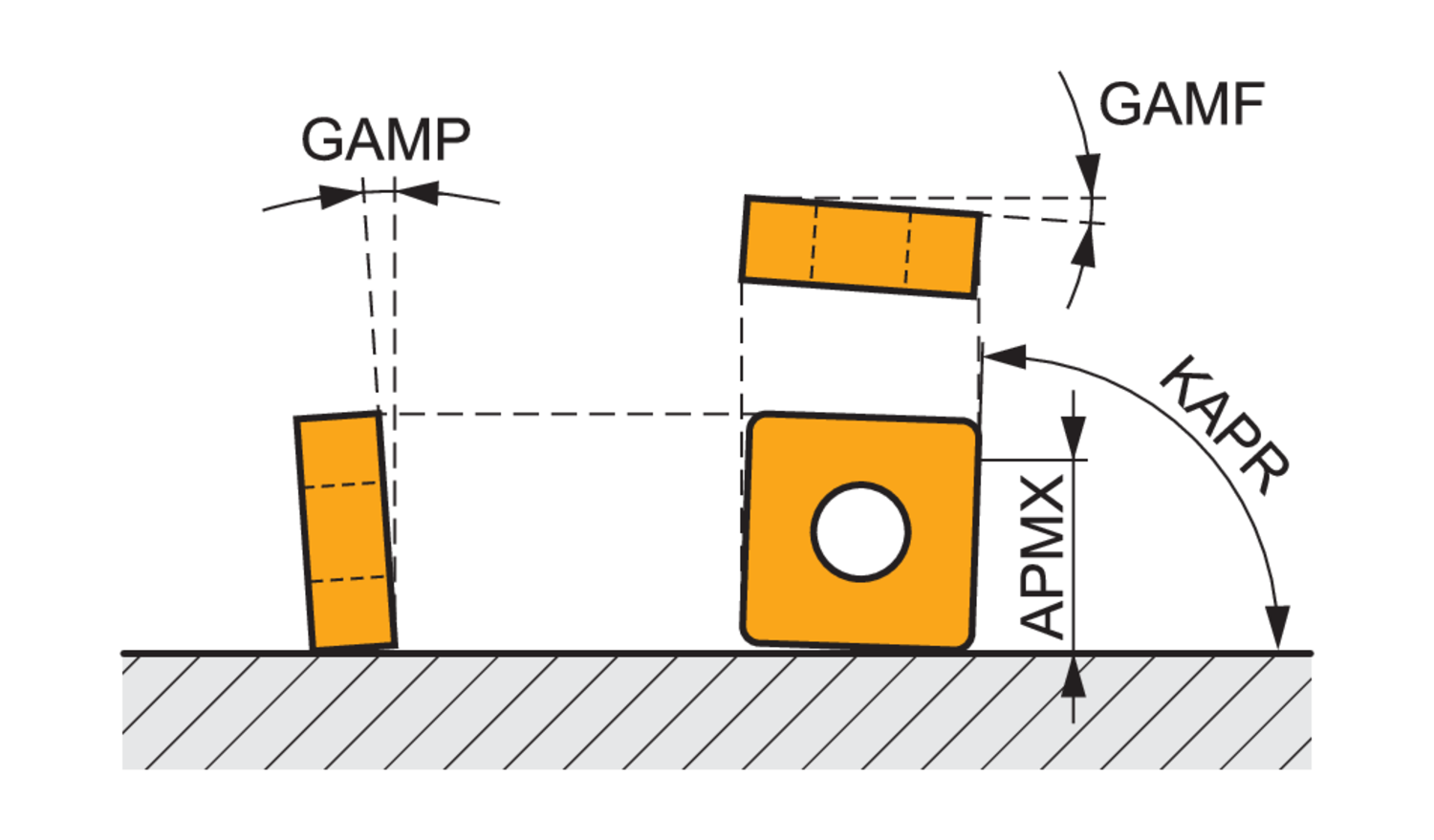

Radial rake angle (GAMF): -8
Axial rake angle (GAMP): -8
Peripheral effective cutting edge count (ZEFP): 13
Rotational speed maximum (RPMX): 7900
Net weight – grams: 2985
Cutter Design: SSN12
ISO: 125A13R-S88SN12-C
