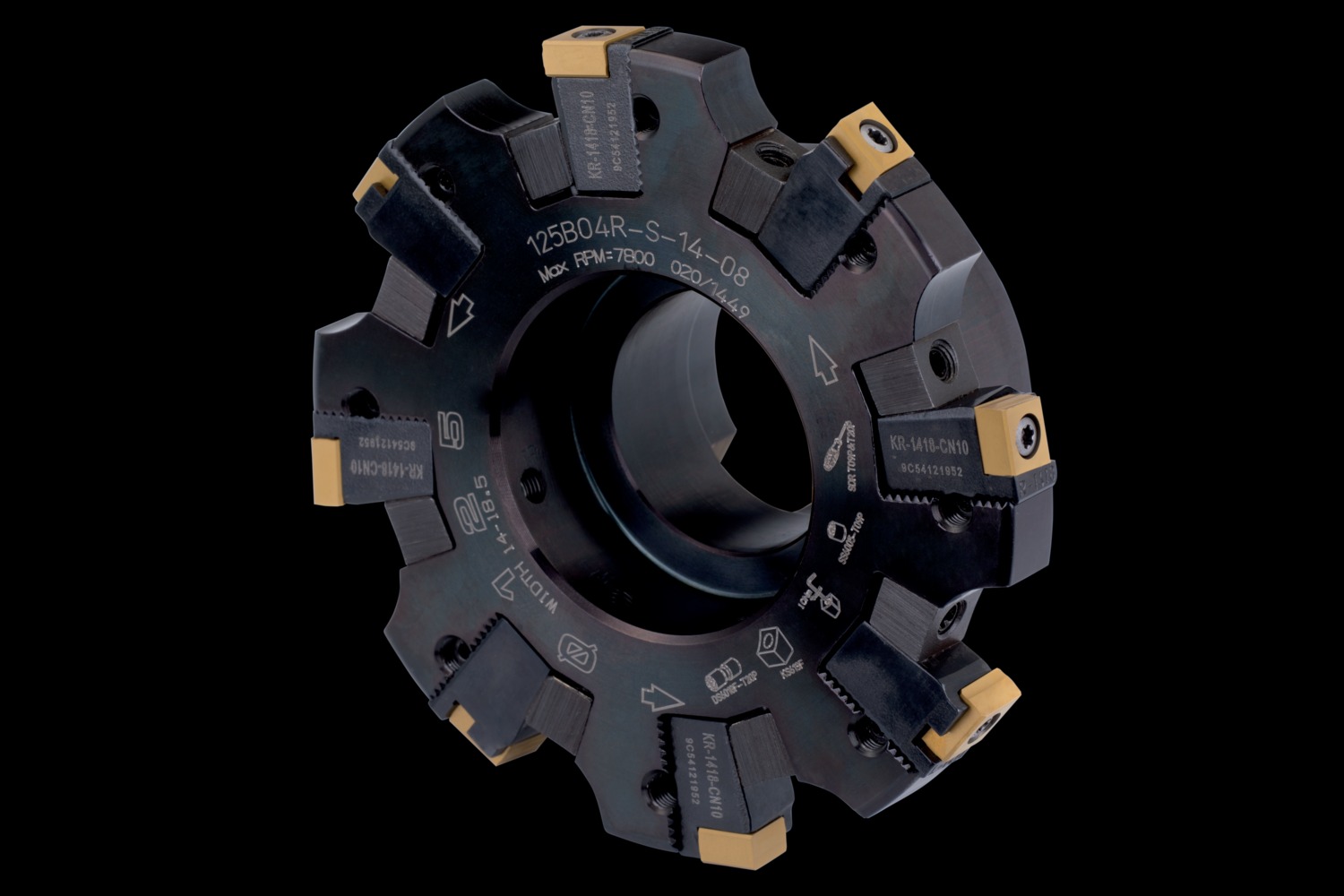

PRAMET 125B04R-S90CN10N18 Milling cutters with clamping by screw

Description: Value
EAN number: 3603602955074
Product number (SAP): 86000062
Ordering code ANSI: 125B04R-S90CN10N18
Gross weight – grams: 1742.9
Milling range CW – Global: 14.0 – 30.5 mm

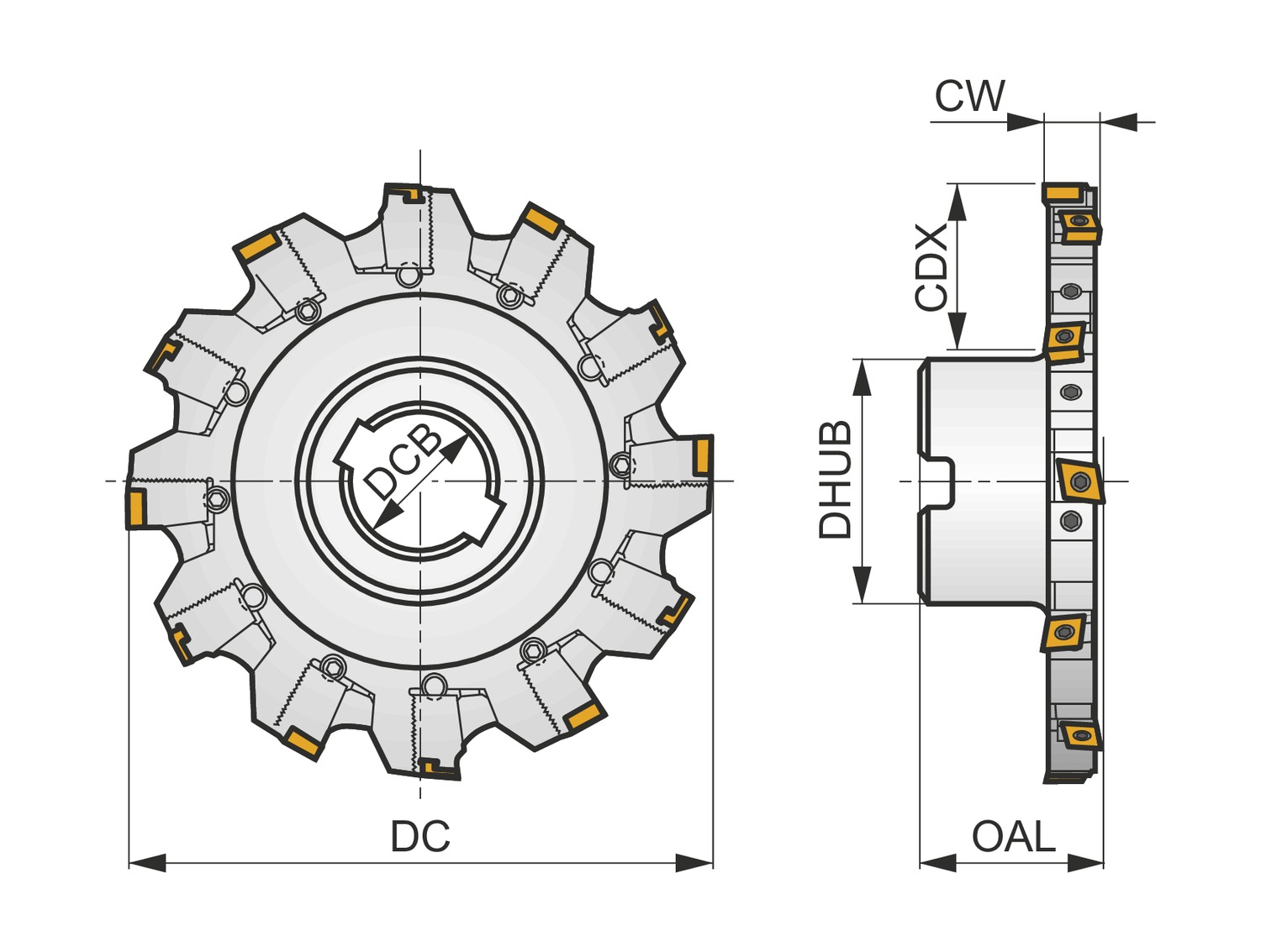

Cutting diameter – millimeter (DC): 125 mm
Overall length – millimeter (OAL): 50 mm
Connection bore diameter – millimeter (DCB): 40 mm
Hub diameter – millimeter (DHUB): 70 mm
Cutting depth maximum – millimeter (CDX): 25 mm
Cutting Width Range – millimeters (CW): 14.0 ÷ 18.5

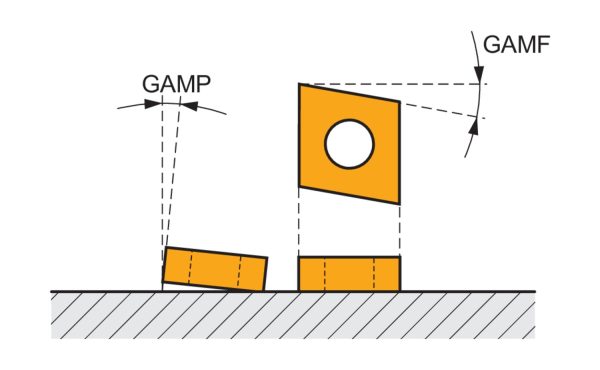

Radial rake angle (GAMF): -10
Axial rake angle (GAMP): 4
Face effective cutting edge count (ZEFF): 4
Peripheral effective cutting edge count (ZEFP): 8
Rotational speed maximum (RPMX): 7800
Net weight – grams: 1650
Cutter Design: S90CN(XN)
Insert index count (NOI): 8
ISO: 125B04R-S90CN10N18
