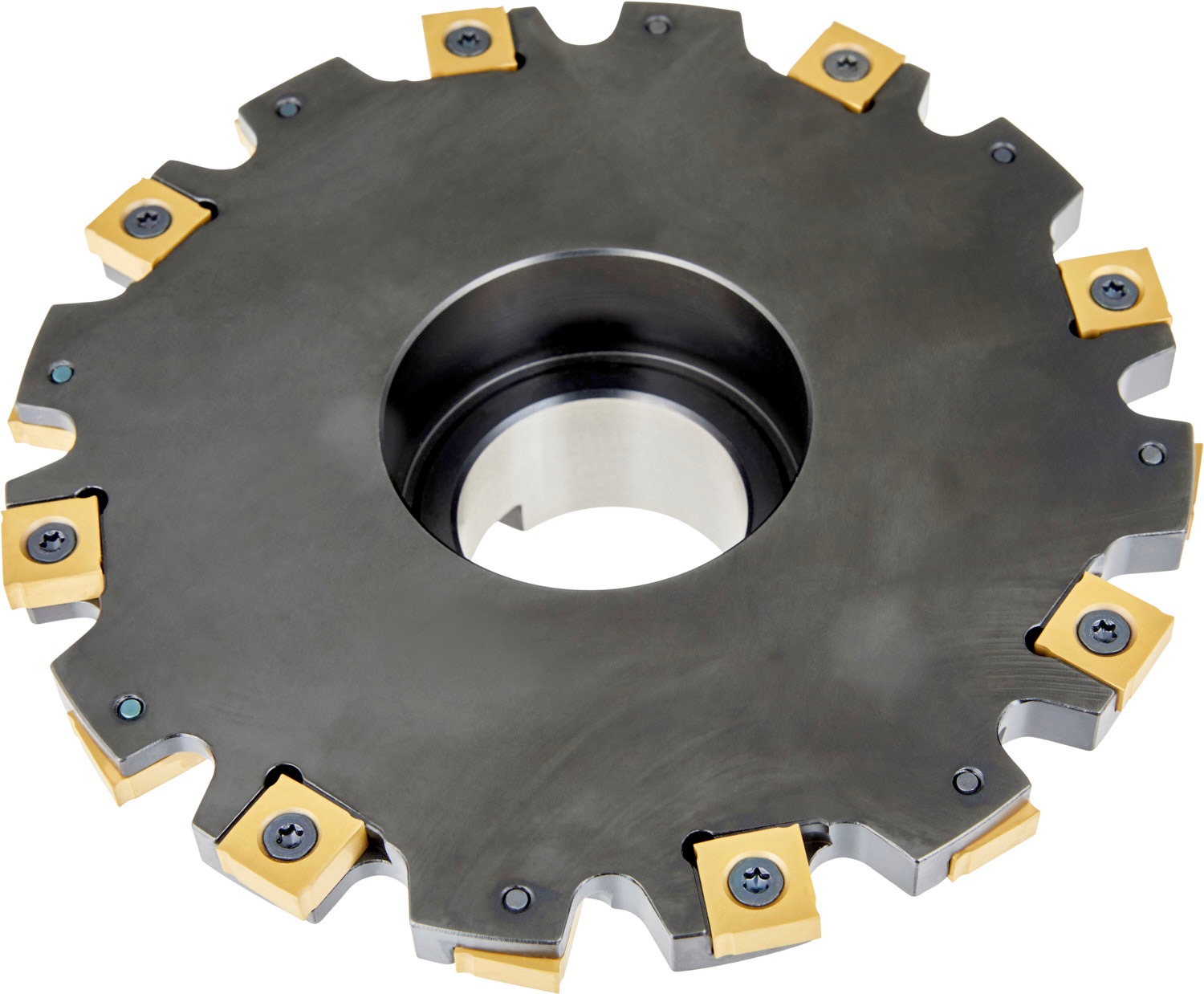

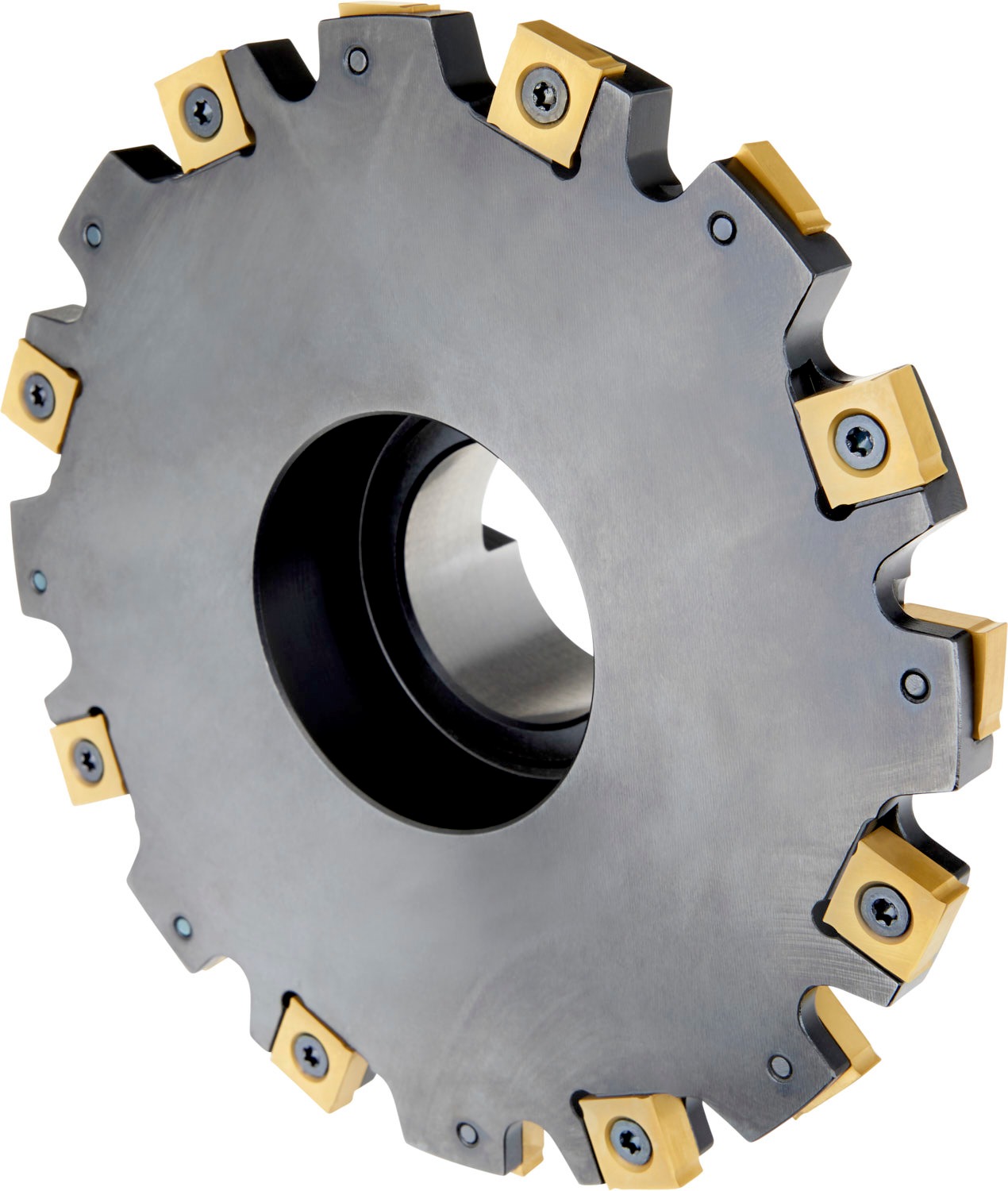

PRAMET 125B06R-S90SN12N6 Milling cutters with clamping by screw

Description: Value
EAN number: 3603602936745
Product number (SAP): 84004711
Ordering code ANSI: 125B06R-S90SN12N6
Gross weight – grams: 1246
Milling range CW – Global: 4.0 – 14.0 mm

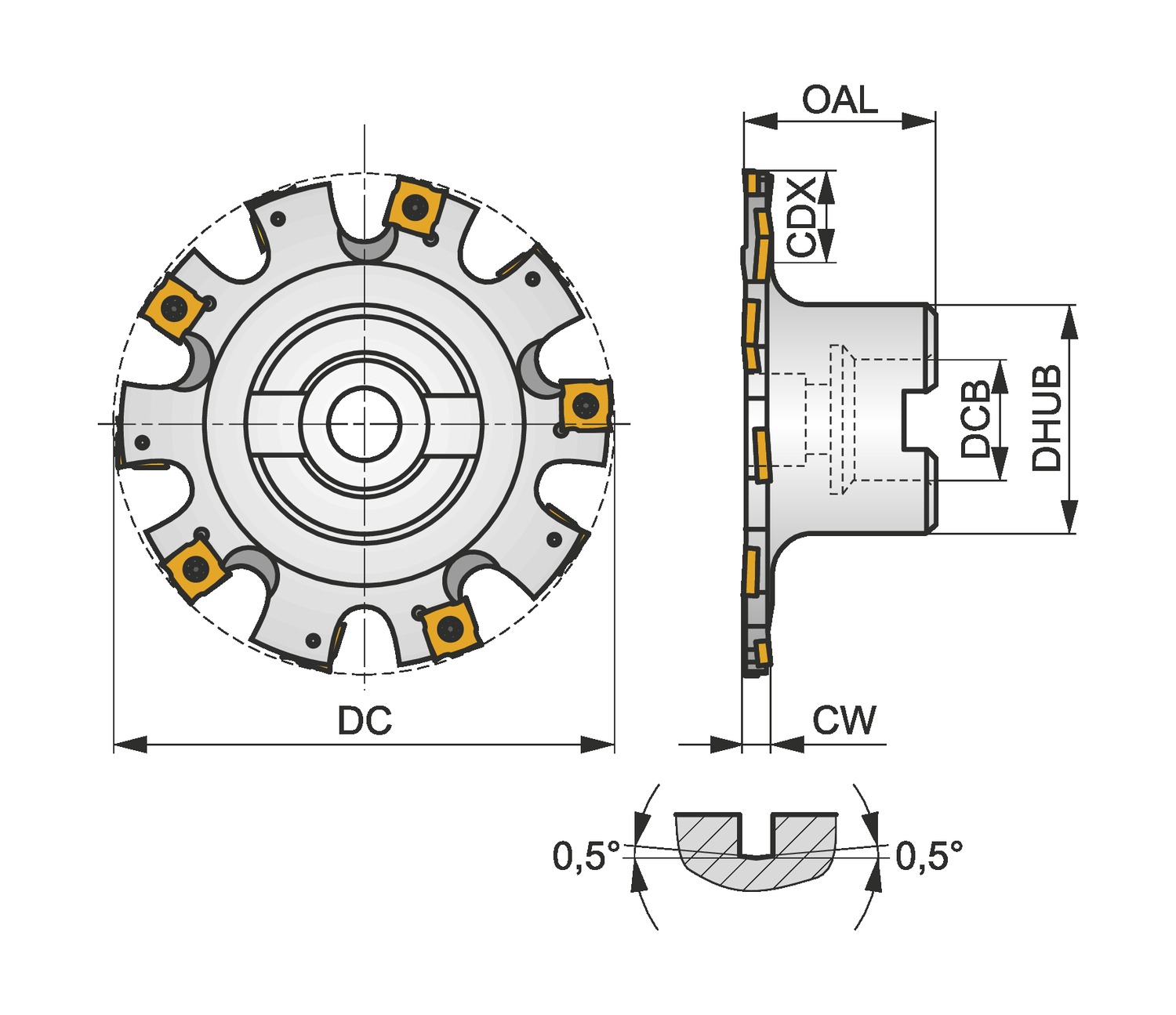

Cutting diameter – millimeter (DC): 125 mm
Overall length – millimeter (OAL): 50 mm
Connection bore diameter – millimeter (DCB): 40 mm
Hub diameter – millimeter (DHUB): 56 mm
Cutting depth maximum – millimeter (CDX): 24 mm
Cutting width – millimeter (CW): 6 mm
Face effective cutting edge count (ZEFF): 6

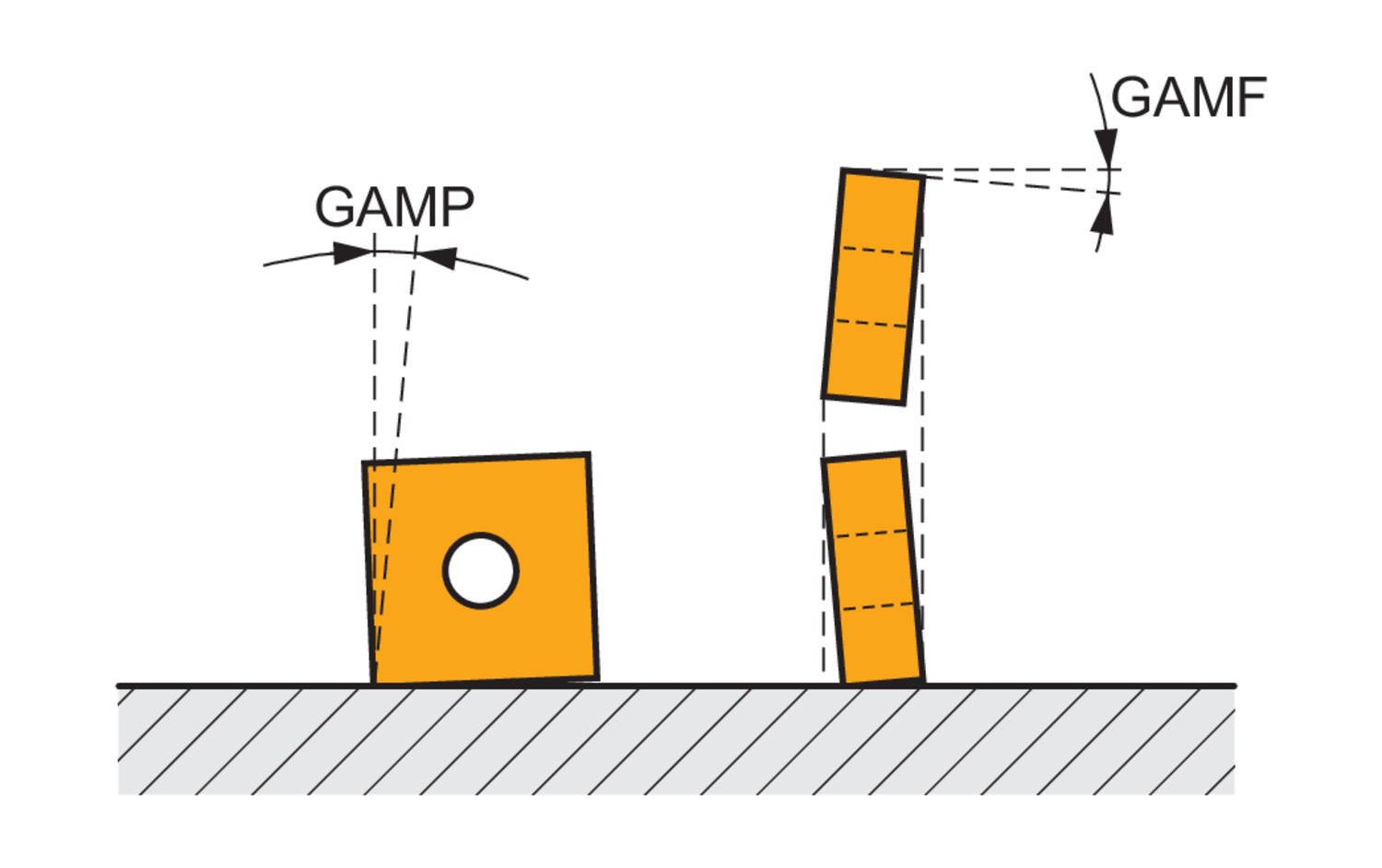

Radial rake angle (GAMF): 2.5
Axial rake angle (GAMP): -0.5
Peripheral effective cutting edge count (ZEFP): 12
Rotational speed maximum (RPMX): 6700
Net weight – grams: 1200
Cutter Design: S90SN
Insert index count (NOI): 12
ISO: 125B06R-S90SN12N6
